| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Optical System Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Fibre Network Unit | Bnad: | HELLOSIGNAL |
|---|---|---|---|
| Cord: | ZC-761XR | Optical Signal Access: | 1*GPON/EPON |
| User Interface: | 4GE+1VOIP+2.4G/5.8G WLAN+1USB+CATV | Interface Parameters: | 4*10/100/1000Mbps Auto Adaptive |
| High Light: | 1VOIP Optical Network Unit,E/GPON Optical Network Unit,CATV Optical Network Unit |
||

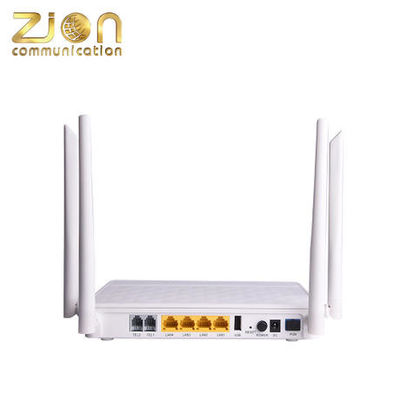

XPON ONU Passive Optical Network Unit GE FE USB VOIP 2.4G 5G WIFI wireless CATV antenna gain
| 761XR ONU | ||||||||
| Product introduction | ||||||||
|
PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs. GPON networks without replacing equipment and firmwar.
|
||||||||
| Product features : | ||||||||
| ● Support EPON/GPON mode and switch mode automatically | ||||||||
| ● GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard | ||||||||
| ● GPON:8 T-CONTs,32 GEM Ports | ||||||||
| ● Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance | ||||||||
| ● Chipset: RealTek Chipset | ||||||||
| ● Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc | ||||||||
| ● Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc | ||||||||
| ● Support PPPoE/ Static IP/ DHCP | ||||||||
| ● Bi-directional FEC | ||||||||
| ● Support IPv4, IPv6 and IPv4/IPv6 | ||||||||
| ● Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering | ||||||||
| ● Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping | ||||||||
| ● Qos supports PQ, WRR, and CAR queue scheduling | ||||||||
| ● Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface,,2T2R external antenna, support multiple SSID Settings | ||||||||
| ● Support DDSN, ALG, DMZ and UPNP | ||||||||
| ● Provide POTS interface, support SIP protocol,POTS integrated circuit test complies GR-909 | ||||||||
| Product Specification : | ||||||||
| Hardware Specifications | ||||||||
| Size(L*W*H) | mm (L) *mm (W) *mm (H) | |||||||
| Optical signal access | 1*GPON/EPON | |||||||
| User interface | 4GE+2VOIP+2.4G/5.8G WLAN+1USB | |||||||
| Indicator light | POWER,PON,LOS,LAN1,LAN2,LAN3,LAN4,TEL1,TEL2,USB,2.4G,5G,WPS, | |||||||
| Button | Power switch Button, Reset Button, WLAN Button, WPS Button | |||||||
| Weight | 300g | |||||||
| Power adapter input | 100V～240V AC,50Hz～60Hz | |||||||
| PowerSupply requirement | 12V DC,1.5A | |||||||
| Power consumption | <10w | |||||||
| Working temperature | -10°C ~ +45°C | |||||||
| Environment humidity | 5% ~ 95% (Non-condensing) | |||||||
| PON Interface | ||||||||
| Module type | SC/UPC | |||||||
| Working wavelength | PON:up 1310nm,down 1490nm | |||||||
| TX Optical power value | 0.5～4dBm | |||||||
| RX Optical power value | -27dBm | |||||||
| Transmission distance | 0～20km | |||||||
| Transmission rate | GPON:Up 1.244Gbps；down 2.488Gbps | |||||||
| EPON:Up 1.244Gbps；down 1.244Gbps | ||||||||
| Ethernet interface | ||||||||
| Interface type | 4* RJ45 | |||||||
| Interface parameters | 4*10/100/1000Mbps auto adaptive Ethernet interfaces | |||||||
| Wireless | ||||||||
| Working mode | IEEE 802.11 b/g/n/AC | |||||||
| Antenna pattern | External 2*2T2R External antenna | |||||||
| Antenna gain | 5dBi | |||||||
| Wireless bandwidth | Support 20MHz/40MHz/80MHz | |||||||
| Interface rate | 2.4G WLAN:Maximum rate 300Mbps 5.8G WLAN:Maximum rate 866Mbps |
|||||||
| SSID | Up to 4 SSID broadcasts are supported | |||||||
| Product Specification : | ||||||||
| POTS interface | ||||||||
| Interface type | 2* RJ11 | |||||||
| Voice agreement | SIP | |||||||
| Codecs | G.711/G.723/G.726/G.729 | |||||||
| Integrated circuit protocol | Gr-909 protocol is applicable | |||||||
| Order Informations: | ||||||||
| Marking | Per customer's request | |||||||
| Package | Per customer's request | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | OEM | |||||||
| Zion Code | Zion Description | |||||||
| 7221000 | ONU GPON/EPON ABBXR-1GE | |||||||
| 7221044 | ONU XPON BCCXR 2GE+1USB+2.4G+5GWIFI | |||||||
| 7221071 | ONU XPON GAAXR 4GE+1USB+2VOIP+2.4G+5GWIFI+CATV | |||||||
| 7221075 | ONU XPON GFBXR 4GE+1USB+1VOIP+2.4G+5GWIFI | |||||||
| 7221162 | ONU GPON FOAGB 1GE+3FE+USB+1VOIP+2.4GWIFI | |||||||
| 7221167 | ONU GPON FBBGM 1GE+3FE+2USB+1VOIP+2.4G+5GWIFI | |||||||
| 7221210 | ONU EPON ABEE 1GE | |||||||
