KNX 1PR 0.8mm Bare Conductor Cable Polyethylene Insulation

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	CE, RoHS, VDE, UL
Model Number:	Flexible Control Cable

Minimum Order Quantity:	10 KM
Packaging Details:	500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
Delivery Time:	25 working days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Conductor:

1/0.8mm Bare Copper

Insulation:

Polyethylene (PE)

Jacket:

Low Smoke Halogen Free (LSHF/LSZH)

Color:

1 Red 2 Black Or Blue

Highlight:

0.8mm bare conductor cable

Polyethylene Insulation bare conductor cable

bare conductor cable 0.8 mm

Product Description

KNX 1PR 0.8mm LSZH Control Cable

SKU: KNX1P08-OE

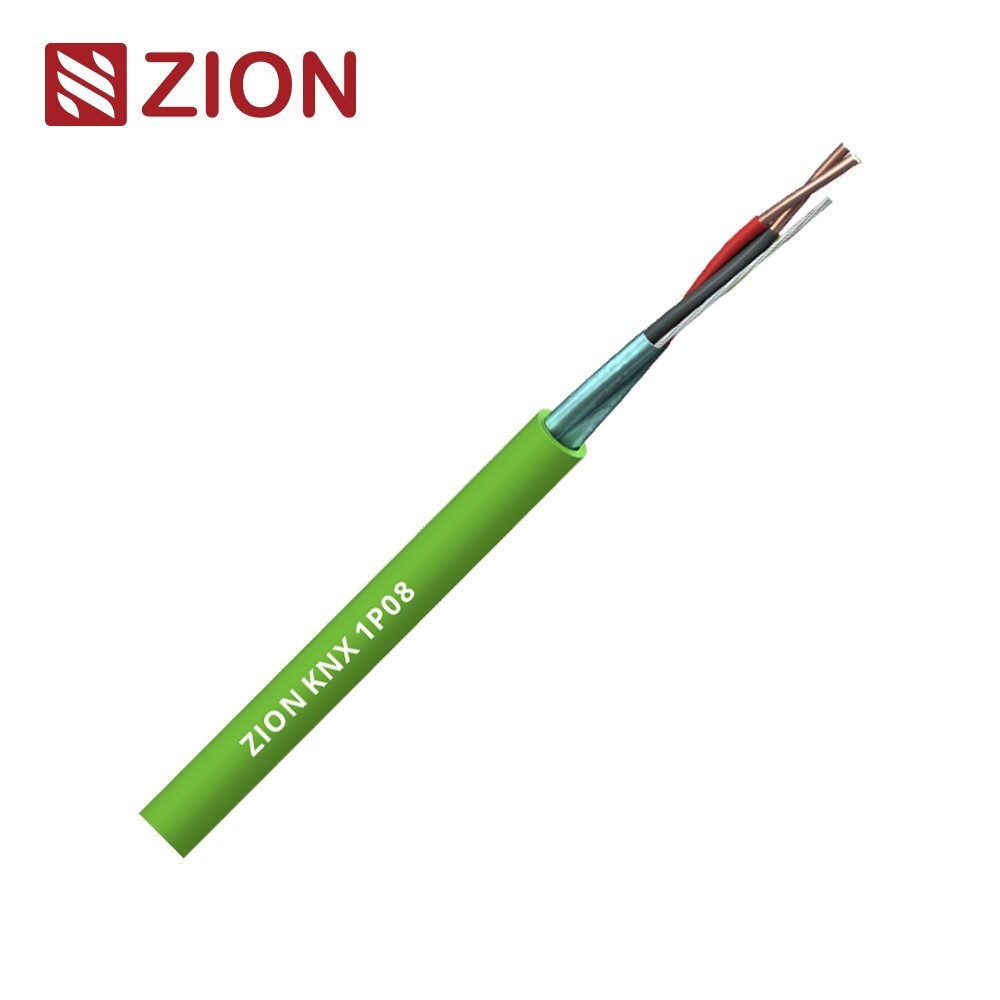

KNX 1PR 0.8mm Bare Conductor Cable Polyethylene Insulation 0

■ Application:

Designed for intelligent building automation systems, this cable is ideal for

Lighting control
Blind/shutter control
Air-conditioning and heating systems
Security system integration

ZION Certified KNX cables ensure seamless communication between devices, enabling smooth system operation, simple scalability, and a smart environment that is comfortable, energy-efficient, and secure.

■ Construction:

Conductor OD & Material :			1/0.8mm Bare Copper
Cross Section:			0.50 mm²
Number of Pairs :			1
Conductor Counts:			2
Insulation Material :			Polyethylene (PE)
Insulation Diameter:			1.40±0.05 mm (Non.Thickness:0.30mm)
Insulation Non.Thickness:			0.30mm
Insulation color:			1 Red 2 Black or Blue
Overall Tape :			Polyester
Drain Wire :			Tinned Copper (STR:7/0.16mm or SOL: 0.4mm)
Overall Screen :			Overall Aluminium Foil (＞110% Coverage)
Sheath Material :			Low Smoke Halogen Free (LSHF/LSZH)
Sheath Diameter:			5.50±0.30 mm
Sheath Non.Thickness:			1.20 mm
Sheath Colour :			Green

■ Cross Section:

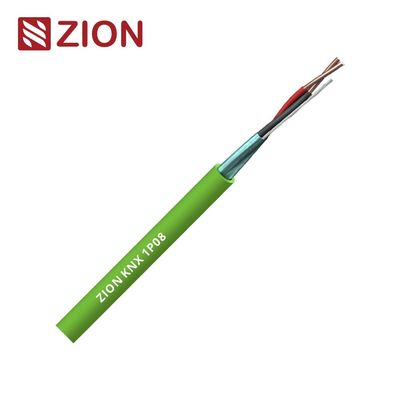

KNX 1PR 0.8mm Bare Conductor Cable Polyethylene Insulation 1

KNX 1PR 0.8mm Bare Conductor Cable Polyethylene Insulation 2

■ Electrical Characteristics:

Nominal Conductor Resistance :	< 38.5 Ω/km
Insulation Resistance :	> 200MΩ.M
Capacitance (Cond. to Cond.)	50 pF/m
Voltage Rating :	300V
Test Voltage :	4kV for 1 minutes

■ Physical Characteristics:

Overall Diameter :	5.5 ± 0.3mm
Operating Temperature Rating :	-20°C to +70°C
Min.Bend Radius During Installation:	55 mm
Min.Setting Radius:	27.5 mm

■ Standards:

Flame Retardant :	BS EN 60332-1-2
Low Smoke Generation :	BS EN 61034-2
Halogen Gas Emission :	BS EN 60754-1&2
RoHS Compliant :	Yes
CE Compliant :	LVD (2014/35/EU), CPR (305/2011)
CPR Classification :	Eca (EN50575:2014+A1:2016)

■ Order Information:

Marking on Sheath	ZION NO.KNX1P08 KNX CABLE LSZH Eca ×××M
Inner Package	Wooden Spool
Outer Package	Carton/Color Box, Pallet (or Per customer's request)
KNX2P08-OE100	100M/Wooden Spool
KNX2P08-OE300	300M/Wooden Spool
KNX2P08-OE500	500M/Wooden Spool
KNX2P08-OE1000	1000M/Wooden Spool
Delivery time	Normally 25 days after received the deposit.
Brand	ZION OR OEM
