Feeder Cable Adss Tension Clamp 4 Way For 2x(4.8–7)+2x(15–22)Mm Cables

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	CE, ROHS, VDE, UL
Model Number:	FTTH stainless steel flat cable drop clamp

Minimum Order Quantity:	500
Packaging Details:	Carton
Delivery Time:	Normally 20 working days
Payment Terms:	T/T,L/C
Supply Ability:	500000pcs / Month

Get Best Price Contact Now

Detail Information

Product Material:	Stainless Steel 304	Metal Color:	Natural
Block Material:	PP	Block Color:	Black
Rubber Material:	EPDM	Rubber Color:	Black
Highlight:	4 way feeder cable clamp , adss cable accessories , adss fittings

Product Description

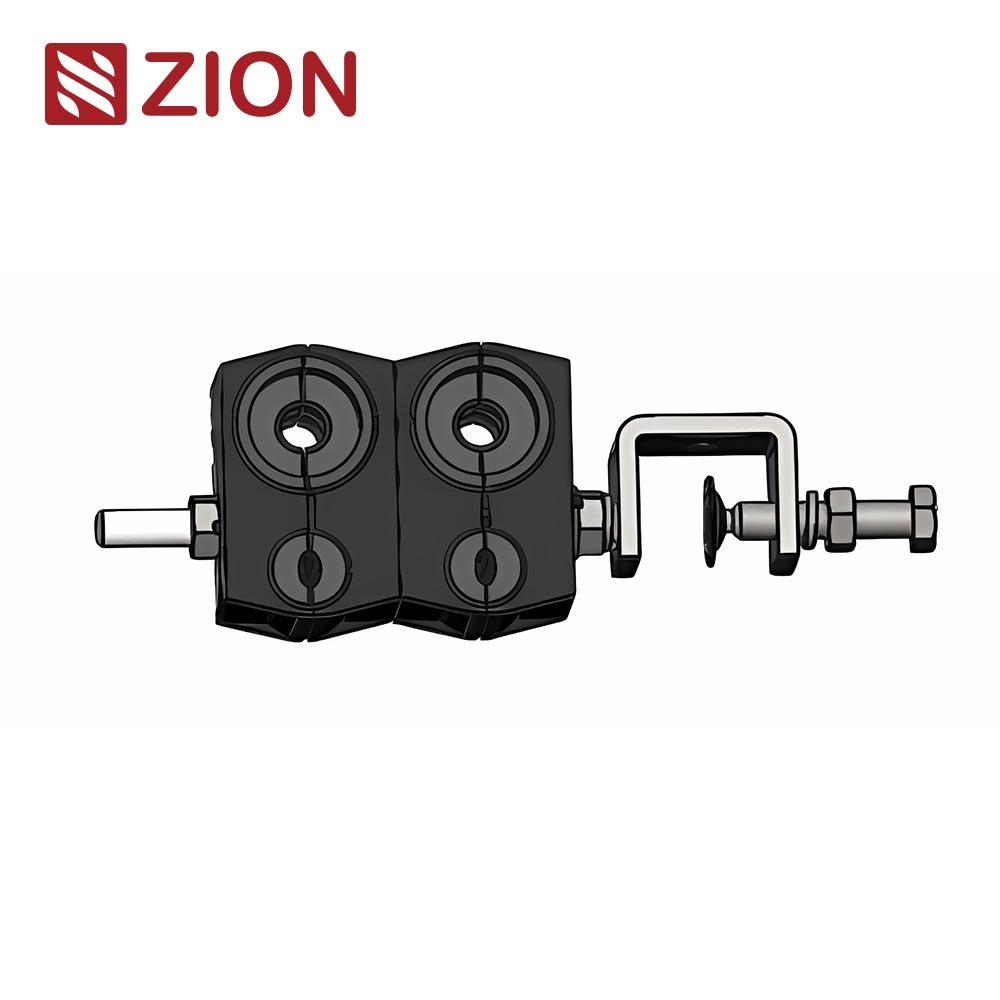

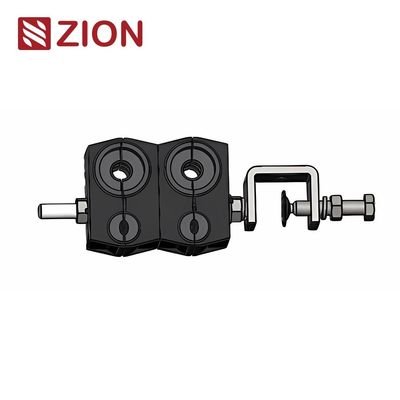

Feeder Cable Clamp, for 2x(4.8-7)+2x(15-22)mm Cable, 4Way

SKU: ZFOPCCDM 2×7+2×22

Feeder Cable Adss Tension Clamp 4 Way For 2x(4.8–7)+2x(15–22)Mm Cables 0

■ Features

Easy and quick installation

Robust design & material for outdoor use

Operation Temperature -40~85 ℃

Suitable for cable type (4.8-7)+(15-22)mm

■ General Specifications

Height	36 mm \| 1.42 in
Width	61 mm \| 2.40 in
Length	195 mm \| 7.68 in
Thread rod Length	120.0 mm \| 4.72 in
Compatible Power cable OD	15-22 mm \| 0.59-0.86 in
Compatible Optic Fiber cable OD	4.8-7 mm \| 0.18-0.28 in

Operating temperature	-40°C ~ 85°C
UV Resistance	≥720 Hours,base on ISO 4892.3-1994
Environmental Strength Cpability	Double Cable Weight

ISO 9001:2015	Designed,manufactured and/or distributed under this quality management system
RoHS	Compliant
