FDC FTTH Optic Flat Drop Cable Central Tube 3.0x6.0 LSZH

FDC FTTH Drop Fiber Optic Cables Flat Drop Cable Central Tube 3.0*6.0 LSZH

FDC FTTH Drop Fiber Optic Cables Flat Drop Cable Central Tube 3.0*6.0 LSZH

Introduction

The typical GJYXFDCH / GJYXDCH Self-supporting drop optical cable includes central optical Ribbon fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steelwire),Finally a LSZH sheath is extruded outside.

Features

Lighting resistance
Non-metallic structure
Duct installation and aerial installation together with tension strandwire
Suitable for FTTH application as drop cable

Product Series

• GJXFH: FRP Strength Member+2.0*3.0LSZH
• GJXH: Steel Wire Strength Member+2.0*3.0 LSZH
• GJXH-Small Diamter: Steel Wire Strength Member+1.6*2.0 LSZH
• GJX(F)DH: Ribbon Fibers+2.0*4.0LSZH
• GJYX(F)CH: Self-Supporting Wires+2.0*5.2LSZH
• GJYX(F)CH-Small: Self-Supporting Wires+1.7*3.8LSZH
• GJYXFDCH(GJYXDCH): Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH
• GYFJU: Aramid Yarn Strength Round Sheath LSZH
• GYGXY: Central Tube Glass Yarns armor Round Sheath HDPE
• FDC: Flat Drop Cable+Central Tube+3.0*6.0 LSZH
• ASU: Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE
• GYXY-8S: Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE
• GYFXBY: Flat Drop Cable+Central Tube+4.6*8.1 LSZH

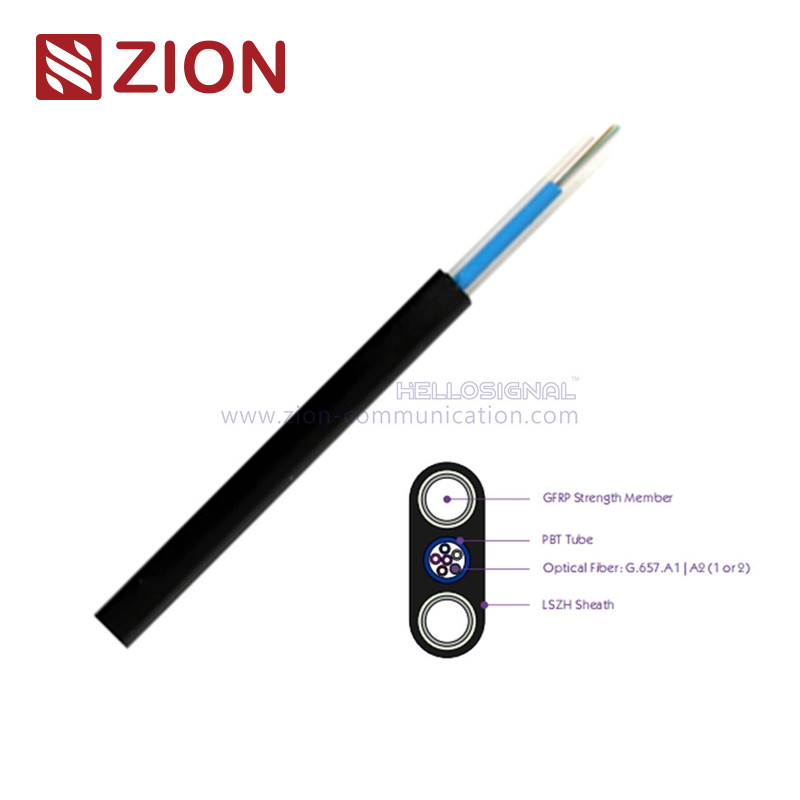

Cross Section

Technical Characteristics

FDC-4-6F Diametermm: 3.0*6.0(1.5TUBE)

FDC-4-6F Weight(kg/km): 25

FDC-4-6F Tensile strengthLong/short term(N):300/600

FDC-4-6F CrushLong/short term(N/100mm): 300/600

FDC-4-6F Bending RadiusStatic/Dynamic: 15/30

FDC-12-24F Diametermm: 4.0*7.0(2.5Tube)

FDC-12-24F Weight(kg/km): 36

FDC-12-24F Tensile strengthLong/short term(N): 300/600

FDC-12-24F CrushLong/short term(N/100mm): 300/600

FDC-12-24F Bending RadiusStatic/Dynamic: 15/30

Environmental Characteristics

Transport/storage temperature: -20℃~70℃

Delivery Length

Standard length:1000m;Other length availabe
