GJXFDH / GJXDH Indoor FTTH Drop Cable Ribbon Fibers 2.0x4.0 LSZH

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication OR OEM
Certification: CE, ROHS, VDE, UL
Model Number: Fiber Optic Cable GJXFDH / GJXDH
Minimum Order Quantity: 100km
Packaging Details: 2000M / Wooden Spool / Carton
Delivery Time: Normally 20 working days
Payment Terms: T/T, L/C
Supply Ability: 1500KM / Month
Detail Information
Jacket: LSZH Package: Wooden Spool ,Φ280*280mm
GJXFH: FRP Strength Member+2.0*3.0LSZH GJXH: Steel Wire Strength Member+2.0*3.0 LSZH
GJXH-Small Diamter: Steel Wire Strength Member+1.6*2.0 LSZH GJX(F)DH: Ribbon Fibers+2.0*4.0LSZH
High Light:

FTTH Drop Cable Ribbon Fibers

,

LSZH Indoor FTTH Drop Cable


Product Description

GJXFDH / GJXDH Factory Direct Price Indoor FTTH Drop Cable Ribbon Fibers 2.0*4.0 LSZH





GJXFDH FTTH Drop Fiber Optic Cables Ribbon Fibers 2.0*4.0LSZH
Introduction:
The typical GJXFDH bow-type drop optical cable
includes central optical fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides
a LSZH sheath is extruded outside.

Features:
Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety

Product Series:
GJXFH FRP Strength Member+2.0*3.0LSZH
GJXH Steel Wire Strength Member+2.0*3.0 LSZH
GJXH-Small Diamter Steel Wire Strength Member+1.6*2.0 LSZH
GJX(F)DH Ribbon Fibers+2.0*4.0LSZH
GJYX(F)CH Self-Supporting Wires+2.0*5.2LSZH
GJYX(F)CH-Small Self-Supporting Wires+1.7*3.8LSZH
GJYXFDCH(GJYXDCH) Self-Supporting Wires+Ribbon Fibers+1.7*3.8LSZH
GYFJU Aramid Yarn Strength Round Sheath LSZH
GYGXY Central Tube Glass Yarns armor Round Sheath HDPE
FDC Flat Drop Cable+Central Tube+3.0*6.0 LSZH
ASU Self-Supporting FRP Strength+Tube+7.0/8.0 HDPE
GYXY-8S Figure-8 Self-supporting+Aramid Yarns+Tubes+4.6*8.8HDPE
GYFXBY Flat Drop Cable+Central Tube+4.6*8.1 LSZH

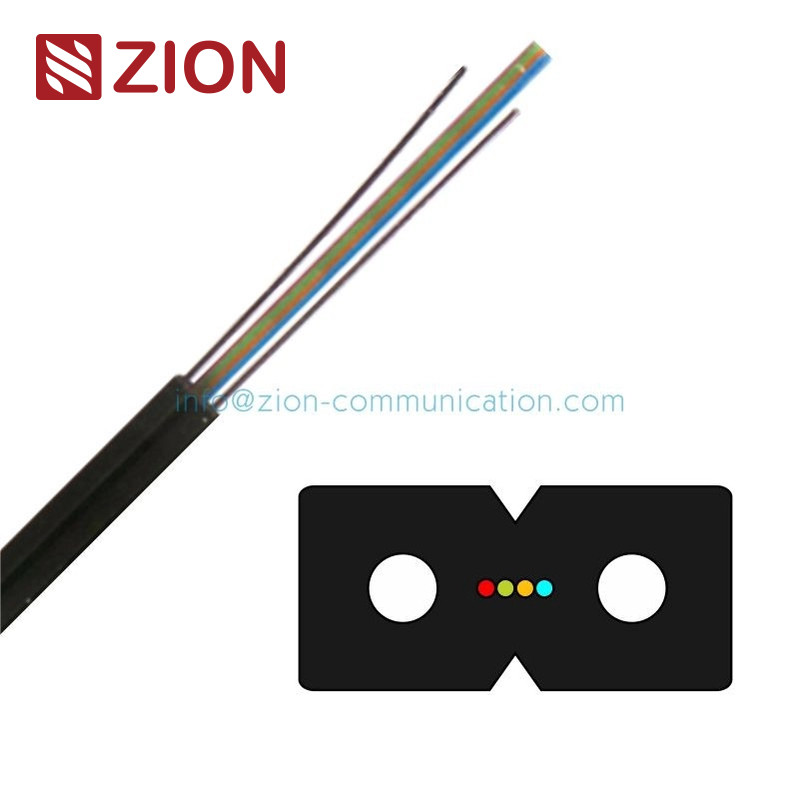

Cross Section:
GJXFDH / GJXDH Indoor FTTH Drop Cable Ribbon Fibers 2.0x4.0 LSZH 0

Technical Characteristics:
Type Diameter
mm
Weight
(kg/km)
Tensile strength
Long/short term
(N)
Crush
Long/short term
(N/100mm)
Bending Radius
Static/Dynamic
GJXFDH-4 2.0*4.0 11.8 40/80 500/1000 15/30
GJXDH-4 2.0*4.0 15 100/200 1000/2200 15/30
Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:
Transport/storage temperature: -20~70

Delivery Length:
Standard length:1000m;Other length availabe
