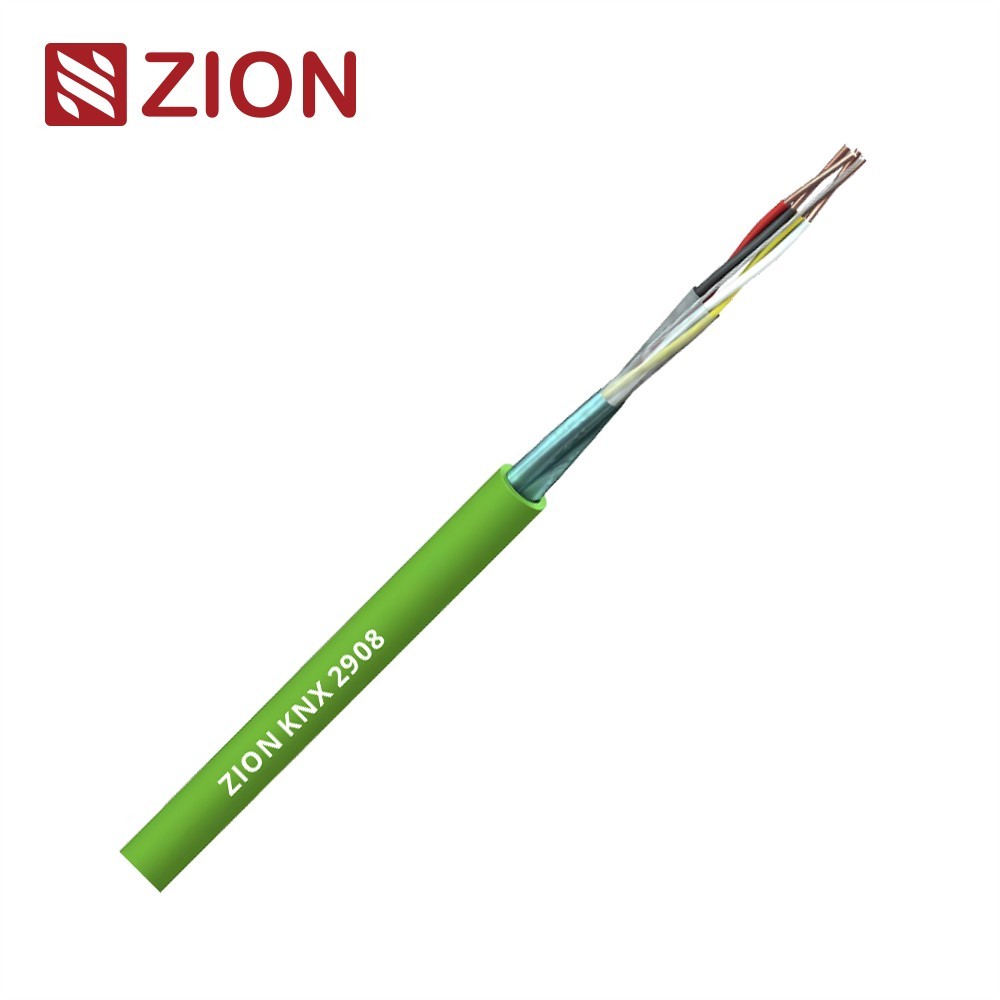

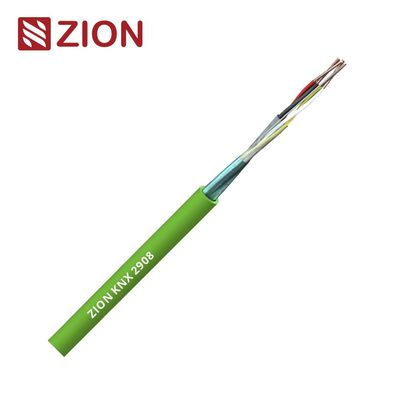

KNX 2PR 0.8mm Bare Copper Cable PE Insulation Foil Shielded LSZH Sheath

Cross Section:

0.50 mm²

Number of Pairs :

2

Conductor Counts:

4

Insulation Material :

Polyethylene (PE)

Insulation Diameter:

1.40±0.05 mm (Non.Thickness:0.30mm)

Insulation Non.Thickness:

0.30mm

Insulation color:

1 Red  2 Black or Blue  3 Yellow  4 White

Overall Tape :

Polyester

Drain Wire :

Tinned Copper (STR:7/0.16mm or SOL: 0.4mm)

Overall Screen :

Overall Aluminium Foil (＞110% Coverage)

Sheath Material :

Low Smoke Halogen Free (LSHF/LSZH)

Sheath Diameter:

6.10±0.30 mm

Sheath Non.Thickness:

1.20 mm

Sheath Colour :

Green

Insulation Resistance :

> 200MΩ.M

Capacitance (Cond. to Cond.)

50 pF/m

Voltage Rating :

300V

Test Voltage :

4kV for 1 minutes

Operating Temperature Rating :

-20°C to +70°C

Min.Bend Radius During Installation:

61 mm

Min.Setting Radius:

30 mm

Low Smoke Generation :

 BS EN 61034-2

Halogen Gas Emission :

 BS EN 60754-1&2

RoHS Compliant :

 Yes

CE Compliant :

 LVD (2014/35/EU), CPR (305/2011)

CPR Classification  :

 Eca (EN50575:2014+A1:2016)

Inner Package

Wooden Spool

Outer Package

Carton/Color Box, Pallet (or Per customer's request)

KNX2P08-OE100

100M/Wooden Spool

KNX2P08-OE300

300M/Wooden Spool

KNX2P08-OE500

500M/Wooden Spool

KNX2P08-OE1000

1000M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

ZION OR OEM
