SC UPC Fast Assembly Fiber Optic Fast Connector with High Installation Success Rate and Reusable Design

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Highlight:

sc fast connector

SC UPC Fast Assembly Connector

SC UPC fast connect fiber connectors

Product Description

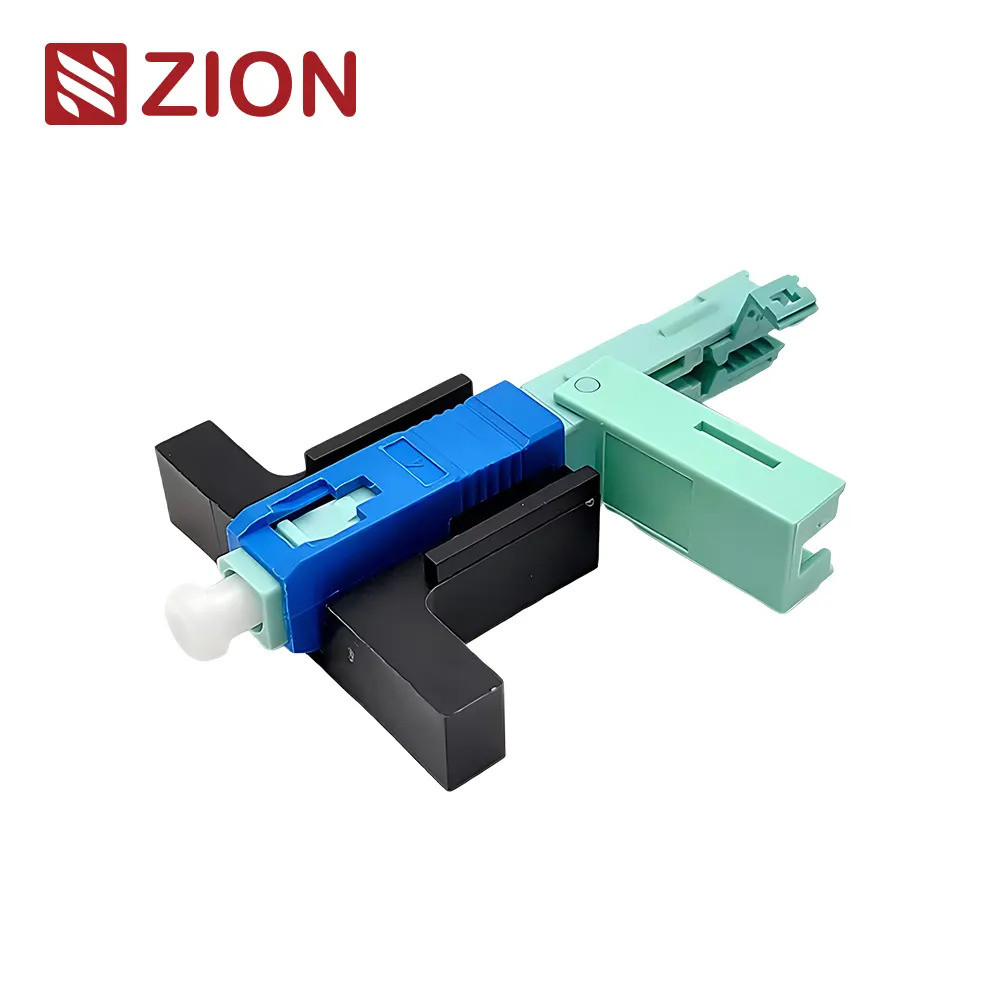

ZCSC13-U53 SC UPC Fast Assembly Connector In Outdoor Fiber Terminal End

Product Identification

Zion Code	Zion Description
7234041	ZCSC13-U53 SC UPC Fast Assembly Connector

Key Features

High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original crimping design with injected glue and grinding - no consumables required during installation
Embedded fiber optic structure for enhanced performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Convenient and portable for field use

Product Overview

ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. These connectors feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice for fiber optic connectivity solutions.

Technical Specifications

Parameter	ZCSC13-U53
Length	53mm
Ferrules	SC-SM/UPC
Insertion Loss (dB)	AVG≤0.3dB MAX≤0.5dB
Return Loss (dB)	UPC≥50dB / APC≥55dB
Operating Temperature (℃)	-20~+75℃
Storage Temperature (℃)	-40~+85℃
Mating Times	500 Times
Cable Diameter	Drop cable: 2.03.0mm / 2.05.0mm

Applications

FTTH & Outdoor Fiber Terminal End
Harsh Environment Installations
FTTA BBU RRU Systems
Data Video Transmission
Optical Fiber Access of Mobile Base Station

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.

Customized Logo Implementation
Label/PE Bag/Carton Design Services
