Detail Information

Model:	Free Pressure Toolless Plug	Bnad:	Zion Communication
Color:	Black,Grey	Loading Capacity:	60kg

Product Description

Copper Connectivity / RJ45 Plug / Engineer Selection

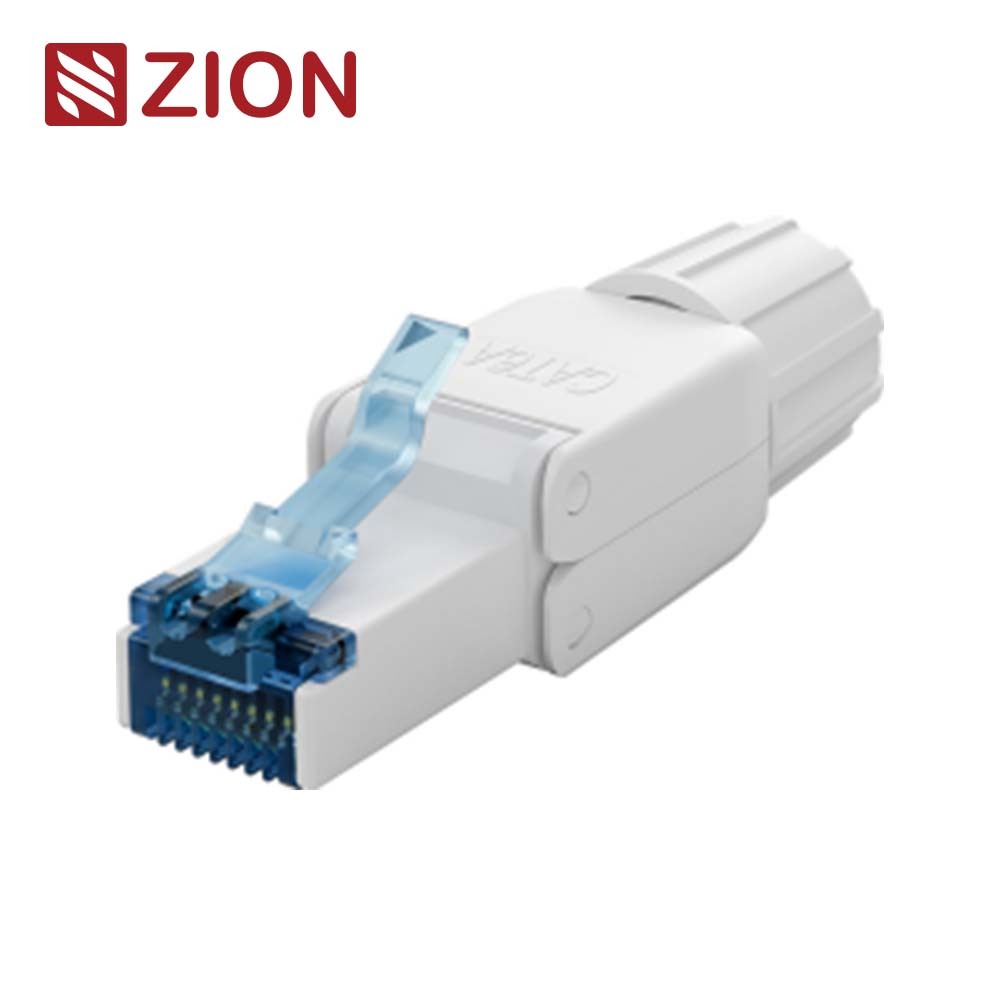

CAT6A RJ45 UTP Toolless Plug

The ZCTPU6A-B2 is a CAT6A RJ45 unshielded toolless plug designed for fast field termination, supporting both solid and stranded cable in 22AWG, 23AWG, and 24AWG ranges for structured copper cabling projects.

Structured Cabling Installers
Field Engineers
Telecom Contractors
IT Integrators
OEM Buyers
Procurement Teams

Quick Takeaway

Toolless CAT6A unshielded RJ45 plug for faster field assembly.
Compatible with both solid and stranded cable in 22AWG, 23AWG, and 24AWG sizes.
Best suited to projects that need flexible on-site termination without standard crimp-tool workflow.

Request Datasheet / Sample
See Decision Rules

Contents

Overview
Key Features
Technical Specifications
Construction / Materials
Applications
Decision Rules / Engineer’s Shortcut
Selection Guide
Installation Guide
FAQ
Conclusion

Reserved Image Module

Add main product image, exploded installation view, wiring sequence diagram, and application photo here.

Reserved Video Module

Suitable for toolless termination demo, T568 wiring guide, field installation video, or factory overview.

■1) Overview

The CAT6A RJ45 UTP Toolless Plug is a field-termination connector designed for projects that need quick, repeatable assembly without traditional crimp-tool workflow. It is positioned for structured copper installations where technicians need to terminate cables directly on site while maintaining CAT6A-level permanent-link alignment.

This model is unshielded and supports both solid and stranded cable conductors in 22AWG, 23AWG, and 24AWG sizes. From a project perspective, that combination makes it useful for installers handling different cable constructions across commercial LAN, telecom, and building-network deployments.

Field reality

Toolless plugs can reduce on-site assembly time, but the real project benefit depends on matching the plug to cable OD, conductor type, wiring standard, and installer discipline during wire seating and closure.

■2) Key Features

The ZCTPU6A-B2 is built around speed, compatibility, and easier field handling. Its toolless structure and broad conductor support make it more flexible for installers working in varied on-site conditions.

Feature	What It Means	Project Benefit
Toolless Design	No standard crimp-tool assembly workflow	Speeds up field termination and reduces tool dependency
CAT6A UTP Structure	Unshielded CAT6A RJ45 plug format	Fits UTP copper installations requiring CAT6A performance positioning
Solid and Stranded Cable Support	Matches both conductor constructions	Improves field flexibility across different cable types
22/23/24AWG Compatibility	Supports common LAN conductor sizes	Reduces model-switching complexity in purchasing
T568A / T568B Wiring Support	Wiring sequence shown directly in the product sheet	Makes field termination more intuitive and repeatable
PCB + IDC Internal Layout	Internal contact and wire-seating structure supports signal alignment	Helps improve termination consistency
RoHS / REACH Compliant	Compliance statement included	Useful for procurement and project documentation
White Housing	Standard color option	Supports consistent appearance in structured installs

■3) Technical Specifications

Parameter	Specification
Product Name	RJ45 UTP CAT6A Toolless Plug
Model	ZCTPU6A-B2
Related Product Name in Sheet	RJ45 UTP CAT6A Toolless Plug (ZC-G40U-C6A-B2)
Type	CAT6A RJ45 unshielded toolless plug
Color	White
Compliance	RoHS, REACH compliant
Cable Type Support	Solid and stranded
Cable AWG Range	22AWG / 23AWG / 24AWG
Contact Resistance	20m ohm
Insulation Resistance	<= 500M ohm @ 100 V DC
Withstand Voltage	DC1000V AC700V RMS 60HZ, 1MIN
Permanent Link	CAT6A permanent link: conform to ANSI/TIA/EIA 568B.2-10
Storage Temperature	-40° / +70°
Operation Temperature	-10° / +60°
Plastic Material	New PC
Gold Pins	Phosphor bronze, gold plating 3u'' or 50u''
Terminal Pins	Phosphor bronze, zin plating
RJ45 Contact Life	750 times min
IDC Terminal Life	250 times min

Key takeaway

Broad conductor support is a major practical advantage for mixed field-cable environments.

Toolless structure can improve installation speed when technicians follow the wiring guide carefully.

3u'' or 50u'' contact options allow alignment with different project quality or lifecycle expectations.

■4) Construction / Materials

The plug uses a New PC plastic housing combined with phosphor bronze contact elements and an internal IDC/PCB-oriented structure. This configuration is designed to support field termination consistency while keeping the product compact and suitable for direct RJ45 equipment connection.

Construction Element	Specification	Practical Meaning
Housing material	New PC	Supports durable enclosure structure for field use
Gold pins	Phosphor bronze, gold plating 3u'' or 50u''	Helps align contact-grade expectation to project requirement
Terminal pins	Phosphor bronze, zin plating	Supports internal conductor termination structure
RJ45 interface lifecycle	750 times minimum	Useful for service-life planning in frequently repatched environments
IDC termination lifecycle	250 times minimum	Relevant to retermination tolerance and service maintenance

Practical rule

For field-installed toolless plugs, conductor seating accuracy matters more than speed alone. The installer should match the correct wiring sequence and fully press the housing until the wire enters the IDC pin chase.

■5) Applications

The ZCTPU6A-B2 is suitable for field RJ45 terminations where technicians need to assemble connectors directly on site, especially in structured copper LAN and telecom environments using unshielded CAT6A-level plug architecture.

Application Scenario	Why This Plug Fits	What to Verify Before Approval
On-site LAN cable termination	Toolless design improves assembly convenience	Cable AWG and conductor type match
Field service or repair work	Useful where technicians need quick replacement or retermination	Correct T568A/T568B sequence and closure quality
Commercial building copper cabling	Broad AWG support helps standardize across projects	Cable OD and space around connector head
OEM or contractor bulk purchase	Clear technical and environmental data support specification matching	Required contact plating and compliance needs
Equipment-side direct network connection	Product sheet shows compatibility with RJ45 network ports	Plug body space and bend clearance at device side

■6) Decision Rules / Engineer’s Shortcut

The fastest correct selection starts with four checks: is the system unshielded, is a toolless field-termination workflow preferred, does the cable fall within 22–24AWG, and does the installer accept IDC seating rather than standard crimping? If yes, this plug is usually a strong fit.

Decision Point	Choose This Plug When	Do Not Choose It When	Alternative Direction	Cost / Risk / Maintainability Impact
Shielding strategy	The project uses UTP cabling and does not require shielded plug continuity	The system is shielded and needs matched shielded connectors	Use a shielded RJ45 plug	Correct match avoids grounding and EMC inconsistency
Termination workflow	The project prefers toolless on-site assembly	The team prefers conventional crimp-tool plug workflow	Use a standard crimp-type plug	Proper workflow match reduces installation error
Cable conductor compatibility	Cable is solid or stranded in 22AWG, 23AWG, or 24AWG	Cable falls outside the stated conductor range	Select a plug matched to the actual cable type	Avoids fitment and contact reliability issues
Performance expectation	CAT6A permanent-link alignment is acceptable for the application	The project spec requires different or additional performance claims	Verify specification alignment before ordering	Prevents submittal and acceptance mismatch
Contact specification	Standard 3u'' plating is acceptable or 50u'' is defined early	The project has undefined contact-grade expectations	Clarify plating requirement before RFQ release	Reduces procurement and quality disputes
Installer readiness	The team can follow the six-step installation sequence reliably	The project prefers simpler familiar workflow for all installers	Use the connector type most aligned with field skill level	Right selection improves consistency and lowers rework

Practical rule

Choose this model when the project uses UTP cabling, the conductor range is 22–24AWG, and field technicians benefit from a toolless IDC-style plug rather than a conventional crimp plug.

■7) Selection Guide

A correct selection should evaluate conductor type, AWG compatibility, shielding requirement, field workflow, and expected lifecycle. That prevents a technically acceptable plug from becoming inconvenient or unreliable in the actual installation environment.

Selection Factor	Question to Ask	Recommendation
Cable type	Is the project using solid, stranded, or mixed cable types?	Use this model when the site needs one plug supporting both
Conductor size	Does the cable stay within 22AWG, 23AWG, or 24AWG?	Verify cable spec before bulk purchase
Shielding requirement	Is the structured cabling system UTP or shielded?	Choose this only when unshielded design aligns with the whole system
Installation workflow	Will the project benefit more from toolless assembly than from standard crimping?	Use toolless when field speed and repeatability matter
Contact requirement	Is standard 3u'' enough, or is 50u'' preferred?	Lock the plating requirement before order release
Maintenance expectation	How often will plugs be repatched or reterminated?	Check RJ45 and IDC life data against service expectations

Dimension	Value	Why It Matters
Overall length	47.40 mm	Useful for device-side clearance planning
Front width reference	14.4 mm	Relevant to connector-space awareness
Front height reference	11.60 mm	Helps assess fit in tight equipment ports
Cable entry diameter references	Ø13.97 / Ø8.50 shown	Useful for understanding strain-relief and cable-entry geometry

■8) Installation Guide

The product sheet includes a six-step instruction manual. This is useful for field teams because installation consistency has a direct impact on termination reliability and testing results.

Step	Action	Installer Focus
1	Take off the cable jacket by tool about 2 cm	Avoid damaging conductor insulation
2	Put cable into IDC according terminal T568	Follow the correct T568A or T568B sequence
3	Cut away the extra wires	Keep termination neat and controlled
4	To insert IDC into PCB	Make sure the assembly seats correctly
5	Press down both side plastic housing until the wire enters into the IDC pin chase	Ensure full closure and wire seating
6	The finished product	Inspect before testing or deployment

■9) FAQ

1. What is the main advantage of this toolless plug?

Its main advantage is faster field termination without standard crimp-tool workflow, while still supporting CAT6A unshielded application positioning.

2. What cable types can it match?

It is stated to match both solid and stranded cable in 22AWG, 23AWG, and 24AWG sizes.

3. Is this plug shielded or unshielded?

It is an unshielded CAT6A RJ45 toolless plug, so it should be matched to UTP system design.

4. Can the contact plating be customized?

Yes. The gold pins are specified as 3u'' or 50u'' options.

5. What wiring sequence should installers follow?

The product sheet shows T568A and T568B pin arrangement guidance, and the installation steps instruct users to place the conductors into the IDC according to terminal T568.

6. What should buyers confirm before bulk purchase?

Buyers should confirm cable AWG range, conductor type, shielding requirement, preferred plating level, and whether the site team wants a toolless installation workflow.

■10) Conclusion

The ZCTPU6A-B2 is a practical CAT6A UTP toolless plug for projects that value flexible field termination, mixed conductor compatibility, and direct installation guidance. Its value comes from the balance of toolless workflow, AWG range support, electrical data, and contact customization options.

For best results, match it to a clearly defined unshielded cabling architecture, verify the cable size range before ordering, and make sure field teams follow the wiring and closure steps carefully. When those conditions are met, it becomes a strong choice for efficient copper field termination.

Need help confirming the right toolless plug for your project?

Send your cable type, conductor size, shielding requirement, plating preference, and project quantity. ZION can help you confirm the most suitable RJ45 plug configuration before purchase.

Request Datasheet / Quote
Back to Top

Suggested parameter checklist

Solid or stranded cable requirement
22AWG / 23AWG / 24AWG conductor size
UTP system confirmation
3u'' or 50u'' plating preference
T568A / T568B site standard
Project quantity and installation workflow

Tag:

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Free Pressure Toolless plug

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month
