Product Description

Copper Patch Panel / Blank Panel / Engineer Selection

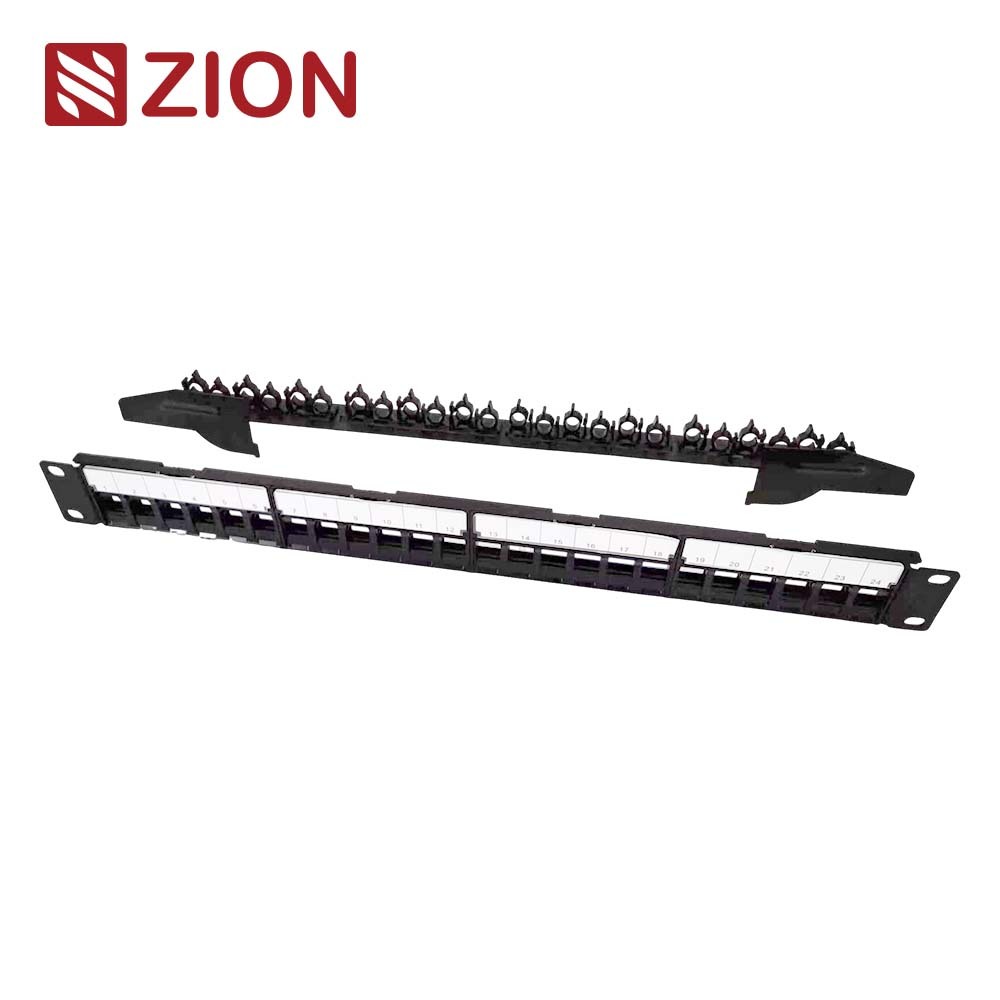

1U 24 Ports Shielded Blank Patch Panel With Folding Cable Manager

Name: 1U 24 Ports Shielded Blank Patch Panel With Folding Cable Manager
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: Copper Patch Panel
Availability: InStock

The ZCBFPPU-1U24-B2 is a 19-inch 1U 24-port shielded blank patch panel designed for keystone-based structured cabling, combining modular port flexibility with folding rear cable management for cleaner rack deployment and easier cable organization.

Structured Cabling Engineers
System Integrators
Telecom Contractors
IT Procurement Teams
OEM Buyers
Rack Builders

Quick Takeaway

1U 24-port shielded blank patch panel for keystone-based copper systems.
Folding cable manager helps improve rear cable discipline in the rack.
Best used when projects want modular keystone flexibility instead of fixed loaded ports.

Request Datasheet / Sample
See Decision Rules

Contents

Overview
Key Features
Technical Specifications
Construction / Materials
Applications
Decision Rules / Engineer’s Shortcut
Selection Guide
Packing / Logistics
FAQ
Conclusion

Reserved Image Module

Add front view, folding cable manager view, keystone installation close-up, and rack application image here.

Reserved Video Module

Suitable for keystone snap-in demo, rack installation guide, cable management explanation, or factory overview.

■1) Overview

The 1U 24 Ports Shielded Blank Patch Panel With Folding Cable Manager is a modular copper patch panel platform for structured cabling projects that want keystone-based configuration rather than fixed loaded ports. It provides a standard 19-inch 1U rack format, 24 empty module positions, and a folding rear cable-management structure.

For engineering teams, its main value is modular flexibility plus cleaner rack organization. For procurement teams, it enables panel and keystone sourcing to remain separate, which can simplify standardization across projects with different jack requirements.

Field reality

Blank patch panels are often chosen to keep module choice open, but the bigger advantage is that they let procurement standardize the panel platform while engineering teams finalize the exact shielded keystone type later.

■2) Key Features

This patch panel is designed for modular copper cabling projects that need a shielded blank panel platform with organized rear cable routing and easy snap-in keystone installation.

Feature	What It Means	Project Benefit
1U 24-Port Layout	Standard 19-inch rack format with 24 module positions	Supports common rack planning and standard patch density
Shielded Blank Structure	Delivered without keystone jacks	Keeps module selection flexible for project-specific needs
Folding Cable Manager	Integrated folding rear organization structure	Improves rear cable routing neatness
Cat5e / Cat6 / Cat6A Suitability	Can be matched with corresponding keystone types	Supports reuse across broader copper category planning
Snap-In Module Structure	Easy to install and unload module	Simplifies assembly and later replacement
Identification-Friendly Design	Label and inlaid marks for identification and network management	Supports cleaner administration inside the rack
Blank Dustproof Stoppage Support	Unused module ports can be closed with blank pieces	Keeps spare positions neat and visually clean
SPCC Material	Cold rolled steel body	Provides stable rack-mount construction

■3) Technical Specifications

Parameter	Specification
Product Name	1U 24 Ports Shielded Blank Patch Panel With Folding Cable Manager
SKU	ZCBFPPU-1U24-B2
Mounting Standard	19-inch
Rack Height	1U
Port Count	24 ports
Panel Type	Empty patch panel
Module Type	Suit for fitting with keystone jack
Module Delivery	Without keystone jack / not including module in the packaging
Cable Management	With folding cable management
Compatible Category	Suit for Cat5e / 6 / 6A type
Panel Color	Black front with silver support bar
Material	SPCC
Jack Compatibility	Compatible with 24 pcs keystone jacks
Unused Port Option	Blank dustproof stoppage supported
Module Installation Method	Snap-in structure, easy to install and unload module

Key takeaway

Blank modular structure is the main reason to choose this model over a loaded patch panel.

Folding cable manager is a practical advantage for neater rear cable routing.

Cat5e/6/6A suitability gives the panel wider reuse potential across different shielded keystone projects.

■4) Construction / Materials

The panel uses an SPCC metal body with a black front face and silver support bar. Its blank-port snap-in structure is designed for modular keystone assembly, while the folding rear section helps keep cable routing more controlled after rack installation.

Construction Element	Specification	Practical Meaning
Panel body	SPCC	Supports stable rack-mount construction
Front appearance	Black front with silver support bar	Provides a clear structured look in the rack
Port architecture	24 blank module positions	Lets the project define final keystone selection separately
Module fitting style	Snap-in structure	Makes installation and replacement easier
Cable organization	Folding cable management	Improves rear cable dressing and maintenance order
Unused-port finish	Blank dustproof stoppage can be used	Keeps spare positions visually clean and controlled

Practical rule

Choose a blank patch panel when the project wants freedom to define the exact jack type later. Choose a loaded panel when module type is already fixed and assembly speed matters more than modular flexibility.

■5) Applications

This patch panel is best suited to structured copper projects that prefer modular keystone architecture, especially where different category levels or staged assembly workflows make a blank panel more practical than a preloaded alternative.

Application Scenario	Why This Panel Fits	What to Verify Before Approval
Shielded keystone-based rack build	Blank structure supports flexible jack selection	Exact keystone type and quantity
Commercial LAN installation	Supports Cat5e / 6 / 6A modular deployment	Category level and future upgrade plan
Staged procurement project	Panel can be ordered separately from modules	Assembly workflow and module sourcing plan
Rack organization upgrade	Folding manager helps improve rear cable order	Rear cabinet clearance and cable route
OEM / standardized product platform	Supports a repeatable panel platform with project-specific modules	Branding, accessory, and packing expectation

■6) Decision Rules / Engineer’s Shortcut

The fastest correct choice starts with three questions: does the project want keystone flexibility, is a shielded panel architecture required, and is integrated cable organization useful in the rack? If yes, this panel is usually a strong fit.

Decision Point	Choose This Panel When	Do Not Choose It When	Alternative Direction	Cost / Risk / Maintainability Impact
Module flexibility	The project wants to choose keystone jacks separately	The module type is fixed and preloaded ports are preferred	Use a loaded patch panel	Correct choice avoids paying for unused fixed configuration
Shielding strategy	The project requires a shielded blank panel platform	The system is fully unshielded and does not need shielded panel logic	Use an unshielded blank panel	Correct shield matching reduces design inconsistency
Rack organization	Rear cable management helps the rack layout	The cabinet does not benefit from folding management structure	Use a simpler blank panel if needed	Integrated management can reduce cable disorder and rework
Category range	The project may use Cat5e, Cat6, or Cat6A keystone modules	The project needs a different module form factor	Use a panel matched to the exact module architecture	Correct match improves fit and assembly speed
Unused port appearance	The project wants clean-looking spare positions	Unused ports are not a visual or operational concern	Use blank dustproof stoppage only where needed	Helps keep finished racks cleaner and easier to manage
Procurement workflow	The buyer wants panel and modules sourced separately	A single complete loaded BOM is preferred	Use a preloaded assembly	Better alignment reduces sourcing confusion

Practical rule

Choose this model when the project needs 24 shielded keystone positions in 1U, benefits from integrated folding cable management, and wants the freedom to source modules separately.

■7) Selection Guide

A correct selection should evaluate jack-type flexibility, shielding strategy, rear cable-management needs, and logistics planning. That helps avoid ordering a panel structure that does not match the actual rack assembly method.

Selection Factor	Question to Ask	Recommendation
Keystone architecture	Does the project want modular keystone choice?	Use this panel when jack choice must stay flexible
Category support	Will the project use Cat5e, Cat6, or Cat6A keystones?	Confirm module choice before bulk assembly
Shielding	Is a shielded panel platform required for the system?	Choose this when shielded architecture is correct
Cable organization	Will rear cable management improve rack maintenance?	Use the folding manager where rack neatness matters
Spare positions	Will all 24 ports be populated immediately?	Plan blank dustproof stoppage for unused positions
Procurement planning	How many panels and jacks must be packed and shipped separately?	Use the carton data for warehouse and freight planning

Dimension	Value	Why It Matters
Rack width reference	19-inch standard / about 482.6 mm shown in drawing	Confirms common rack compatibility
Depth reference	82.54 mm shown in side drawing	Useful for rear cable-space planning
Height reference	44.50 mm shown in drawing	Supports rack-space planning
Folding manager span	Shown as integrated rear folding structure	Important for cable dressing and cabinet clearance

■8) Packing / Logistics

Packing data is important for buyers ordering blank panels in project volume, since panel quantity, keystone quantity, and accessory handling are often planned separately.

Packing Item	Specification	Procurement Meaning
Inner box quantity	1 pc / inner box	Simple single-unit handling and counting
Carton quantity	20 pcs / carton	Supports project and freight quantity planning
Inner box size	51 × 10 × 5.5 cm	Useful for warehouse storage and courier planning
Carton size	53 × 42.5 × 30.5 cm	Helps freight-volume estimation
Accessories shown	M6 screw and nuts, cable ties	Improves installation-readiness visibility

■9) FAQ

1. Is this a loaded patch panel or a blank patch panel?

It is a blank patch panel supplied without keystone jacks.

2. What modules is it designed to work with?

It is designed for fitting with keystone jacks and is stated to suit Cat5e, Cat6, and Cat6A types.

3. What is the main advantage of the folding cable manager?

It helps organize rear cable routing and improves rack neatness and maintenance convenience.

4. Can unused module positions be closed?

Yes. The sheet states that not fitted module ports can use blank dustproof stoppage for a cleaner appearance.

5. What should buyers confirm before ordering?

Buyers should confirm the required keystone type, shielding strategy, category level, rack-space plan, and whether the project benefits from the integrated folding cable manager.

6. What packing quantity should procurement plan around?

The product is packed 1 piece per inner box and 20 pieces per carton.

■10) Conclusion

The ZCBFPPU-1U24-B2 is a practical 1U 24-port shielded blank patch panel for structured copper deployments that want modular keystone flexibility and cleaner rear cable organization. Its value comes from the blank snap-in architecture, category versatility, and integrated folding cable manager rather than from a fixed loaded-port format.

For best project results, match it to a clearly defined shielded keystone strategy, confirm the exact jack category before assembly, and use the packing data for more accurate logistics planning. When those conditions are clear, it becomes an efficient and flexible patching platform for copper rack systems.

Need help confirming the right blank patch panel configuration?

Send your keystone type, category level, shielding requirement, project quantity, and rack layout plan. ZION can help you confirm the most suitable patch panel platform before purchase.

Request Datasheet / Quote
Back to Top

Suggested parameter checklist

Keystone type and category level
Shielded system confirmation
Need for folding cable manager
Blank dustproof stoppage requirement
Project quantity and carton planning
Rack layout and cable organization preference
