Product Description

Copper Patch Panel / Blank Panel / Engineer Selection

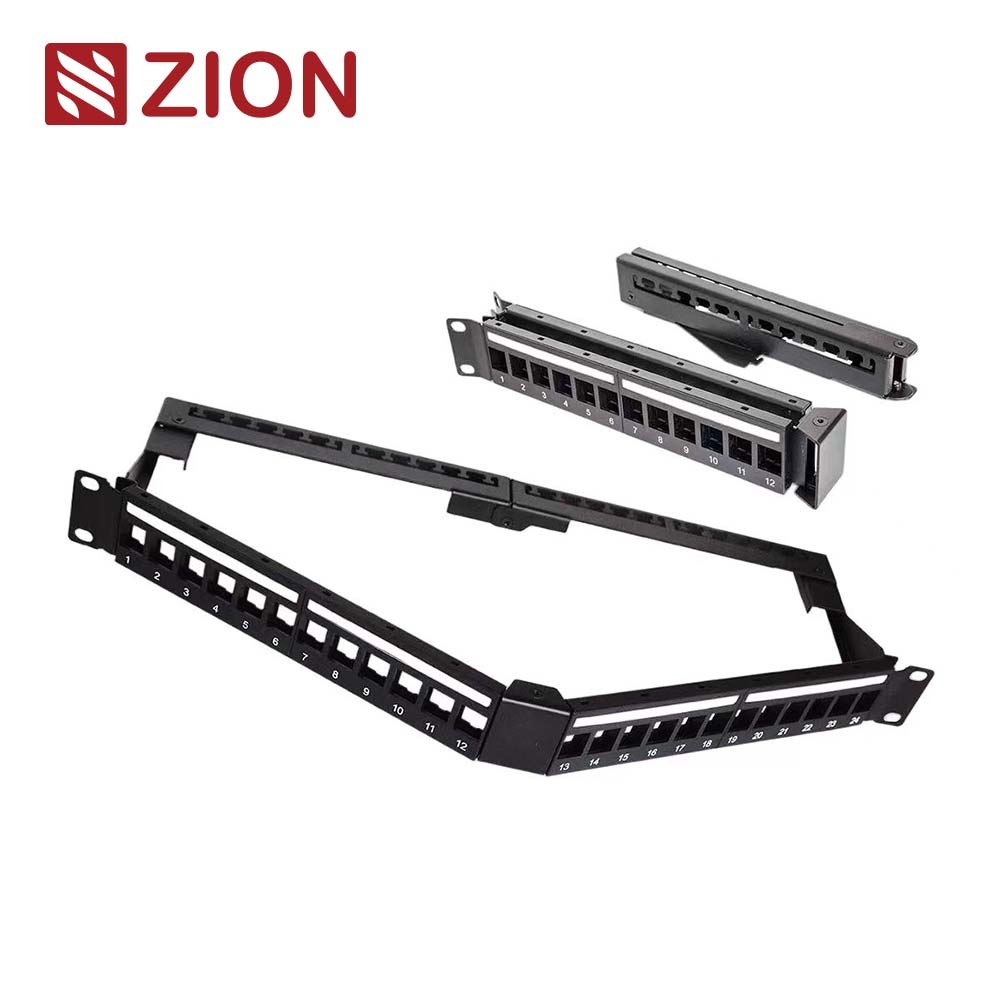

1U 24 Ports Unshielded Folding Blank Patch Panel

Name: 1U 24 Ports Unshielded Folding Blank Patch Panel
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: Copper Patch Panel
Availability: InStock

The ZCBFPPU-1U24-B1 is a 19-inch 1U 24-port unshielded blank patch panel designed for keystone-based structured cabling, combining snap-in modular flexibility with integrated folding cable management for organized rack deployment.

Structured Cabling Engineers
System Integrators
Telecom Contractors
IT Procurement Teams
OEM Buyers
Rack Builders

Quick Takeaway

1U 24-port blank patch panel for unshielded keystone-based copper systems.
Integrated folding cable management helps organize rear cable routing inside the rack.
Best selected when projects need flexible keystone choice instead of loaded fixed ports.

Request Datasheet / Sample
See Decision Rules

Contents

Overview
Key Features
Technical Specifications
Construction / Materials
Applications
Decision Rules / Engineer’s Shortcut
Selection Guide
Packing / Logistics
FAQ
Conclusion

Reserved Image Module

Add front view, folding cable management view, keystone installation close-up, and rack application image here.

Reserved Video Module

Suitable for keystone snap-in demo, rack installation guide, cable management explanation, or factory overview.

■1) Overview

The 1U 24 Ports Unshielded Folding Blank Patch Panel is a modular copper patch panel platform intended for projects that prefer keystone-based configuration rather than fixed loaded ports. It provides a standard 19-inch 1U rack format with 24 empty module positions and a folding rear cable-management structure.

From an engineering perspective, the main value of this panel is flexibility. Because it is supplied without keystone jacks, project teams can define the final port configuration separately. From a procurement perspective, it simplifies standardized rack builds while allowing module choice to vary by project type.

Field reality

Blank patch panels are often chosen to keep module choice flexible, but the real project advantage comes from easier SKU standardization and the ability to match keystone type to the exact network requirement later.

■2) Key Features

This patch panel is designed for modular copper cabling projects that need an unshielded, keystone-based, rack-mount solution with cleaner cable organization at the rear.

Feature	What It Means	Project Benefit
1U 24-Port Layout	Standard 19-inch rack-mount format with 24 module positions	Fits common rack infrastructure and supports standard patch density
Blank Patch Panel Structure	Delivered without keystone jacks	Lets the buyer define final module selection separately
Folding Cable Management	Integrated folding rear management structure	Improves rear cable discipline and rack neatness
Cat5e / Cat6 / Cat6A Suitability	Can be matched with corresponding keystone types	Supports broader project reuse across copper categories
Snap-In Module Structure	Easy to install and unload module	Speeds assembly and later replacement
Identification-Friendly Design	Label and inlaid marks for identification and network management	Supports cleaner administration in structured cabling racks
Blank Dustproof Stoppage Support	Unused module ports can be filled with blank dustproof pieces	Improves appearance and keeps spare positions tidy
SPCC Material	Cold rolled steel material noted as SPCC	Supports stable rack-mount body construction

■3) Technical Specifications

Parameter	Specification
Product Name	1U 24 Ports Unshielded Folding Blank Patch Panel
SKU	ZCBFPPU-1U24-B1
Mounting Standard	19-inch
Rack Height	1U
Port Count	24 ports
Shielding Type	Unshielded
Module Type	Suit for fitting with keystone jack
Module Delivery	Without keystone jack / not including module in the packaging
Cable Management	With folding cable management
Compatible Category	Suit for Cat5e / 6 / 6A type
Panel Color	Black front with silver support bar
Material	SPCC
Jack Compatibility	Compatible with 24 pcs unshielded keystone jacks
Unused Port Option	Blank dustproof stoppage supported
Module Installation Method	Snap-in structure, easy to install and unload module

Key takeaway

Blank modular structure is the main reason to choose this model over a loaded patch panel.

Folding cable management is a practical advantage for cleaner rear rack organization.

Cat5e/6/6A compatibility gives the panel broader reuse potential across different keystone-based copper projects.

■4) Construction / Materials

The panel uses an SPCC metal body with a black front face and silver support bar. Its blank-port, snap-in structure is designed around modular keystone assembly, while the folding rear section helps keep cable routing controlled after installation.

Construction Element	Specification	Practical Meaning
Panel body	SPCC	Supports stable rack-mount construction
Front appearance	Black front with silver support bar	Provides clear visual structure in the rack
Port architecture	24 blank module positions	Lets the installer define final keystone selection
Module fitting style	Snap-in structure	Makes installation and replacement easier
Cable organization	Folding cable management	Improves rear cable dressing and rack neatness
Unused-port finish	Blank dustproof stoppage can be used	Keeps spare positions visually clean and controlled

Practical rule

Choose a blank patch panel when your project wants freedom to define the exact jack type later. Choose a loaded panel when the module configuration is already fixed and assembly time must be minimized further.

■5) Applications

This patch panel is best suited to structured copper projects that prefer modular keystone architecture, especially where different copper categories or staged installation workflows make a blank panel more practical than a preloaded alternative.

Application Scenario	Why This Panel Fits	What to Verify Before Approval
Keystone-based rack build	Blank structure supports flexible jack selection	Exact jack type and quantity per project
Commercial LAN installation	Supports Cat5e / 6 / 6A modular deployment	Network category and future upgrade plan
Staged project procurement	Panel can be ordered separately from modules	Assembly workflow and module sourcing plan
Rack organization upgrade	Folding cable management helps improve rear cable order	Rear cable clearance inside the cabinet
OEM / standard product line	Supports standardized patch panel platform with project-specific modules	Branding, accessory, and packing expectation

■6) Decision Rules / Engineer’s Shortcut

The fastest correct choice starts with three questions: does the project want keystone flexibility, is the system unshielded, and is integrated cable organization useful in the rack? If yes, this panel is usually a strong fit.

Decision Point	Choose This Panel When	Do Not Choose It When	Alternative Direction	Cost / Risk / Maintainability Impact
Module flexibility	The project wants to choose keystone jacks separately	The module type is already fixed and preloaded ports are preferred	Use a loaded patch panel	Right choice avoids paying for unused preloaded configuration
Shielding strategy	The project uses unshielded keystone jacks	The system requires shielded module continuity	Use a shielded panel matched to the system design	Correct shield matching reduces performance and grounding mismatch risk
Rack organization	Rear cable management is useful for the rack layout	The cabinet does not benefit from the folding manager structure	Use a simpler blank panel if needed	Integrated management can reduce cable disorder and rework
Category range	The project may use Cat5e, Cat6, or Cat6A keystone modules	The project needs a different module form factor	Use a panel matched to the exact module architecture	Correct match improves fit and assembly speed
Unused port appearance	The project wants clean-looking spare positions	Unused ports are not a visual or operational concern	Use blank dustproof stoppage only where needed	Helps keep finished racks cleaner and easier to manage
Procurement workflow	The buyer wants panel and modules sourced separately	A single complete loaded BOM is preferred	Use a preloaded assembly	Better alignment reduces sourcing confusion

Practical rule

Choose this model when the project is unshielded, needs 24 keystone positions in 1U, and benefits from integrated folding cable management plus separate keystone selection.

■7) Selection Guide

A correct selection should evaluate jack type flexibility, shielding strategy, rear cable-management needs, and logistics planning. That helps avoid ordering a panel structure that does not match the actual assembly method on site.

Selection Factor	Question to Ask	Recommendation
Keystone architecture	Does the project want modular keystone choice?	Use this panel when jack choice must stay flexible
Category support	Will the project use Cat5e, Cat6, or Cat6A keystones?	Confirm module selection before bulk assembly
Shielding	Is the cabling system unshielded?	Choose this when unshielded system design is correct
Cable organization	Will rear cable management improve rack maintenance?	Use the folding manager where rack neatness matters
Spare positions	Will all 24 ports be populated immediately?	Plan blank dustproof stoppage for unused positions
Procurement planning	How many panels and jacks must be packed and shipped separately?	Use the carton data for warehouse and freight planning

Dimension	Value	Why It Matters
Rack width reference	19-inch standard / 482.6 mm shown in drawing	Confirms common rack compatibility
Depth reference	250 mm shown in side drawing	Useful for rear cable-space planning
Height reference	1U / about 44.5 mm front height indicated by drawing style	Supports rack-space planning
Folding manager span	Shown as integrated rear folding structure	Important for cable dressing and cabinet clearance

■8) Packing / Logistics

Packing data is especially useful for project buyers ordering blank panels in volume, since panel quantity, keystone quantity, and accessory handling are often planned separately.

Packing Item	Specification	Procurement Meaning
Inner box quantity	1 pc / inner box	Simple single-unit handling and counting
Carton quantity	20 pcs / carton	Supports project and freight quantity planning
Inner box size	51 × 10 × 5.5 cm	Useful for warehouse storage and courier planning
Carton size	53 × 42.5 × 30.5 cm	Helps freight-volume estimation
Accessories shown	M6 screw and nuts, cable ties	Improves installation-readiness visibility

■9) FAQ

1. Is this a loaded patch panel or a blank patch panel?

It is a blank patch panel supplied without keystone jacks.

2. What modules is it designed to work with?

It is designed for fitting with unshielded keystone jacks and is stated to suit Cat5e, Cat6, and Cat6A types.

3. What is the main advantage of the folding cable management structure?

It helps organize rear cable routing and can improve rack neatness and maintenance convenience.

4. Can unused module positions be closed?

Yes. The sheet states that not fitted module ports can use blank dustproof stoppage for a cleaner appearance.

5. What should buyers confirm before ordering?

Buyers should confirm the required keystone type, shielding strategy, category level, rack-space plan, and whether the project benefits from the integrated folding cable manager.

6. What packing quantity should procurement plan around?

The product is packed 1 piece per inner box and 20 pieces per carton.

■10) Conclusion

The ZCBFPPU-1U24-B1 is a practical 1U 24-port unshielded folding blank patch panel for structured copper deployments that want modular keystone flexibility and cleaner rear cable organization. Its value comes from the snap-in blank architecture, category versatility, and integrated folding cable management rather than from a fixed loaded-port format.

For best project results, match it to a clearly defined unshielded keystone strategy, confirm the exact jack category before assembly, and use the packing data for more accurate logistics planning. When those points are clear, it becomes an efficient and flexible patching platform for copper rack systems.

Need help confirming the right blank patch panel configuration?

Send your keystone type, category level, shielding requirement, project quantity, and rack layout plan. ZION can help you confirm the most suitable patch panel platform before purchase.

Request Datasheet / Quote
Back to Top

Suggested parameter checklist

Cat5e / Cat6 / Cat6A keystone choice
Unshielded system confirmation
Need for folding cable management
Blank dustproof stoppage requirement
Project quantity and carton planning
Rack layout and cable organization preference
