Home > Products> Cabinet And Rack> 1U Thickness 12 Way Cabinet PDU with Overload Protection and Switch for Data Centers 250V 16A

1U Thickness 12 Way Cabinet PDU with Overload Protection and Switch for Data Centers 250V 16A

Basic Information

Brand Name:	Zion communication
Model Number:	1U 12 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

Zion Communication Cabinet PDU

12 Way Cabinet PDU

Cabinet PDU 1U Thickness

Product Description

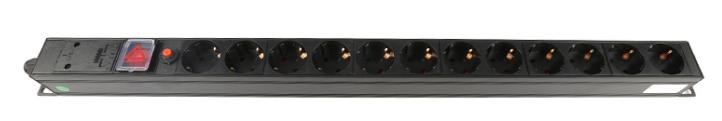

1U 12 Way Cabinet PDU with Switch and Overload Protection

250V, 16A German Standard Power Distribution Unit

Product Code

PDU-7245327 (ZC-1U12-K-G-GER)

Applications

Banking, securities, and financial institutions
Universities and educational facilities
Municipal administration offices
Medical care facilities and hospitals
Electric power and utility companies
Data Centers and Enterprise Networking

PDU Module Overview

Switch: Controls power on/off for the PDU to manage data system operation
Overload Protection: Thermal kinetic energy overload protector automatically cuts power during current overload and can be reset after overload is removed
Functional Module: Modular design with socket modules compliant with global standards, using phosphor bronze components for reliable contact and 5000+ plug cycles
Cable Cord: Optional 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², or 32A 3*6mm² cables
LOGO Customization: Available for ODM/OEM requirements
Profile: High-quality aluminum alloy shell for strength and heat dissipation
Installation: Designed for 360° orientation installation
Power Input: Multiple input options including left/right side, front/rear, single/double input configurations

Technical Specifications

Countries Socket Type	16A German
Rated Current	16A
Rated Voltage	250VAC 50/60Hz
Max. Continuous Operating Voltage	320VAC
Unit Thickness	1U
Output Module Number	12 way
OEM/ODM	YES
Color	Black
Length of Size	19 inch
Environment Temperature	-40°C to +70°C
Material	Uninflammable PC module UL94V-0, Aluminum alloy shell
Fire Resistance	UL 94V-0
Packing	1pc/plastic bag/inner box, 25pcs/carton

Related PDU Products

Zion Communication offers a comprehensive range of PDU types including universal, UK, UL, French, and German standards with various configurations and protection features.
