1U Thickness 6 Way Cabinet PDU with Switch and Overload Protection for Data Centers

Basic Information

Brand Name:	Zion communication
Model Number:	1U 6 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

250V 16A Cabinet PDU

Cabinet PDU Optical Networking Products

Overload Protection Cabinet PDU

Product Description

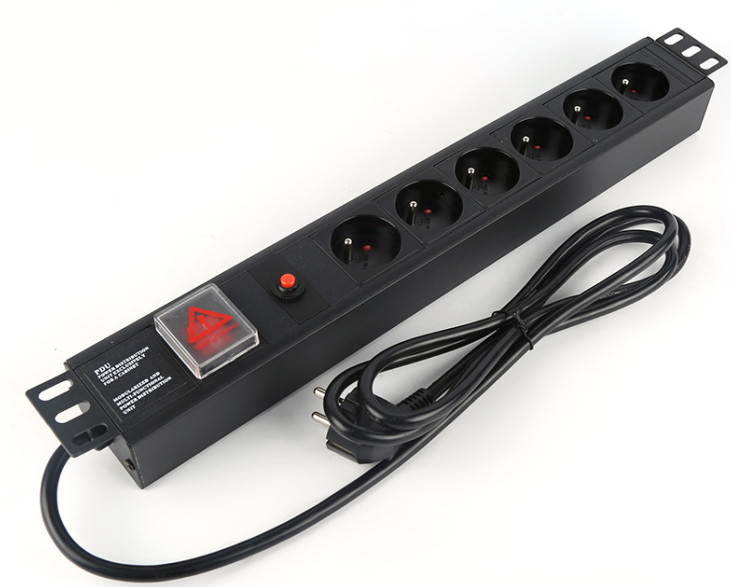

250V 16A 1U 6 Way Cabinet PDU With Switch And Overload Protection

Product Overview

1U 6 way Cabinet PDU with Switch and Overload protection, rated for 250V, 16A France standard.

Zion Product Information

Zion Code	Zion Description
PDU-7245325(ZC-1U06-K-G-FRA)	1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France

Applications

Banking, securities, universities, municipal administration, medical care, electric power and other fields
Data Center; Enterprise networking

PDU Basic Module Overview

Switch: Controls power on/off of the PDU to manage data system operation.

Overload Protection: Thermal kinetic energy overload protector automatically cuts power during current overloads. Features reusable operation without fuse replacement.

Functional Module: Modular design with globally compliant socket modules. Components made with phosphor bronze for elasticity, wear-resistance, and corrosion resistance. Ensures reliable contact with 5000+ plug cycles.

Cable Cord: Optional 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², or 32A 3*6mm² cables.

LOGO Customization: Available ODM/OEM printing according to requirements.

Profile: High-quality aluminum alloy shell for strength and heat radiation.

Installation: Designed for installation in any orientation (360°).

Main Product Parameters

Parameter	Specification
Countries Socket Type	16A France
Rated Current	16A
Rated Voltage	250VAC 50/60Hz
Max. Continuous Operating Voltage UC	320VAC
Thickness of the Unit	1U
Output Module Number	6 way
OEM/ODM	YES
Color	Black
The Length of Size	19 inch
Alternative Filtration	Highly efficient
Vendor Name	Zion Communication /Hello Signal
Incidental Function	Switch and Overload protection
Environment Temperature	-40°C to +70°C
Material	Uninflammable PC module UL94V-0, Aluminium alloy shell
Fire Resistance	Up to UL 94V-0
Packing	1pc/plastic bag/inner box, 25pcs/carton

Zion Communication's Hot PDU Types

Zion Code	Name Code	Zion Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
7245311	ZC-1U03-K-WN16	1U 3 way Cabinet PDU with Switch 250V,16A Universal
7245312	ZC-1.5U06-L-WN16	1.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245313	ZC-1U12-Z-UK	1U 12 way Cabinet PDU with Power Light 250V,13A UK
7245314	ZC-1.5U06-k-G-D-UK	1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK
7245315	ZC-1U06-K-G-UK	1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245316	ZC-1U08-UK	1U 8 way Cabinet PDU with 250V,13A UK
7245317	ZC-1U07-K-G-UK	1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245318	ZC-1U08-K-G-UL	1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
7245319	ZC-1.5U09-K-UL	1.5U 9 way Cabinet PDU with Switch 125V,15A UL
7245320	ZC-1.5U10-G-UL	1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL
7245321	ZC-1.5U12-K-UL	1.5U 12 way Cabinet PDU with Switch 125V,15A UL
7245322	ZC-1U06-K-G-U-UL	1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL
7245323	ZC-1U10-K-C13	1U 10 way Cabinet PDU with Switch IEC 250V,10A C13
7245324	ZC-1U08-K-C13	1U 8 way Cabinet PDU with Switch IEC 250V,10A C13
7245325	ZC-1U06-K-G-FRA	1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France
7245326	ZC-1.5U08-FRA	1.5U 8 way Cabinet PDU 250V,16A France
7245327	ZC-1U12-K-G-GER	1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245328	ZC-1U08-K-G-GER	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245329	ZC-1.5U06-K-3D-GER	1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German

Additional Information

For more detailed specifications and technical documentation, please contact our sales team.
