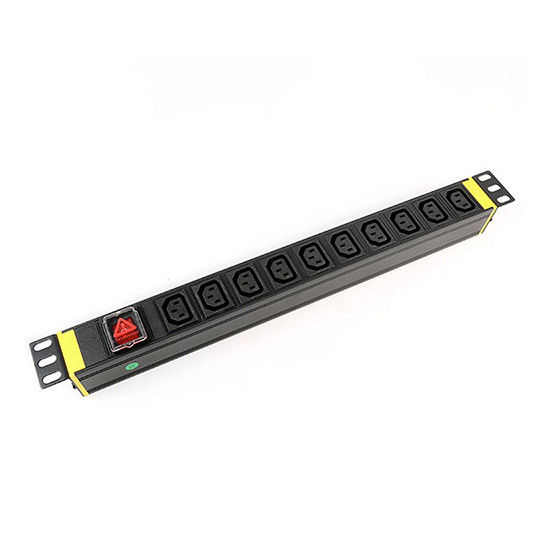

1U Thickness 10 Way Cabinet PDU with Switch Control for Data Center Power Distribution

1U Thickness 10 Way Cabinet PDU with Switch Control for Data Center Power Distribution
1U Thickness 10 Way Cabinet PDU with Switch Control for Data Center Power Distribution
Basic Information
Brand Name: Zion communication
Model Number: 1U 10 way Cabinet PDU
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 10A
Thickness Of The Unit: 1U Environment Temperature: -40~ +70°C
Highlight:

10 Way Cabinet PDU

,

250V 10A Cabinet PDU

,

1U Cabinet PDU

Product Description

1U 10 Way Cabinet PDU With Switch IEC 250V 10A C13
Professional 1U rack-mountable Power Distribution Unit featuring 10 IEC C13 outlets with individual switch control, designed for data center and enterprise applications.
Product Identification
Zion Code Zion Description
PDU-7245323(ZC-1U10-K-C13) 1U 10 way Cabinet PDU with Switch IEC 250V,10A C13
1U Thickness 10 Way Cabinet PDU with Switch Control for Data Center Power Distribution 0
Applications
  • Banking, securities, and financial institutions
  • Universities and educational facilities
  • Municipal administration buildings
  • Medical care and healthcare facilities
  • Electric power and utility companies
  • Data Centers and Enterprise Networking
PDU Module Overview
1U Thickness 10 Way Cabinet PDU with Switch Control for Data Center Power Distribution 1
Power Switch
Controls power on/off for the entire PDU system to manage data system operations
Modular Functional Design
All functional modules feature modular construction with socket modules compliant with global standards. Components use phosphor bronze for elasticity, wear-resistance, and corrosion resistance, ensuring reliable contact with 5000+ plug cycles.
Cable Options
Available with 10A 3×1.5mm², 16A 3×2.5mm², 25A 3×4mm², or 32A 3×6mm² power cords
Custom Branding
ODM/OEM logo printing available according to customer requirements
Aluminum Alloy Housing
High-quality aluminum alloy shell ensures structural strength and optimal heat dissipation
Flexible Installation
Designed for installation in any orientation (360° rotation capability)
Input Configuration
Optional left/right side input, front/rear input, single/double side input, and socket input options
Technical Specifications
Socket Type 10A C13
Rack Size 19 inch
Rated Current 10A
Rated Voltage 250VAC 50/60Hz
Max Operating Voltage 320VAC
Unit Thickness 1U
Output Modules 10 way
OEM/ODM Support YES
Color Black
Additional Functions Switch Control
Operating Temperature -40°C to +70°C
Materials UL94V-0 PC module, Aluminum alloy
Fire Resistance UL 94V-0
Packaging 1pc/plastic bag/inner box, 25pcs/carton
Manufacturer Zion Communication / Hello Signal
Related PDU Products
Zion Code Name Code Description
7245301 ZC-1U03-3P-WN 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302 ZC-1U06-K-WN 1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303 ZC-1U06-K-3D-WN 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304 ZC-1U08-K-G-WN 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305 ZC-1U06-P-WN 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306 ZC-1U06-K-D-U-WN 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307 ZC-1U06-Z-P-WN 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308 ZC-1U06-L-WN16 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309 ZC-1U06-L-Z-WN16 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310 ZC-1U08-K-G-WN16 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
