Home > Products> Cabinet And Rack> 1.5U Thickness 12 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating

1.5U Thickness 12 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating

Basic Information

Brand Name:	Zion communication
Model Number:	1.5U 12 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

1.5U 12 Way Cabinet PDU

Cabinet PDU With Switch

Product Description

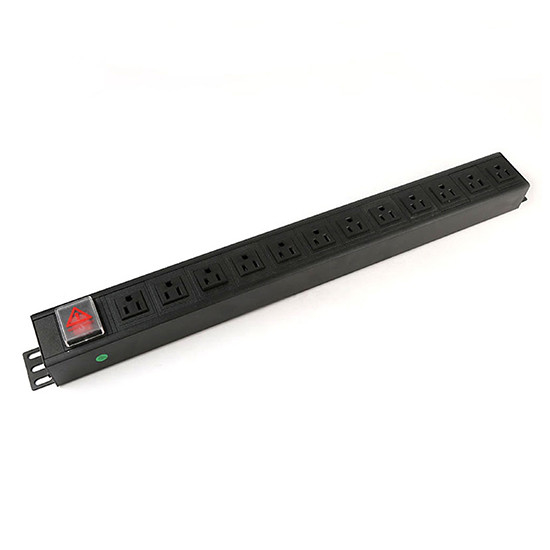

1.5U 12 Way Cabinet PDU With Switch 125V, 15A UL

Zion Code and Description

Zion Code	Zion Description
PDU-7245321(ZC-1.5U12-K-UL)	1.5U 12 way Cabinet PDU with Switch 125V,15A UL

Applications

Banking, securities, universities, municipal administration, medical care, electric power and other fields
Data Center; Enterprise networking

PDU Basic Module Overview

Switch: Control the power on and off of the PDU to control the operation of the data system.

Functional Module: All functional modules are designed and manufactured in accordance with modularized structure. The product is equipped with supply socket modules compliant with different systems and standards worldwide, satisfying the needs of clients in different regions or countries.

Cable Cord: Optional 10A 3*1.5mm² cable, 16A 3*2.5mm² cable, 25A 3*4mm² cable, 32A 3*6mm² cable.

LOGO Customize: Print LOGO according to requirement ODM/OEM.

Profile: The outer shell is made with high-quality aluminum alloy to ensure high strength and heat radiation.

Installation: Designed to be installed in any orientation (360°).

Power Input: Optional left-side input/right-side input, front input/rear input, single side single/double input, double side single/double input, and socket input.

Main Product Parameters

Countries Socket Type: 15A UL

Rated Current: 15A

Rated Voltage: 125VAC

Max. Continuous Operating Voltage UC: 220VAC

Thickness of the Unit: 1.5U

Output Module Number: 12 way

OEM/ODM: YES

Color: Black

The Length of Size: 19 inch

Alternative Filtration: Highly efficient

Vendor Name: Zion Communication /Hello Signal

Incidental Function: Switch

Environment Temperature: -40~ +70°C

Material: Uninflammable PC module UL94V-0, Aluminium alloy shell

Fire Resistance: Up to UL 94V-0

Packing: 1pc/plastic bag/inner box, 25pcs/carton

Zion Communication's Hot PDU Types

Zion Code	Name Code	Zion Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
7245311	ZC-1U03-K-WN16	1U 3 way Cabinet PDU with Switch 250V,16A Universal
7245312	ZC-1.5U06-L-WN16	1.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245313	ZC-1U12-Z-UK	1U 12 way Cabinet PDU with Power Light 250V,13A UK
7245314	ZC-1.5U06-k-G-D-UK	1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK
7245315	ZC-1U06-K-G-UK	1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245316	ZC-1U08-UK	1U 8 way Cabinet PDU with 250V,13A UK
7245317	ZC-1U07-K-G-UK	1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245318	ZC-1U08-K-G-UL	1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
7245319	ZC-1.5U09-K-UL	1.5U 9 way Cabinet PDU with Switch 125V,15A UL
7245320	ZC-1.5U10-G-UL	1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL
7245321	ZC-1.5U12-K-UL	1.5U 12 way Cabinet PDU with Switch 125V,15A UL
7245322	ZC-1U06-K-G-U-UL	1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL
7245323	ZC-1U10-K-C13	1U 10 way Cabinet PDU with Switch IEC 250V,10A C13
7245324	ZC-1U08-K-C13	1U 8 way Cabinet PDU with Switch IEC 250V,10A C13
7245325	ZC-1U06-K-G-FRA	1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France
7245326	ZC-1.5U08-FRA	1.5U 8 way Cabinet PDU 250V,16A France
7245327	ZC-1U12-K-G-GER	1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245328	ZC-1U08-K-G-GER	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245329	ZC-1.5U06-K-3D-GER	1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German
