Home > Products> Cabinet And Rack> 1.5U Thickness 9 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating

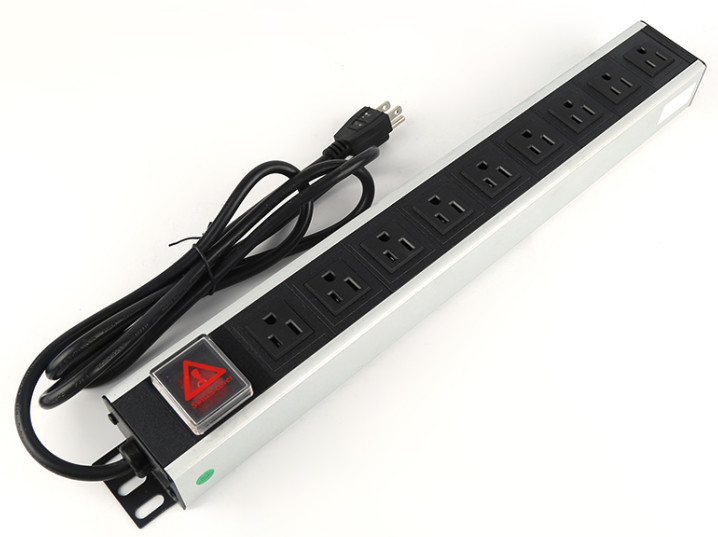

1.5U Thickness 9 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating

1.5U Thickness 9 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating
1.5U Thickness 9 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating
Basic Information
Brand Name: Zion communication
Model Number: 1.5U 9 way Cabinet PDU
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 15A
Thickness Of The Unit: 1.5U Environment Temperature: -40~ +70°C
Highlight:

1.5U 9 Way Cabinet PDU

,

Cabinet PDU 125V 15A

Product Description

1.5U 9 Way Cabinet PDU With Switch 125V, 15A UL
Product Identification
Zion CodeZion Description
PDU-7245319(ZC-1.5U09-K-UL)1.5U 9 way Cabinet PDU with Switch 125V,15A UL
1.5U Thickness 9 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating 0
Applications
  • Banking, securities, universities, municipal administration, medical care, electric power and other fields
  • Data Center; Enterprise networking
PDU Module Overview
1.5U Thickness 9 Way Output Cabinet PDU Power Distribution Unit with 125V 15A UL Rating 1
Power Switch
Controls power on/off of the PDU to manage data system operation
Functional Modules
Modular design with global standard compliance. Phosphor bronze components ensure reliable contact, wear-resistance, and 5000+ plug cycles. Fire-retardant PC+ABS materials meet UL94-V0 standards.
Cable Options
Available in 10A 3×1.5mm², 16A 3×2.5mm², 25A 3×4mm², and 32A 3×6mm² configurations
Custom Branding
ODM/OEM logo printing available per customer requirements
Enclosure Profile
High-quality aluminum alloy shell for strength and optimal heat dissipation
Installation Flexibility
Designed for installation in any orientation (360° rotation)
Power Input Options
Left/right-side input, front/rear input, single/double input configurations available
Technical Specifications
Countries Socket Type15A UL
Rated Current15A
Rated Voltage125VAC
Max. Continuous Operating Voltage220VAC
Unit Thickness1.5U
Output Modules9 way
OEM/ODM SupportYES
ColorBlack
Length19 inch
Alternative FiltrationHighly efficient
VendorZion Communication / Hello Signal
Incidental FunctionSwitch
Operating Temperature-40°C to +70°C
MaterialsUninflammable PC module UL94V-0, Aluminum alloy shell
Fire ResistanceUL 94V-0
Packing1pc/plastic bag/inner box, 25pcs/carton
Related PDU Products
Zion CodeName CodeZion Description
7245301ZC-1U03-3P-WN1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302ZC-1U06-K-WN1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303ZC-1U06-K-3D-WN1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304ZC-1U08-K-G-WN1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305ZC-1U06-P-WN1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306ZC-1U06-K-D-U-WN1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307ZC-1U06-Z-P-WN1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308ZC-1U06-L-WN161U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309ZC-1U06-L-Z-WN161U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310ZC-1U08-K-G-WN161U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
7245311ZC-1U03-K-WN161U 3 way Cabinet PDU with Switch 250V,16A Universal
7245312ZC-1.5U06-L-WN161.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245313ZC-1U12-Z-UK1U 12 way Cabinet PDU with Power Light 250V,13A UK
7245314ZC-1.5U06-k-G-D-UK1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK
7245315ZC-1U06-K-G-UK1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245316ZC-1U08-UK1U 8 way Cabinet PDU with 250V,13A UK
7245317ZC-1U07-K-G-UK1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245318ZC-1U08-K-G-UL1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
7245319ZC-1.5U09-K-UL1.5U 9 way Cabinet PDU with Switch 125V,15A UL
7245320ZC-1.5U10-G-UL1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL
7245321ZC-1.5U12-K-UL1.5U 12 way Cabinet PDU with Switch 125V,15A UL
7245322ZC-1U06-K-G-U-UL1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL
7245323ZC-1U10-K-C131U 10 way Cabinet PDU with Switch IEC 250V,10A C13
7245324ZC-1U08-K-C131U 8 way Cabinet PDU with Switch IEC 250V,10A C13
7245325ZC-1U06-K-G-FRA1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France
7245326ZC-1.5U08-FRA1.5U 8 way Cabinet PDU 250V,16A France
7245327ZC-1U12-K-G-GER1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245328ZC-1U08-K-G-GER1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245329ZC-1.5U06-K-3D-GER1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German
