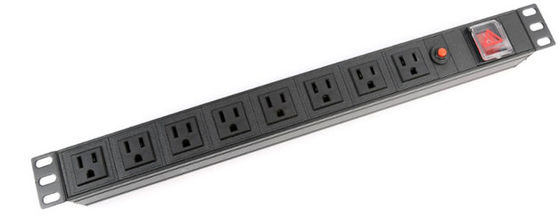

1U Thickness 8 Way Output Cabinet PDU with Overload Protection and Switch 125V 15A UL

1U Thickness 8 Way Output Cabinet PDU with Overload Protection and Switch 125V 15A UL
1U Thickness 8 Way Output Cabinet PDU with Overload Protection and Switch 125V 15A UL
Basic Information
Brand Name: Zion communication
Model Number: 1U 8 way Cabinet PDU
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 15A
Thickness Of The Unit: 1U Environment Temperature: -40~ +70°C
Highlight:

1U 8 Way Cabinet PDU

,

125V 15A Cabinet PDU

Product Description

1U 8 Way Cabinet PDU With Switch And Overload Protection 125V 15A UL
Product Overview

Professional 1U rack-mounted power distribution unit featuring 8 outlets with individual switch control and overload protection, UL certified for 125V, 15A operation.

1U Thickness 8 Way Output Cabinet PDU with Overload Protection and Switch 125V 15A UL 0
Zion Product Information
Zion Code Zion Description
PDU-7245318(ZC-1U08-K-G-UL) 1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
Applications
  • Banking, securities, universities, municipal administration, medical care, electric power and other fields
  • Data Center; Enterprise networking
PDU Module Overview
1U Thickness 8 Way Output Cabinet PDU with Overload Protection and Switch 125V 15A UL 1
1. Switch Control

Controls power on/off for the PDU to manage data system operation.

2. Overload Protection

Thermal kinetic energy overload protector automatically cuts power during current overloads. Features reusable operation without fuse replacement.

3. Functional Modules

Modular design with global standard compliance. Phosphor bronze components ensure reliable contact with 5000+ plug cycles. PCIABS plastic materials withstand 120°C with UL94-V0 fire rating.

4. Cable Options

Available in 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², and 32A 3*6mm² configurations.

5. Custom Branding

ODM/OEM logo printing available to meet specific requirements.

6. Aluminum Profile

High-quality aluminum alloy shell provides structural strength and efficient heat dissipation.

7. Flexible Installation

Designed for 360° installation in any orientation with multiple input options.

Technical Specifications
Countries Socket Type 15A UL
Rated Current 15A
Rated Voltage 125VAC
Max Continuous Voltage 220VAC
Unit Thickness 1U
Output Modules 8 way
Rack Size 19 inch
OEM/ODM YES
Color Black
Environment Temperature -40°C to +70°C
Material UL94V-0 PC module, Aluminum alloy
Fire Resistance UL 94V-0
Packing 1pc/plastic bag/inner box, 25pcs/carton
Related Zion PDU Products
Zion Code Name Code Description
7245301 ZC-1U03-3P-WN 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302 ZC-1U06-K-WN 1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303 ZC-1U06-K-3D-WN 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304 ZC-1U08-K-G-WN 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305 ZC-1U06-P-WN 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306 ZC-1U06-K-D-U-WN 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307 ZC-1U06-Z-P-WN 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308 ZC-1U06-L-WN16 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309 ZC-1U06-L-Z-WN16 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310 ZC-1U08-K-G-WN16 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal

Additional PDU models available - contact us for complete product catalog.
