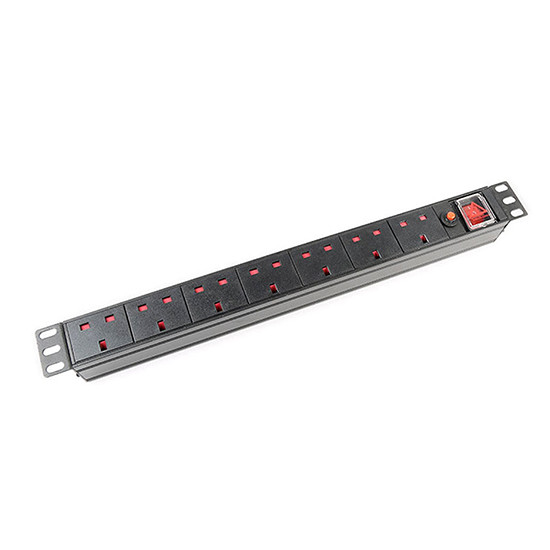

1U Thickness 7 Way Cabinet PDU with Overload Protection and Switch for Data Centers

1U Thickness 7 Way Cabinet PDU with Overload Protection and Switch for Data Centers
1U Thickness 7 Way Cabinet PDU with Overload Protection and Switch for Data Centers
Basic Information
Brand Name: Zion communication
Model Number: 1U 7 way Cabinet PDU
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 13A
Thickness Of The Unit: 1U Environment Temperature: -40~ +70°C
Highlight:

1U Thickness Cabinet PDU

,

7 Way Power Distribution Unit

,

Overload Protection PDU

Product Description

1U 7-Way Cabinet PDU with Switch and Overload Protection
250V, 13A UK Socket Type - Professional Power Distribution Unit for Data Centers and Enterprise Networks
Product Identification
Zion CodeZion Description
PDU-7245317 (ZC-1U07-K-G-UK)1U 7 way Cabinet PDU with Switch and Overload protection 250V, 13A UK
1U Thickness 7 Way Cabinet PDU with Overload Protection and Switch for Data Centers 0
Applications
  • Banking, securities, universities, municipal administration, medical care, electric power and other fields
  • Data Center and Enterprise networking infrastructure
PDU Module Overview
1U Thickness 7 Way Cabinet PDU with Overload Protection and Switch for Data Centers 1
Power Switch
Controls power on/off for the PDU to manage data system operations
Overload Protection
Thermal kinetic energy overload protector automatically cuts power during current overloads. Features reusable operation without fuse replacement - simply press the reset button after removing overload conditions.
Modular Socket Design
All functional modules feature modular construction with global standard compliance. Phosphor bronze components ensure reliable contact, corrosion resistance, and 5000+ plug cycle durability. PCIABS plastic materials withstand temperatures above 120°C with UL94-V0 fire-retardant rating.
Cable Options
Available with 10A 3×1.5mm², 16A 3×2.5mm², 25A 3×4mm², or 32A 3×6mm² power cords
Custom Branding
ODM/OEM logo printing available to meet specific customer requirements
Aluminum Alloy Housing
High-strength aluminum alloy shell provides structural integrity and efficient heat dissipation
Flexible Installation
Designed for 360° installation in any orientation to accommodate various cabinet configurations
Technical Specifications
Socket Type:13A UK
Rated Current:13A
Rated Voltage:250VAC 50/60Hz
Max Operating Voltage:320VAC
Unit Thickness:1U
Output Modules:7 way
Rack Size:19 inch
OEM/ODM:Available
Color:Black
Environmental Temp:-40°C to +70°C
Materials:UL94V-0 PC module, Aluminum alloy shell
Packing:1pc/plastic bag/inner box, 25pcs/carton
Vendor:Zion Communication / Hello Signal
Related PDU Products
Zion CodeName CodeDescription
7245301ZC-1U03-3P-WN1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302ZC-1U06-K-WN1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303ZC-1U06-K-3D-WN1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304ZC-1U08-K-G-WN1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305ZC-1U06-P-WN1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306ZC-1U06-K-D-U-WN1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307ZC-1U06-Z-P-WN1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308ZC-1U06-L-WN161U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309ZC-1U06-L-Z-WN161U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310ZC-1U08-K-G-WN161U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
7245311ZC-1U03-K-WN161U 3 way Cabinet PDU with Switch 250V,16A Universal
7245312ZC-1.5U06-L-WN161.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245313ZC-1U12-Z-UK1U 12 way Cabinet PDU with Power Light 250V,13A UK
7245314ZC-1.5U06-k-G-D-UK1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK
7245315ZC-1U06-K-G-UK1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245316ZC-1U08-UK1U 8 way Cabinet PDU with 250V,13A UK
7245317ZC-1U07-K-G-UK1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245318ZC-1U08-K-G-UL1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
7245319ZC-1.5U09-K-UL1.5U 9 way Cabinet PDU with Switch 125V,15A UL
7245320ZC-1.5U10-G-UL1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL
7245321ZC-1.5U12-K-UL1.5U 12 way Cabinet PDU with Switch 125V,15A UL
7245322ZC-1U06-K-G-U-UL1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL
7245323ZC-1U10-K-C131U 10 way Cabinet PDU with Switch IEC 250V,10A C13
7245324ZC-1U08-K-C131U 8 way Cabinet PDU with Switch IEC 250V,10A C13
7245325ZC-1U06-K-G-FRA1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France
7245326ZC-1.5U08-FRA1.5U 8 way Cabinet PDU 250V,16A France
7245327ZC-1U12-K-G-GER1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245328ZC-1U08-K-G-GER1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245329ZC-1.5U06-K-3D-GER1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German
