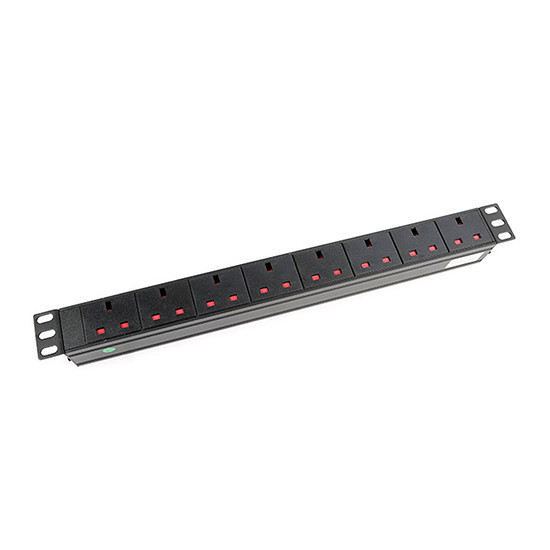

1U Thickness 8 Way Cabinet PDU Power Distribution Unit with 250V 13A UK Socket

1U Thickness 8 Way Cabinet PDU Power Distribution Unit with 250V 13A UK Socket
1U Thickness 8 Way Cabinet PDU Power Distribution Unit with 250V 13A UK Socket
Basic Information
Brand Name: Zion communication
Model Number: 1U 8 way Cabinet PDU
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 13A
Thickness Of The Unit: 1U Environment Temperature: -40~ +70°C
Highlight:

1U Thickness Cabinet PDU

,

8 Way Power Distribution Unit

,

250V 13A UK PDU

Product Description

1U 8 Way Cabinet PDU with 250V, 13A UK
Product Overview
Zion Code: PDU-7245316 (ZC-1U08-UK)
1U Thickness 8 Way Cabinet PDU Power Distribution Unit with 250V 13A UK Socket 0
Applications
  • Banking, securities, universities, municipal administration, medical care, electric power and other fields
  • Data Center
  • Enterprise networking
PDU Basic Module Overview
1U Thickness 8 Way Cabinet PDU Power Distribution Unit with 250V 13A UK Socket 1
Functional Module
Modular design with global socket compatibility. Phosphor bronze components ensure reliable contact with 5000+ plug cycles. PCIABS plastic materials with 120°C thermal deformation temperature and UL94-V0 fire resistance.
Cable Cord Options
10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², 32A 3*6mm² cables available.
Customization
Logo printing available for ODM/OEM requirements.
Profile & Installation
High-quality aluminum alloy shell for strength and heat dissipation. 360° installation capability with multiple input options.
Technical Specifications
Socket Type
13A UK
Length
19 inch
Rated Current
13A
Rated Voltage
250VAC 50/60Hz
Max Operating Voltage
320VAC
Unit Thickness
1U
Output Modules
8 way
OEM/ODM
Yes
Color
Black
Environment Temperature
-40°C to +70°C
Material
Uninflammable PC module UL94V-0, Aluminum alloy shell
Packing
1pc/plastic bag/inner box, 25pcs/carton
Related PDU Products
Zion Code Name Code Description
7245301ZC-1U03-3P-WN1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302ZC-1U06-K-WN1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303ZC-1U06-K-3D-WN1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304ZC-1U08-K-G-WN1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305ZC-1U06-P-WN1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306ZC-1U06-K-D-U-WN1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307ZC-1U06-Z-P-WN1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308ZC-1U06-L-WN161U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309ZC-1U06-L-Z-WN161U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310ZC-1U08-K-G-WN161U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
7245311ZC-1U03-K-WN161U 3 way Cabinet PDU with Switch 250V,16A Universal
7245312ZC-1.5U06-L-WN161.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245313ZC-1U12-Z-UK1U 12 way Cabinet PDU with Power Light 250V,13A UK
7245314ZC-1.5U06-k-G-D-UK1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK
7245315ZC-1U06-K-G-UK1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245316ZC-1U08-UK1U 8 way Cabinet PDU with 250V,13A UK
7245317ZC-1U07-K-G-UK1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245318ZC-1U08-K-G-UL1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
7245319ZC-1.5U09-K-UL1.5U 9 way Cabinet PDU with Switch 125V,15A UL
7245320ZC-1.5U10-G-UL1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL
7245321ZC-1.5U12-K-UL1.5U 12 way Cabinet PDU with Switch 125V,15A UL
7245322ZC-1U06-K-G-U-UL1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL
7245323ZC-1U10-K-C131U 10 way Cabinet PDU with Switch IEC 250V,10A C13
7245324ZC-1U08-K-C131U 8 way Cabinet PDU with Switch IEC 250V,10A C13
7245325ZC-1U06-K-G-FRA1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France
7245326ZC-1.5U08-FRA1.5U 8 way Cabinet PDU 250V,16A France
7245327ZC-1U12-K-G-GER1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245328ZC-1U08-K-G-GER1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245329ZC-1.5U06-K-3D-GER1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German
