1U Thickness 6 Way Cabinet PDU with Overload Protection and Switch for Data Centers

1U Thickness 6 Way Cabinet PDU with Overload Protection and Switch for Data Centers
1U Thickness 6 Way Cabinet PDU with Overload Protection and Switch for Data Centers
Basic Information
Brand Name: Zion communication
Model Number: 1U 6 way Cabinet PDU
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 13A
Thickness Of The Unit: 1U Environment Temperature: -40~ +70°C
Highlight:

1U Thickness Cabinet PDU

,

6 Way Power Distribution Unit

,

Overload Protection PDU

Product Description

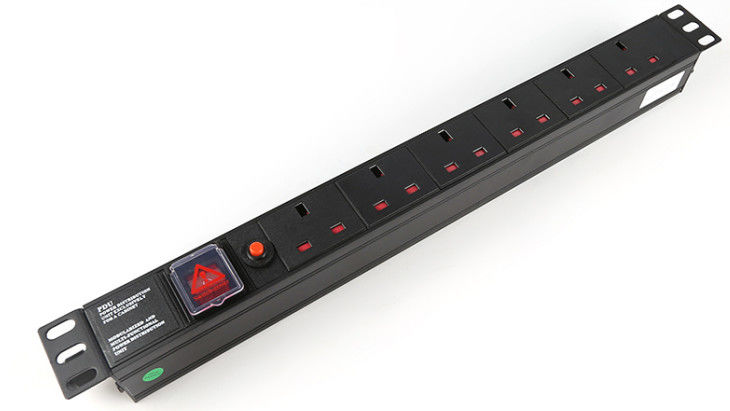

1U 6-Way Cabinet PDU with Switch and Overload Protection
Professional 250V, 13A UK power distribution unit designed for reliable data center and enterprise networking applications.
Product Identification
Zion Code Zion Description
PDU-7245315 (ZC-1U06-K-G-UK) 1U 6 way Cabinet PDU with Switch and Overload protection 250V, 13A UK
1U Thickness 6 Way Cabinet PDU with Overload Protection and Switch for Data Centers 0
Applications
  • Banking, securities, and financial institutions
  • Universities and educational facilities
  • Municipal administration and government offices
  • Medical care and healthcare facilities
  • Electric power and utility companies
  • Data Centers and Enterprise Networking
PDU Module Overview
1U Thickness 6 Way Cabinet PDU with Overload Protection and Switch for Data Centers 1
  • Switch: Controls power on/off for the PDU to manage data system operations
  • Overload Protection: Thermal kinetic energy overload protector automatically cuts power during current overloads and can be reset after overload removal
  • Functional Module: Modular design with globally compliant socket modules using phosphor bronze components for reliable contact and 5000+ plug cycles
  • Cable Cord: Multiple options available: 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², 32A 3*6mm²
  • LOGO Customization: ODM/OEM printing available per customer requirements
  • Profile: High-quality aluminum alloy shell for strength and heat dissipation
  • Installation: 360-degree orientation flexibility for versatile mounting
  • Power Input: Multiple input configurations including left/right side, front/rear, single/double input options
Technical Specifications
Parameter Specification
Countries Socket Type 13A UK
Rated Current 13A
Rated Voltage 250VAC 50/60Hz
Max. Continuous Operating Voltage 320VAC
Unit Thickness 1U
Output Module Number 6 way
OEM/ODM YES
Length 19 inch
Environment Temperature -40°C to +70°C
Material Uninflammable PC module UL94V-0, Aluminum alloy shell
Fire Resistance UL 94V-0
Color Black
Packing 1pc/plastic bag/inner box, 25pcs/carton
Vendor Name Zion Communication / Hello Signal
Related PDU Products
Zion Code Name Code Description
7245301 ZC-1U03-3P-WN 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302 ZC-1U06-K-WN 1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303 ZC-1U06-K-3D-WN 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304 ZC-1U08-K-G-WN 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305 ZC-1U06-P-WN 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306 ZC-1U06-K-D-U-WN 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307 ZC-1U06-Z-P-WN 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308 ZC-1U06-L-WN16 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309 ZC-1U06-L-Z-WN16 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310 ZC-1U08-K-G-WN16 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
