1.5U Thickness 6 Way Cabinet PDU with Overload Protection and 3D Light for Data Centers

Basic Information

Brand Name:	Zion communication
Model Number:	1.5U 6 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

1.5U Thickness Cabinet PDU

6 Way Output Power Distribution Unit

Overload Protection PDU

Product Description

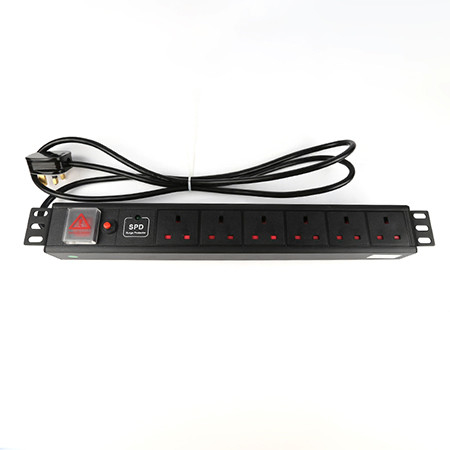

1.5U 6 Way Cabinet PDU with Switch and Overload Protection

Professional 6-outlet cabinet PDU featuring switch control, overload protection, and 3D lighting indicators. Rated for 250V, 13A UK sockets.

Product Identification

Zion Code	Zion Description
PDU-7245314 (ZC-1.5U06-K-G-D-UK)	1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK

Applications

Banking, securities, universities, municipal administration, medical care, electric power and other fields
Data Center; Enterprise networking

PDU Module Overview

1. Switch Control

Controls power on/off for the PDU to manage data system operation.

2. Three-Lamp Lighting Protection

Red LED: Indicates power is connected and filtering output is active
Green LED: Indicates failure of the lighting protection circuit
Yellow LED: Indicates absence of earth wire in power supply system

3. Overload Protection

Thermal kinetic energy overload protector automatically cuts power during current overload. Reset button restores normal operation after overload is removed - no fuse replacement required.

4. Functional Modules

Modular design with socket modules compliant with global standards. Phosphor bronze components ensure reliable contact with 5000+ plug cycles. PCIABS plastic materials withstand 120°C with UL94-V0 fire-retardant rating.

5. Cable Options

Available with 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², or 32A 3*6mm² cables.

6. Custom Branding

ODM/OEM logo printing available according to customer requirements.

7. Enclosure

High-quality aluminum alloy shell provides strength and efficient heat radiation.

8. Installation

Designed for 360° installation in any orientation with multiple input options.

Technical Specifications

Socket Type

13A UK

Rated Current

13A

Rated Voltage

250VAC 50/60Hz

Max Operating Voltage

320VAC

Unit Thickness

1.5U

Output Modules

6 way

Dimensions

19 inch

Filtration

Highly efficient

Environmental Temperature

-40°C to +70°C

Materials

Uninflammable PC module UL94V-0, Aluminum alloy shell

Fire Resistance

UL 94V-0

Packing

1pc/plastic bag/inner box, 25pcs/carton

Related PDU Products

Zion Code	Name Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
