Home > Products> Cabinet And Rack> 1U Thickness 12 Way Cabinet PDU with Power Light Indicator for Data Centers and Enterprise Networks

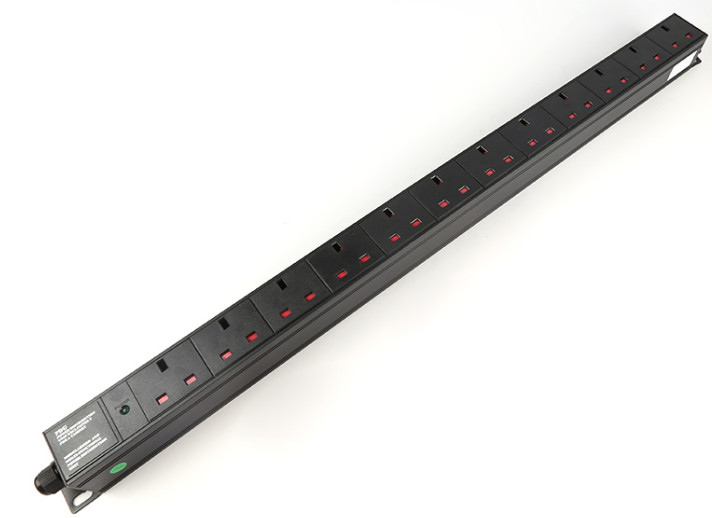

1U Thickness 12 Way Cabinet PDU with Power Light Indicator for Data Centers and Enterprise Networks

Basic Information

Brand Name:	Zion communication
Model Number:	1U 12 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

1U Thickness Cabinet PDU

12 Way Power Distribution Unit

Power Light Indicator PDU

Product Description

1U 12-Way Cabinet PDU with Power Light

Product Identification

Zion Code: PDU-7245313 (ZC-1U12-Z-UK)

Description: 1U 12 way Cabinet PDU with Power Light 250V, 13A UK

Applications

Banking, securities, and financial institutions
Universities and educational facilities
Municipal administration and government offices
Medical care and healthcare facilities
Electric power and utility companies
Data Centers and enterprise networking environments

PDU Module Overview

Power Light Indicator: Visual indicator for system power status with power button control
Modular Functional Design: Interchangeable socket modules compliant with global standards
Premium Components: Phosphor bronze contacts ensuring elasticity, wear-resistance, and corrosion resistance
Durability: Single-pole pull-and-plug life exceeding 5000 cycles
Thermal Performance: PC+ABS materials with thermal deformation temperature above 120°C
Safety Compliance: Fire-retardant characteristics meeting UL94-V0 standard
Cable Options: Available in 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², and 32A 3*6mm² configurations
Custom Branding: ODM/OEM logo printing available
Construction: High-quality aluminum alloy shell for strength and heat dissipation
Flexible Installation: 360-degree orientation capability
Input Options: Left/right side, front/rear, single/double side inputs available

Technical Specifications

Socket Type

13A UK

Rated Current

13A

Rated Voltage

250VAC 50/60Hz

Max Operating Voltage

320VAC

Unit Thickness

Output Modules

12 way

OEM/ODM

YES

Color

Black

Length

19 inch

Environment Temperature

-40°C to +70°C

Materials

Uninflammable PC module UL94V-0, Aluminum alloy shell

Fire Resistance

UL 94V-0

Packing

1pc/plastic bag/inner box, 25pcs/carton

Related PDU Products

Zion Code	Name Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
7245311	ZC-1U03-K-WN16	1U 3 way Cabinet PDU with Switch 250V,16A Universal
7245312	ZC-1.5U06-L-WN16	1.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245313	ZC-1U12-Z-UK	1U 12 way Cabinet PDU with Power Light 250V,13A UK
7245314	ZC-1.5U06-k-G-D-UK	1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK
7245315	ZC-1U06-K-G-UK	1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245316	ZC-1U08-UK	1U 8 way Cabinet PDU with 250V,13A UK
7245317	ZC-1U07-K-G-UK	1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK
7245318	ZC-1U08-K-G-UL	1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL
7245319	ZC-1.5U09-K-UL	1.5U 9 way Cabinet PDU with Switch 125V,15A UL
7245320	ZC-1.5U10-G-UL	1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL
7245321	ZC-1.5U12-K-UL	1.5U 12 way Cabinet PDU with Switch 125V,15A UL
7245322	ZC-1U06-K-G-U-UL	1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL
7245323	ZC-1U10-K-C13	1U 10 way Cabinet PDU with Switch IEC 250V,10A C13
7245324	ZC-1U08-K-C13	1U 8 way Cabinet PDU with Switch IEC 250V,10A C13
7245325	ZC-1U06-K-G-FRA	1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France
7245326	ZC-1.5U08-FRA	1.5U 8 way Cabinet PDU 250V,16A France
7245327	ZC-1U12-K-G-GER	1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245328	ZC-1U08-K-G-GER	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German
7245329	ZC-1.5U06-K-3D-GER	1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German
