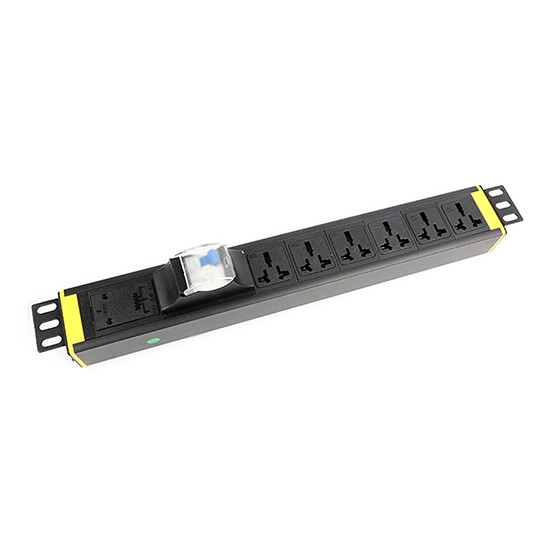

1.5U 6 Way Cabinet PDU with Earth Leakage Protection and Universal 250V 16A Power Distribution Unit

Basic Information

Brand Name:	Zion communication
Model Number:	1.5U 6 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

Earth Leakage protection Cabinet PDU

1.5U thickness Power Distribution Unit

6 way output PDU

Product Description

1.5U 6 Way Cabinet PDU with Earth Leakage Protection

250V, 16A Universal Power Distribution Unit with advanced safety features for industrial and data center applications.

Product Identification

Zion Code	Zion Description
PDU-7245312 (ZC-1.5U06-L-WN16)	1.5U 6 way Cabinet PDU with Earth Leakage protection 250V, 16A Universal

Applications

Banking, securities, universities, municipal administration, medical care, electric power sectors
Data Centers and Enterprise Networking Environments

PDU Basic Module Overview

Key Features

Earth Leakage Protection: Automatically detects current imbalance between live and neutral wires, cutting power when leakage exceeds set values to eliminate safety hazards
Modular Design: All functional modules feature standardized construction with socket modules compliant with global standards
Premium Materials: Phosphor bronze components ensure excellent elasticity, wear-resistance, and corrosion resistance with 5000+ plug cycle durability
Fire Safety: PCIABS plastic materials with thermal deformation temperature above 120°C and UL94-V0 fire-retardant certification
Cable Options: Available in 10A 3×1.5mm², 16A 3×2.5mm², 25A 3×4mm², and 32A 3×6mm² configurations
Custom Branding: ODM/OEM logo printing available upon request
Durable Construction: High-quality aluminum alloy shell for superior strength and heat dissipation
Flexible Installation: 360-degree mounting capability for versatile deployment
Input Options: Multiple configurations including left/right side, front/rear, single/double side inputs

Technical Specifications

Socket Type: 16A Universal

Rated Current: 16A

Rated Voltage: 250VAC 50/60Hz

Max Operating Voltage: 320VAC

Unit Thickness: 1.5U

Output Modules: 6 way

OEM/ODM: Available

Color: Black

Mounting Size: 19 inch standard

Filtration: Highly efficient alternative

Vendor: Zion Communication / Hello Signal

Safety Feature: Earth Leakage protection

Operating Temperature: -40°C to +70°C

Materials: Uninflammable PC module UL94V-0, Aluminum alloy shell

Fire Resistance: UL 94V-0 certified

Packaging: 1pc/plastic bag/inner box, 25pcs/carton

Related PDU Products

Zion Communication offers a comprehensive range of power distribution units to meet diverse application requirements:

Zion Code	Name Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
