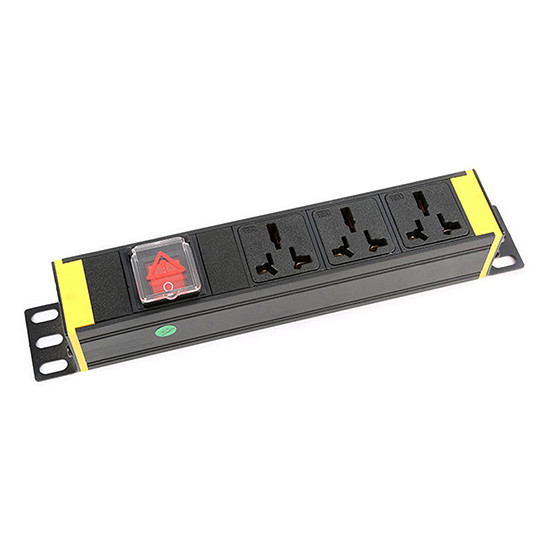

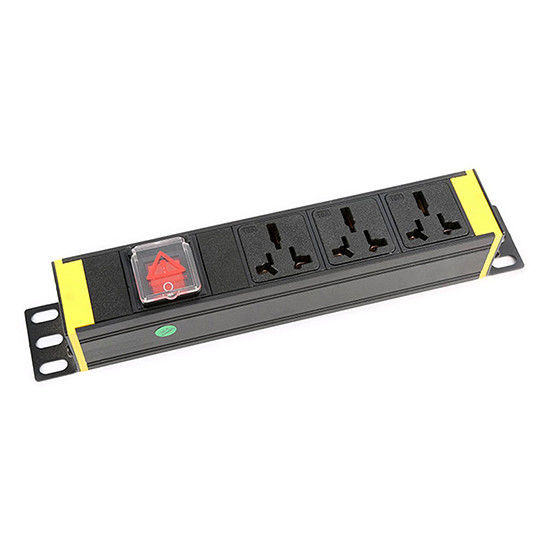

1U Thickness 3 Way Output Cabinet PDU with Switch 250V 16A Universal Power Distribution Unit

Basic Information

Brand Name:	Zion communication
Model Number:	1U 3 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

1U Thickness Cabinet PDU

3 Way Output PDU

250V 16A Power Distribution Unit

Product Description

1U 3 Way Cabinet PDU with Switch

250V, 16A Universal Power Distribution Unit

Product Identification

Zion Code	Zion Description
PDU-7245311 (ZC-1U03-K-WN16)	1U 3 way Cabinet PDU with Switch 250V, 16A Universal

Applications

Banking, securities, universities, municipal administration, medical care, electric power and other fields
Data Center and Enterprise networking environments

PDU Module Overview

Power Switch

Controls power on/off to manage data system operation

Modular Design

All functional modules feature modular construction with global standard compliance

Premium Materials

Phosphor bronze components ensure reliable contact with 5000+ plug cycles

Cable Options

Available in 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², 32A 3*6mm² configurations

Custom Branding

ODM/OEM logo printing available to meet specific requirements

Aluminum Alloy Housing

High-strength shell provides excellent heat dissipation and durability

Flexible Installation

Designed for 360° orientation installation with multiple input options

Technical Specifications

Socket Type: 16A Universal

Rack Size: 19 inch

Rated Current: 16A

Rated Voltage: 250VAC 50/60Hz

Max Operating Voltage: 320VAC

Unit Thickness: 1U

Output Modules: 3 way

OEM/ODM: Available

Color: Black

Environmental Temp: -40°C to +70°C

Materials: UL94V-0 PC module, Aluminum alloy

Fire Rating: UL 94V-0 compliant

Manufacturer: Zion Communication / Hello Signal

Related PDU Products

Zion Code	Model Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
