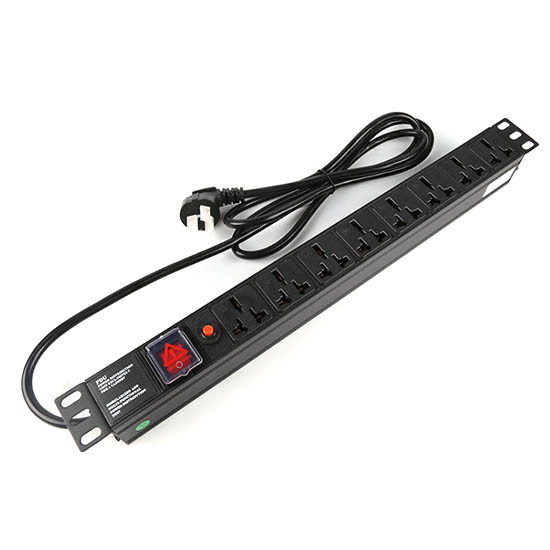

1U Thickness 8 Way Cabinet PDU with Overload Protection and Switch for Data Centers

1U Thickness 8 Way Cabinet PDU with Overload Protection and Switch for Data Centers
1U Thickness 8 Way Cabinet PDU with Overload Protection and Switch for Data Centers
Basic Information
Brand Name: Zion communication
Model Number: 1U 8 way Cabinet PDU
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 16A
Thickness Of The Unit: 1U Environment Temperature: -40~ +70°C
Highlight:

1U Thickness Cabinet PDU

,

8 Way Output Power Distribution Unit

,

Overload Protection PDU

Product Description

1U 8 Way Cabinet PDU with Switch and Overload Protection
250V, 16A Universal Power Distribution Unit
Product Identification
Zion Code Zion Description
PDU-7245310 (ZC-1U08-K-G-WN16) 1U 8 way Cabinet PDU with Switch and Overload protection 250V, 16A Universal
1U Thickness 8 Way Cabinet PDU with Overload Protection and Switch for Data Centers 0
Applications
  • Banking, securities, universities, municipal administration, medical care, electric power and other fields
  • Data Center and Enterprise networking environments
PDU Basic Module Overview
1U Thickness 8 Way Cabinet PDU with Overload Protection and Switch for Data Centers 1
Switch Control
Enables power on/off control for the PDU to manage data system operations
Overload Protection
Thermal kinetic energy overload protector automatically cuts power during current overloads. Features reusable operation without fuse replacement.
Modular Functional Design
Universal socket modules compatible with global standards. Phosphor bronze components ensure reliable contact with 5000+ plug cycles. PCIABS plastic materials withstand 120°C with UL94-V0 fire rating.
Cable Options
Available in 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², and 32A 3*6mm² configurations
Custom Branding
ODM/OEM logo printing available according to customer requirements
Aluminum Alloy Construction
High-strength shell provides excellent heat dissipation and durability
Flexible Installation
Designed for 360° orientation installation with multiple input options
Technical Specifications
Socket Type: 16A Universal
Rack Size: 19 inch
Rated Current: 16A
Rated Voltage: 250VAC 50/60Hz
Max Operating Voltage: 320VAC
Unit Thickness: 1U
Output Modules: 8 way
OEM/ODM: Available
Color: Black
Filtration: Highly efficient
Vendor: Zion Communication / Hello Signal
Additional Functions: Switch and Overload protection
Operating Temperature: -40°C to +70°C
Materials: Uninflammable PC module UL94V-0, Aluminum alloy shell
Fire Resistance: UL 94V-0
Packaging: 1pc/plastic bag/inner box, 25pcs/carton
Related PDU Products
Zion Communication offers a comprehensive range of PDU solutions including:
Zion Code Name Code Description
7245301 ZC-1U03-3P-WN 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302 ZC-1U06-K-WN 1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303 ZC-1U06-K-3D-WN 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304 ZC-1U08-K-G-WN 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305 ZC-1U06-P-WN 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306 ZC-1U06-K-D-U-WN 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307 ZC-1U06-Z-P-WN 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308 ZC-1U06-L-WN16 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309 ZC-1U06-L-Z-WN16 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310 ZC-1U08-K-G-WN16 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
... and 18 additional PDU models available
