1U 6 Way Cabinet PDU with Earth Leakage Protection and Power Light for Data Centers

Basic Information

Brand Name:	Zion communication
Model Number:	1U 6 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

Earth Leakage protection Cabinet PDU

1U Thickness Power Distribution Unit

6 Way Output PDU

Product Description

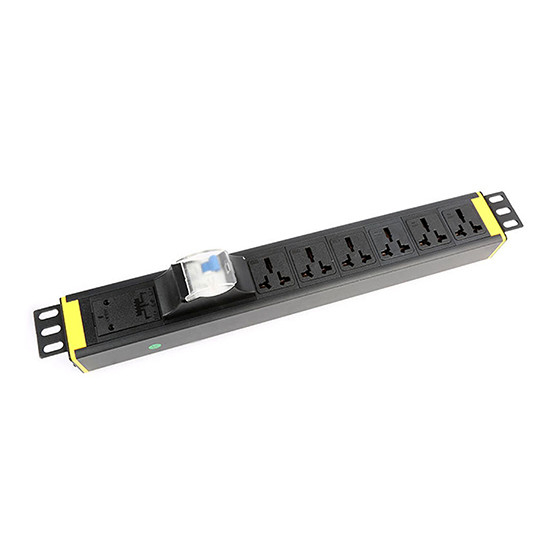

1U 6 Way Cabinet PDU with Earth Leakage Protection and Power Light

This 250V, 16A Universal Cabinet Power Distribution Unit features earth leakage protection and power status indication, designed for reliable power management in data centers and enterprise environments.

Product Identification

Zion Code	Zion Description
PDU-7245309 (ZC-1U06-L-Z-WN16)	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V, 16A Universal

Applications

Banking, securities, universities, municipal administration, medical care, electric power and other fields
Data Centers and Enterprise Networking

PDU Basic Module Overview

Power Light: Indicator light displays power status of the system with power button control for input management
Earth Leakage Protection: Compares live and neutral wire currents; automatically trips and grounds circuit when current difference reaches set value to eliminate safety hazards
Functional Module: Modular design with global standard socket compatibility; phosphor bronze components ensure reliable contact with 5000+ plug cycles; PCIABS plastic materials withstand 120°C with UL94-V0 fire resistance
Cable Cord: Optional configurations: 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², or 32A 3*6mm²
LOGO Customization: ODM/OEM printing available according to requirements
Profile: High-quality aluminum alloy shell for strength and heat dissipation
Installation: 360° orientation flexibility for versatile mounting
Power Input: Multiple input options: left/right side, front/rear, single/double side, and socket input

Main Product Parameters

Parameter	Specification
Countries Socket Type	16A Universal
Rated Current	16A
Rated Voltage	250VAC 50/60Hz
Max. Continuous Operating Voltage	320VAC
Thickness of the Unit	1U
Output Module Number	6 way
OEM/ODM	YES
Color	Black
The Length of Size	19 inch
Alternative Filtration	Highly efficient
Vendor Name	Zion Communication / Hello Signal
Incidental Function	Earth Leakage protection and Power Light
Environment Temperature	-40°C to +70°C
Material	Uninflammable PC module UL94V-0, Aluminium alloy shell
Fire Resistance	Up to UL 94V-0
Packing	1pc/plastic bag/inner box, 25pcs/carton

Zion Communication's Hot PDU Types

7245301

ZC-1U03-3P-WN - 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal

7245302

ZC-1U06-K-WN - 1U 6 way Cabinet PDU with Switch 250V,10A Universal

7245303

ZC-1U06-K-3D-WN - 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal

7245304

ZC-1U08-K-G-WN - 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal

7245305

ZC-1U06-P-WN - 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal

7245306

ZC-1U06-K-D-U-WN - 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal

7245307

ZC-1U06-Z-P-WN - 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal

7245308

ZC-1U06-L-WN16 - 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal

7245309

ZC-1U06-L-Z-WN16 - 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal

7245310

ZC-1U08-K-G-WN16 - 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
