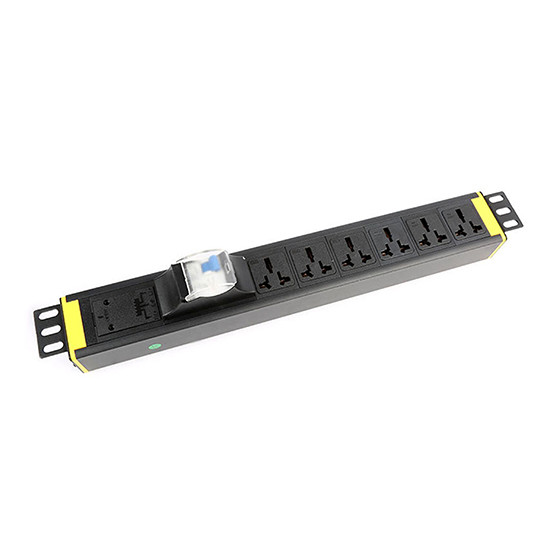

1U Thickness 6 Way Cabinet PDU with Earth Leakage Protection and 16A Rated Current for Data Centers

Basic Information

Brand Name:	Zion communication
Model Number:	1U 6 way Cabinet PDU

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

Earth Leakage protection Cabinet PDU

1U Thickness Power Distribution Unit

16A Rated Current PDU

Product Description

1U 6 Way Cabinet PDU with Earth Leakage Protection

250V, 16A Universal Power Distribution Unit

Product Identification

Zion Code	Zion Description
PDU-7245308(ZC-1U06-L-WN16)	1U 6 way Cabinet PDU with Earth Leakage protection 250V, 16A Universal

Applications

Banking, securities, universities, municipal administration, medical care, electric power and other fields
Data Center and Enterprise networking environments

PDU Basic Module Overview

Earth Leakage Protection

The leakage protector monitors current differential between live and neutral wires. When the difference reaches the set threshold, the protector automatically trips to cut off the circuit and ground simultaneously, eliminating potential safety hazards.

Modular Functional Design

All functional modules feature modular construction with socket modules compliant with global standards. Components use phosphor bronze for elasticity, wear-resistance, and corrosion resistance, ensuring reliable contact and 5000+ plug cycles.

Cable Options

Available with 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², or 32A 3*6mm² power cords.

Customization

Logo printing available for ODM/OEM requirements. High-quality aluminum alloy shell ensures strength and optimal heat dissipation.

Flexible Installation

Designed for installation in any orientation (360°). Multiple input options including left/right-side, front/rear, single/double input configurations.

Technical Specifications

Socket Type 16A Universal

Rack Size 19 inch

Rated Current 16A

Rated Voltage 250VAC 50/60Hz

Max Operating Voltage 320VAC

Unit Thickness 1U

Output Modules 6 way

OEM/ODM Yes

Color Black

Environment Temperature -40°C to +70°C

Materials UL94V-0 PC module, Aluminum alloy shell

Fire Resistance UL 94V-0 compliant

Packing 1pc/plastic bag/inner box, 25pcs/carton

Related PDU Products

Zion Code	Name Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
