1U Thickness 8 Way Cabinet PDU with Overload Protection and Switch for Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	1U 8 way Cabinet PDU

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

1U Thickness Cabinet PDU

8 Way Power Distribution Unit

Overload Protection PDU

Product Description

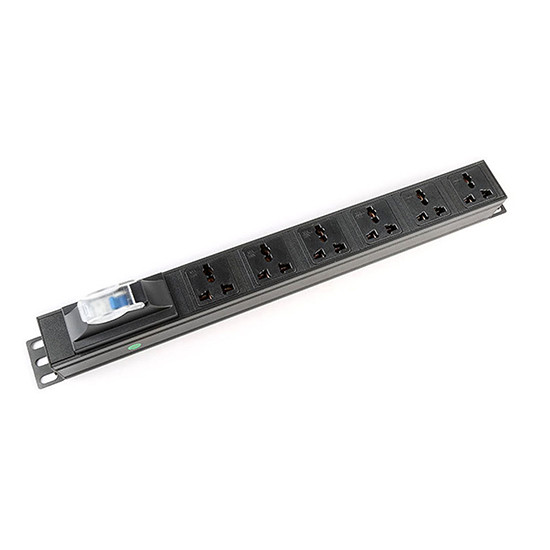

1U 8 Way Cabinet PDU with Switch and Overload Protection

250V, 10A Universal Power Distribution Unit

Product Identification

PDU-7245305 (ZC-1U06-P-WN) - 1U 6 way Cabinet PDU with Switch and 1P Air Circuit Breaker

Applications

Banking, securities, universities, municipal administration, medical care, electric power sectors
Data Centers and Enterprise Networking Environments

PDU Basic Module Overview

1P Air Circuit Breaker: Provides reliable protection by making, breaking, and carrying rated working current, while quickly breaking the circuit during overload, short circuit, or undervoltage conditions.

Functional Module: Modular design with power socket modules compliant with global standards. Components made with phosphor bronze for elasticity, wear-resistance, and corrosion resistance. Single-pole pull-and-plug life exceeds 5000 cycles.

Cable Cord Options: Available in 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², and 32A 3*6mm² configurations.

Custom Branding: ODM/OEM logo printing available according to customer requirements.

Profile Construction: High-quality aluminum alloy outer shell ensures structural strength and optimal heat dissipation.

Installation Flexibility: Designed for installation in any orientation (360° rotation capability).

Power Input Options: Configurable as left-side/right-side input, front/rear input, single side single/double input, double side single/double input, and socket input.

Technical Specifications

Countries Socket Type	10A Universal
Unit Length	19 inch
Rated Current	10A
Rated Voltage	250VAC 50/60Hz
Max. Continuous Operating Voltage	320VAC
Unit Thickness	1U
Output Module Number	6 way
OEM/ODM Support	YES
Color	Black
Alternative Filtration	Highly efficient
Vendor	Zion Communication / Hello Signal
Incidental Function	Switch and 1P air circuit breaker
Operating Temperature	-40°C to +70°C
Material	Uninflammable PC module UL94V-0, Aluminum alloy shell
Fire Resistance	UL 94V-0 compliant
Packing	1pc/plastic bag/inner box, 25pcs/carton

Related PDU Products

Zion Code	Name Code	Description
7245301	ZC-1U03-3P-WN	1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302	ZC-1U06-K-WN	1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303	ZC-1U06-K-3D-WN	1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304	ZC-1U08-K-G-WN	1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305	ZC-1U06-P-WN	1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306	ZC-1U06-K-D-U-WN	1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307	ZC-1U06-Z-P-WN	1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308	ZC-1U06-L-WN16	1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309	ZC-1U06-L-Z-WN16	1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310	ZC-1U08-K-G-WN16	1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
