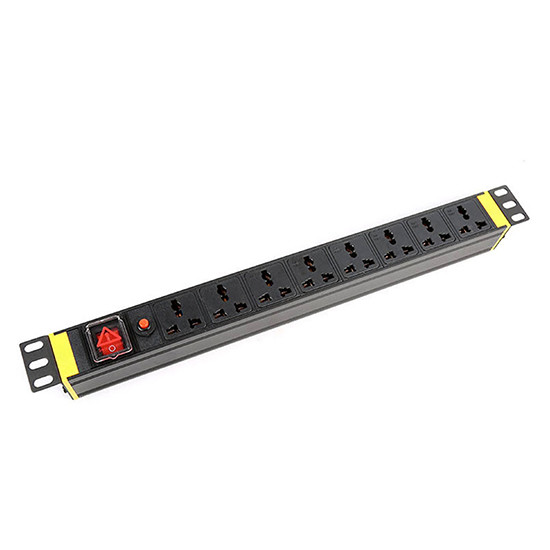

1U Thickness 8 Way Output Cabinet PDU with Overload Protection and Switch for Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	1U 8 way Cabinet PDU

Minimum Order Quantity:	20pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

The Length Of Size:

19 Inch

Rated Current:

Thickness Of The Unit:

Environment Temperature:

-40~ +70°C

Highlight:

1U Thickness Cabinet PDU

8 Way Output Power Distribution Unit

Overload Protection PDU

Product Description

1U 8 Way Cabinet PDU with Switch and Overload Protection

250V, 10A Universal Power Distribution Unit designed for reliable power management in data centers and enterprise environments.

Product Specifications

Zion Code	PDU-7245304 (ZC-1U08-K-G-WN)
Rated Current	10A
Rated Voltage	250VAC 50/60Hz
Max Continuous Operating Voltage	320VAC
Unit Thickness	1U
Output Modules	8 way
Socket Type	10A Universal
Dimensions	19 inch standard rack mount
Operating Temperature	-40°C to +70°C
Materials	UL94V-0 fire-resistant PC module, Aluminum alloy shell

Key Applications

Banking and financial institutions
Securities and trading facilities
Universities and educational institutions
Municipal administration centers
Healthcare and medical facilities
Electric power systems
Data Centers and Enterprise Networking

Product Features

Power Switch

Controls power on/off for complete system operation management

Overload Protection

Thermal kinetic energy overload protector automatically cuts power during current overloads, with reset capability for repeated use

Modular Design

All functional modules feature modular construction with global standard compliance

Durable Components

Phosphor bronze sockets ensure reliable contact with 5000+ plug cycles

Custom Cable Options

Available in 10A 3*1.5mm², 16A 3*2.5mm², 25A 3*4mm², and 32A 3*6mm² configurations

Brand Customization

ODM/OEM logo printing available to meet specific requirements

Robust Construction

High-quality aluminum alloy shell provides strength and optimal heat dissipation

Flexible Installation

Designed for 360° orientation installation with multiple input options
