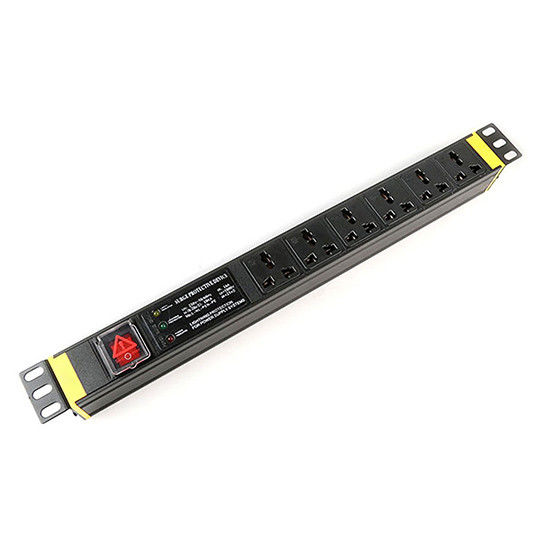

1U Thickness 6 Way Cabinet PDU with Switch and 3D Light for Data Centers

1U Thickness 6 Way Cabinet PDU with Switch and 3D Light for Data Centers
1U Thickness 6 Way Cabinet PDU with Switch and 3D Light for Data Centers
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: 1U 6 way Cabinet PDU
Minimum Order Quantity: 20pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
The Length Of Size: 19 Inch Rated Current: 10A
Thickness Of The Unit: 1U Environment Temperature: -40~ +70°C
Highlight:

1U Thickness Cabinet PDU

,

6 Way Power Distribution Unit

,

3D Light PDU

Product Description

1U 6 Way Cabinet PDU with Switch and 3D Light
250V, 10A Universal Power Distribution Unit
Product Identification
Zion Code Zion Description
7245303 (ZC-1U06-K-3D-WN) 1U 6 way Cabinet PDU with Switch and 3D Light 250V, 10A Universal
1U Thickness 6 Way Cabinet PDU with Switch and 3D Light for Data Centers 0
Applications
  • Banking, securities, universities, municipal administration, medical care, electric power and other fields
  • Data Center and Enterprise networking infrastructure
PDU Module Overview
1U Thickness 6 Way Cabinet PDU with Switch and 3D Light for Data Centers 1
1. Power Switch
Controls power on/off to manage data system operation
2. Three-Lamp Lightning Protection
Red LED: Power connected and filtering output active
Green LED: Lightning protection circuit failure
Yellow LED: Ground wire missing in power supply system
3. Modular Functional Design
Modular structure with global standard compliance
Phosphor bronze components for elasticity and corrosion resistance
5000+ plug cycle durability
PC+ABS materials with 120°C thermal deformation temperature
UL94-V0 fire-retardant certification
4. Cable Options
10A 3×1.5mm², 16A 3×2.5mm²,
25A 3×4mm², 32A 3×6mm²
5. Custom Branding
ODM/OEM logo printing available
6. Aluminum Alloy Housing
High-strength shell with excellent heat dissipation
7. Flexible Installation
360° orientation capability for versatile mounting
8. Power Input Options
Left/right side, front/rear input
Single/double input configurations
Socket input variations
Technical Specifications
Parameter Specification
Countries Socket Type 10A Universal
Rated Current 10A
Rated Voltage 250VAC 50/60Hz
Max Continuous Operating Voltage 320VAC
Unit Thickness 1U
Output Modules 6 way
OEM/ODM Support YES
Color Black
Length 19 inch
Filtration Highly efficient
Vendor Zion Communication / Hello Signal
Additional Functions Switch and Three-Lamp Lightning Protection
Operating Temperature -40°C to +70°C
Materials UL94V-0 PC module, Aluminum alloy shell
Fire Resistance UL 94V-0 compliant
Packaging 1pc/plastic bag/inner box, 25pcs/carton
Related PDU Products
Zion Code Name Code Description
7245301 ZC-1U03-3P-WN 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal
7245302 ZC-1U06-K-WN 1U 6 way Cabinet PDU with Switch 250V,10A Universal
7245303 ZC-1U06-K-3D-WN 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal
7245304 ZC-1U08-K-G-WN 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245305 ZC-1U06-P-WN 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal
7245306 ZC-1U06-K-D-U-WN 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal
7245307 ZC-1U06-Z-P-WN 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal
7245308 ZC-1U06-L-WN16 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal
7245309 ZC-1U06-L-Z-WN16 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal
7245310 ZC-1U08-K-G-WN16 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal
