| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | 1U 3 way Cabinet PDU |
| Minimum Order Quantity: | 20pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| The Length Of Size: | 19 Inch | Rated Current: | 10A |
|---|---|---|---|
| Thickness Of The Unit: | 1U | Environment Temperature: | -40~ +70°C |
| Zion Code | Zion Description | |||||||

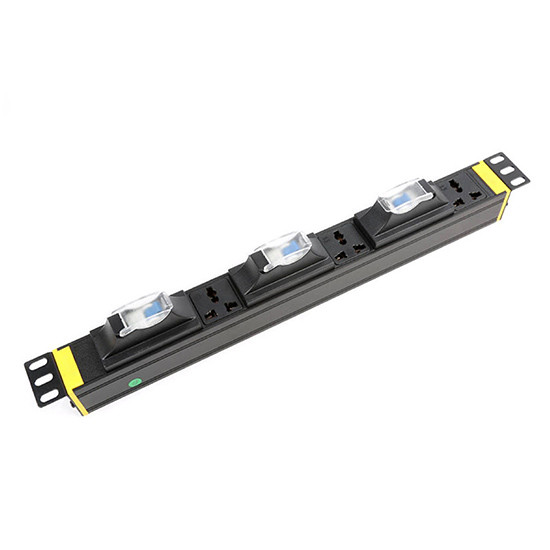

| 7245301(ZC-1U03-3P-WN) | 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal | |||||||
● Banking, securities, universities, municipal administration, medical care, electric power and other fields
● Data Center; Enterprise networking
| ● 1. 3P Air Switch Module:There are three terminals, all of which are connected to the “fire” line. This switch is suitable for controlling three-phase 380V voltage lines. | ||||||||
| ● 2. Functional Module:ALL functional modules are designed and manufactured in accordance with modularized structure. The product is equipped with supply socket modules compliant with different systems and standards in the world.It can satisfy the needs of clients in different regions or countries. Components or parts subordinate to the power socket are made with phosphor bronze,which is famous for its elasticity,wear-resistance,diamagnetism and corrosion resistance.We ensure reliable contact and a single-pole pull-and-plug life at 5000 times and above.Our products also offer reliable operation,electric conductivity and connectivity with no loosening of strike.All functional modules are made with PCIABS plastic materials,and can achieve a thermal deformation temperature above 120 Celsius. Their fire-retardant characteristic is compliant with UL94-VO standard. |
||||||||
| ● 3. Cable Cord:Optional 10A 3*1.5mm2 cable, 16A 3*2.5mm2 cable, 25A 3*4mm2 cable, 32A 3*6mm2 cable. | ||||||||
| ● 4. LOGO Customize:Print LOGO according to requirement ODM/OEM. | ||||||||
| ● 5. Profile:The outer shell is made with highquality aluminum alloy to ensure high strength and heat radiation. | ||||||||
| ● 6. Installation:Designe d to be inst all ed in any orientation (360.) | ||||||||
| ● Power Input:Optional left-side input/right-side input, front input/rear input, single side single/doubel input, double side single/double input, and socket input. |
| Countries Socket Type | 10A Universal | The Length of Size | 19 inch | |||||
| Rated Current | 10A | Alternative filtration | Highly efficient | |||||
| Rated Voltage | 250VAC 50/60Hz | Vendor Name | Zion Communication /Hello Signal | |||||
| Max. Continuous operating voltage UC | 320VAC | Incidental function | 3P air circuit breaker | |||||
| Thickness of the Unit | 1U | Environment temperature | -40~ +70°C | |||||
| Output Module Number | 3 way | Material | Uninflammable PC module UL94V-0, Aluminium alloy shell | |||||
| OEM/ODM | YES | Fire resistance | Up to UL 94V-0 | |||||
| Color | Black | Packing | 1pc/plastic bag/inner box 25pcs/carton |
|||||
| Zion Code | Name Code | Zion Description | ||||||
| 7245301 | ZC-1U03-3P-WN | 1U 3 way Cabinet PDU with 3P air circuit breaker 250V,10A Universal | ||||||
| 7245302 | ZC-1U06-K-WN | 1U 6 way Cabinet PDU with Switch 250V,10A Universal | ||||||
| 7245303 | ZC-1U06-K-3D-WN | 1U 6 way Cabinet PDU with Switch and 3D Light 250V,10A Universal | ||||||
| 7245304 | ZC-1U08-K-G-WN | 1U 8 way Cabinet PDU with Switch and Overload protection 250V,10A Universal | ||||||
| 7245305 | ZC-1U06-P-WN | 1U 6 way Cabinet PDU with Switch and Overload protection 250V,10A Universal | ||||||
| 7245306 | ZC-1U06-K-D-U-WN | 1U 6 way Cabinet PDU with S1P air circuit breaker 250V,10A Universal | ||||||
| 7245307 | ZC-1U06-Z-P-WN | 1U 6 way Cabinet PDU with Power Light and 1P air circuit breaker 250V,10A Universal | ||||||
| 7245308 | ZC-1U06-L-WN16 | 1U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal | ||||||
| 7245309 | ZC-1U06-L-Z-WN16 | 1U 6 way Cabinet PDU with Earth Leakage protection and Power Light 250V,16A Universal | ||||||
| 7245310 | ZC-1U08-K-G-WN16 | 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A Universal | ||||||
| 7245311 | ZC-1U03-K-WN16 | 1U 3 way Cabinet PDU with Switch 250V,16A Universal | ||||||
| 7245312 | ZC-1.5U06-L-WN16 | 1.5U 6 way Cabinet PDU with Earth Leakage protection 250V,16A Universal | ||||||
| 7245313 | ZC-1U12-Z-UK | 1U 12 way Cabinet PDU with Power Light 250V,13A UK | ||||||
| 7245314 | ZC-1.5U06-k-G-D-UK | 1.5U 6 way Cabinet PDU with Switch and Overload protection and 3D Light 250V,13A UK | ||||||
| 7245315 | ZC-1U06-K-G-UK | 1U 6 way Cabinet PDU with Switch and Overload protection 250V,13A UK | ||||||
| 7245316 | ZC-1U08-UK | 1U 8 way Cabinet PDU with 250V,13A UK | ||||||
| 7245317 | ZC-1U07-K-G-UK | 1U 7 way Cabinet PDU with Switch and Overload protection 250V,13A UK | ||||||
| 7245318 | ZC-1U08-K-G-UL | 1U 8 way Cabinet PDU with Switch and Overload protection 125V,15A UL | ||||||
| 7245319 | ZC-1.5U09-K-UL | 1.5U 9 way Cabinet PDU with Switch 125V,15A UL | ||||||
| 7245320 | ZC-1.5U10-G-UL | 1.5U 10 way Cabinet PDU with Overload protection 125V,15A UL | ||||||
| 7245321 | ZC-1.5U12-K-UL | 1.5U 12 way Cabinet PDU with Switch 125V,15A UL | ||||||
| 7245322 | ZC-1U06-K-G-U-UL | 1U 6 way Cabinet PDU with Switch and Overload protection and USB 125V,15A UL | ||||||
| 7245323 | ZC-1U10-K-C13 | 1U 10 way Cabinet PDU with Switch IEC 250V,10A C13 | ||||||
| 7245324 | ZC-1U08-K-C13 | 1U 8 way Cabinet PDU with Switch IEC 250V,10A C13 | ||||||
| 7245325 | ZC-1U06-K-G-FRA | 1U 6 way Cabinet PDU with Switch and Overload protection 250V,16A France | ||||||
| 7245326 | ZC-1.5U08-FRA | 1.5U 8 way Cabinet PDU 250V,16A France | ||||||
| 7245327 | ZC-1U12-K-G-GER | 1U 12 way Cabinet PDU with Switch and Overload protection 250V,16A German | ||||||
| 7245328 | ZC-1U08-K-G-GER | 1U 8 way Cabinet PDU with Switch and Overload protection 250V,16A German | ||||||
| 7245329 | ZC-1.5U06-K-3D-GER | 1.5U 6 way Cabinet PDU with Switch and 3D Light 250V,16A German | ||||||
