Unshielded Cat5E Modular Plug with Pass Through Design and Phosphor Bronze Contacts for RJ45 Connector

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024006

Categories:

Cat5e Plug

Highlight:

Crystal Head Modular Plug

Cat5e Modular Plug

Unshielded Modular Plug

Product Description

Unshielded Cat5E Modular Plug UTP 8P8C PT RJ45 Connector

Cat5E UTP 8P8C PT RJ45 Connector, Plug Accessories
From China Manufacturer - Zion Communication
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html

Product Identification

Part Number	7024006 \| ZC-MP5E88URPT
Description	Modular Plug, 8P/8C, CAT5E, unshielded, round, Pass Through 4.7-5.2 mm cable jack OD, 8-position, crystal head, 100/bag

Product Visuals

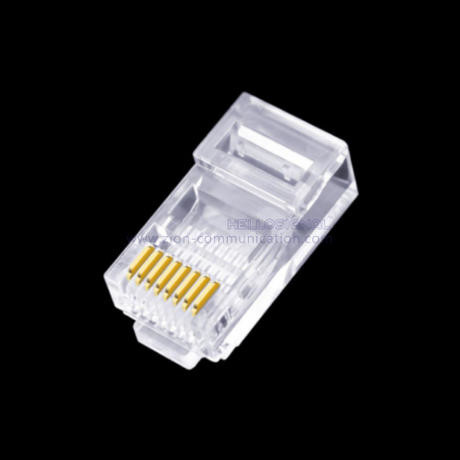

Physical Photo

Dimensional Structure

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Pass fluke test	Compliant

General Specifications

Cable Type	Round, Pass Through, unshielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Package Quantity	100
Packaging Type	Bag \| Box \| Carton
Positions/loaded Contacts	8P/8C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-24 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Copper Alloy
Plug Shield Plating Material	Nickel

Regulatory Compliance & Certifications

RoHS 2011/65/EU

Compliant

Order Information

Label	Can be customized
Delivery time	Normally 15 working days
Brand	Hellosignal ®
OEM	Yes
Email	info@zion-communication.com
