CAT7 FTP RJ45 Connector with Fix Tail Clamp and 8P8C FTC 145 Phosphor Bronze Contact Modular Plug

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024016

Categories:

Cat 7 Plug

Highlight:

8P8C RJ45 Connector Plug

UL RJ45 Connector Plug

CAT7 RJ45 Connector Plug

Product Description

CAT7 FTP 8P8C FTC 145 RJ45 Connector Plug Fix Tail Clamp

CAT7 FTP Fix Tail Clamp 8P8C FTC 145 RJ45 Connector Plug Accessories from China Manufacturer - Zion Communication

More details please visit:
Copper System Equipment

Product Information

Part Number	7024016 \| ZC-MP7-88SR145
Product Type	Modular Plug, 8P/8C, CAT7, Round, Fix Tail Clamp
Configuration	8-position, 1.45mm Insulation OD, crystal head, 100/bag

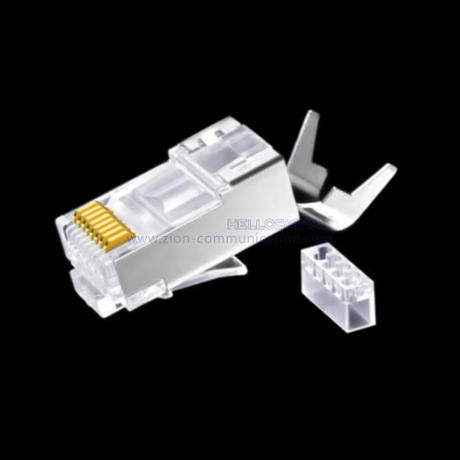

Physical Photo

Dimensional Structure

Technical Specifications

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round, shielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Package Quantity	100
Packaging Type	Bag \| Box \| Carton
Positions/Loaded Contacts	8P/8C

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-23 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Copper Alloy
Plug Shield Plating Material	Nickel

Regulatory Compliance & Certifications

RoHS 2011/65/EU

Compliant

Order Information

Label	Can be customized
Delivery Time	Normally 15 working days
Brand	Hellosignal ®
OEM Services	Yes
Contact Email	info@zion-communication.com
