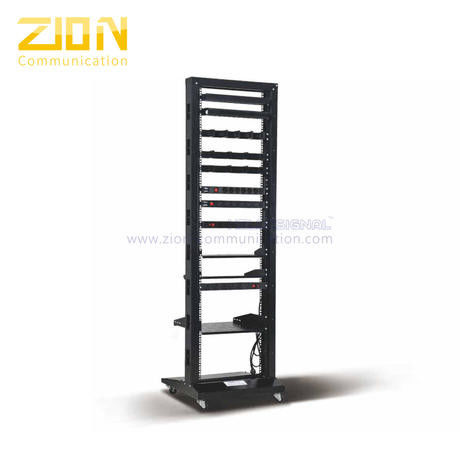

606 Open Rack Server Rack with SPCC Cold Rolled Steel, 250kg Loading Capacity, and 29U-47U Capacity for Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:	Cabinet Fitting	Bnad:	Zion Communication
Cord:	ZC606	Material::	SPCC Cold Rolled Steel
Color::	Black RAL9004,Grey RAL7035	Capacity::	29U,33,38,42,47U
Loading Capacity:	250kg
Highlight:	SPCC Cold Rolled Steel Open Rack , 250kg Loading Capacity Server Rack , 29U-47U Capacity Data Center Rack

Product Description

606 Open Racks Frame Network Server Data Rack

Data Center Accessories from China Manufacturer - Zion Communication

More detail please visit: Zion Communication Copper System Equipment

Technical Specifications

Materials

SPCC Cold Rolled Steel
Column: 1.5mm thickness
Other components: 2.0mm thickness

Color Options

ZC605: RAL7035
ZC605: RAL9004

Loading Capacity

Static loading: 250KG

Compliance Standards

ANSI/EIA RS-310-D
IEC60297-2
DIN41494 Part 1
DIN41494 Part 7

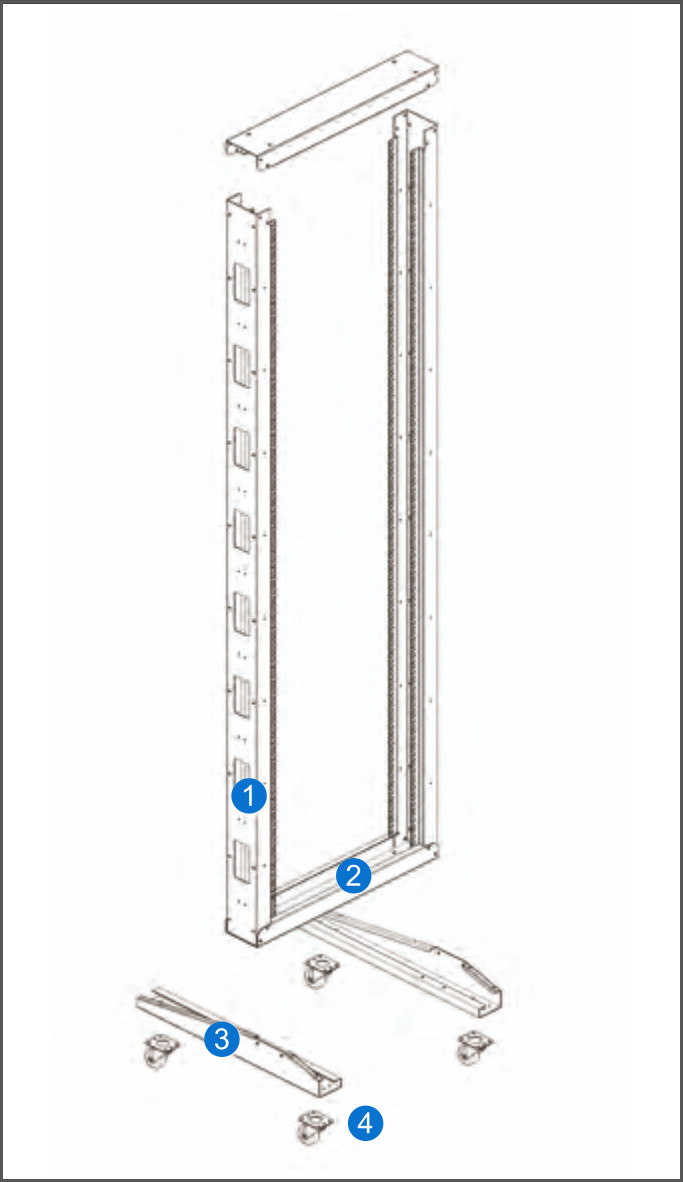

Main Components

S/N	Specification	Quantity	Material	Surface Finish	Remark
1	Column	2	SPCC t1.5	Powder coated
2	Plinth	2	SPCC t2.0	Powder coated
3	Support Cross beam	2	SPCC t2.0	Powder coated
4	2" heavy duty castor	4
A	M6 screw & nuts	20	Steel	Color zinc	40pcs for over 33U
B	Trox tooling	1	Steel	Black

Product Specifications

Part Number	RU	Width (mm)	Depth (mm)	Height (mm)	Volume (CBM)
ZC606.6629.606OR	29	600	600	1422	1420260140
ZC606.6633.606OR	33	600	600	1600	1600260140
ZC606.6638.606OR	38	600	600	1822	1820260140
ZC606.6642.606OR	42	600	600	2000	2000260140
ZC606.6647.606OR	47	600	600	2222	2220260140
