| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Data Center Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Server Rack Cabinet | Bnad: | Zion Communication |
|---|---|---|---|
| Cord: | ZCIDC-04 | Capacity: | 24/42U |
| Maximum Loading Capacity: | 1300kg | ||
| Highlight: | server rack cabinets,network rack cabinets |
||
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html
| VE Cabinets | ||||||||
| Technical Data | ||||||||
| Materials: | |
|||||||
| · SPCC Cold Rolled Steel; | · 19" rails: 2.0mm; | |||||||
| · Casters tray:2.0mm; | · others:1.2mm. | |||||||
| Colour: | ||||||||
| · ZCVE■■■I1■■0■■:RAL7035 · ZCVE■I■■m 1■ ■:RAL7021. | ||||||||
| Loading Capacity: | ||||||||
| · Static loading:1300KG. | ||||||||
| COMPLIANCE (Reference Standard) | ||||||||
| · Comply with ANSI/EIA RS-310-D | ||||||||
| · IEC60297-2 | ||||||||
| · DIN41494;PART1; DIN41494;PART7. | ||||||||
| Feature | ||||||||
|

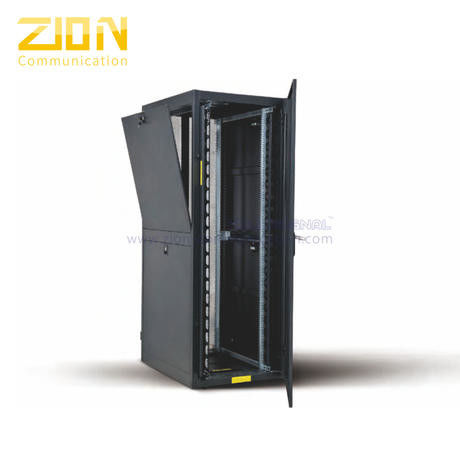

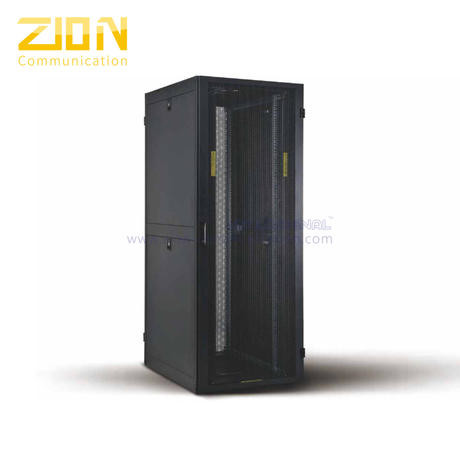

· Packaging : VE cabinets could be shipped in disassembled packing, saving transportation and storage cost. · New appearance design : Side door: split into 2 parts, lockable with square locks. Front and rear door: pluggable front door and rear doors, with external hinges. · Casters : built-in installation design. · Frame : duplex profile frames with patent, could be connected by 8 pieces of screws. · Front and rear doors : "two points" locking design making doors and frames closed tighter, turning angle up to 180 degrees. · Cable entries on top and bottom : sliding and adjustable cable entries on top and bottom, edges of cable entries are with the design to prevent wires from scratching. · Fan unit : installed from top outside of cabinet, easy to install and maintain. · Mounting rails : installation positions of mounting rails could be adjusted quickly. Dedicated channel alignmen reserved in internal of cabinets. · Cabinet structure : patented structure. · Maximum loading capacity : 1300kg.
|
||||||||
|
· 19" mounting angle with sacle enables users to precisely locate profile. |
· 19" zinc coated profile with scale. |
· Multi-function cable manger is |
||||||
|
· Safty Warning label. |
· Cable Entrence in the bottom is ajustable. |
· Cable manager with cover is available for 800mm width cabinet |
||||||
|
Ordering Information |
||||||||
|
||||||||
| Main Part | ||||||||
| S/N | Specification | Qty | Material | Surface Finish | Remark | |||
| 1 | Read door | 1 | ····· | ····· | See front&rear door type | |||
| 2 | Side panel | 4 | SPCC t1.2 | Powder coated | ||||
| 3 | 19"rails | 4 | T2.0 | zinc-plated | ||||
| 4 | Front beam | 2 | SPCC t1.5 | Powder coated | ||||
| 5 | Top cover | 1 | SPCC t1.2 | Powder coated | ||||
| 6 | Side frame | 2 | SPCC t1.2 | Powder coated | ||||
| 7 | Cable management slot | 2 | SPCC t1.0 | Powder coated | Only used for 800 width cabinet | |||
| 8 | Front door | 1 | ····· | ····· | See front&rear door type | |||
| 9 | Mounting spacer | 4 | T2.0 | zinc-plated | Only used for 800 width cabinet | |||
| 10 | Bottom | 1 | SPCC t1.0 | Powder coated | ||||
| 11 | Caster tray | 2 | SPCC t2.0 | Powder coated | ||||
| 12 | 2" heavy duty castor | 4 | ····· | ····· | ····· | |||
| Hardware kits with cabinet: | ||||||||
| A | M12 adjustable feet | 4 | Steel | zinc-plated | Height:100MM | |||
| B | M6 screw & nuts | 20/40 | Steel | zinc-plated | 40pcs for over 33U | |||
|
Specification: |
||||||||
|
||||||||
|
|
||||||||
|
Assembling Draft
|
||||||||
|
CKD Packing
|
||||||||
