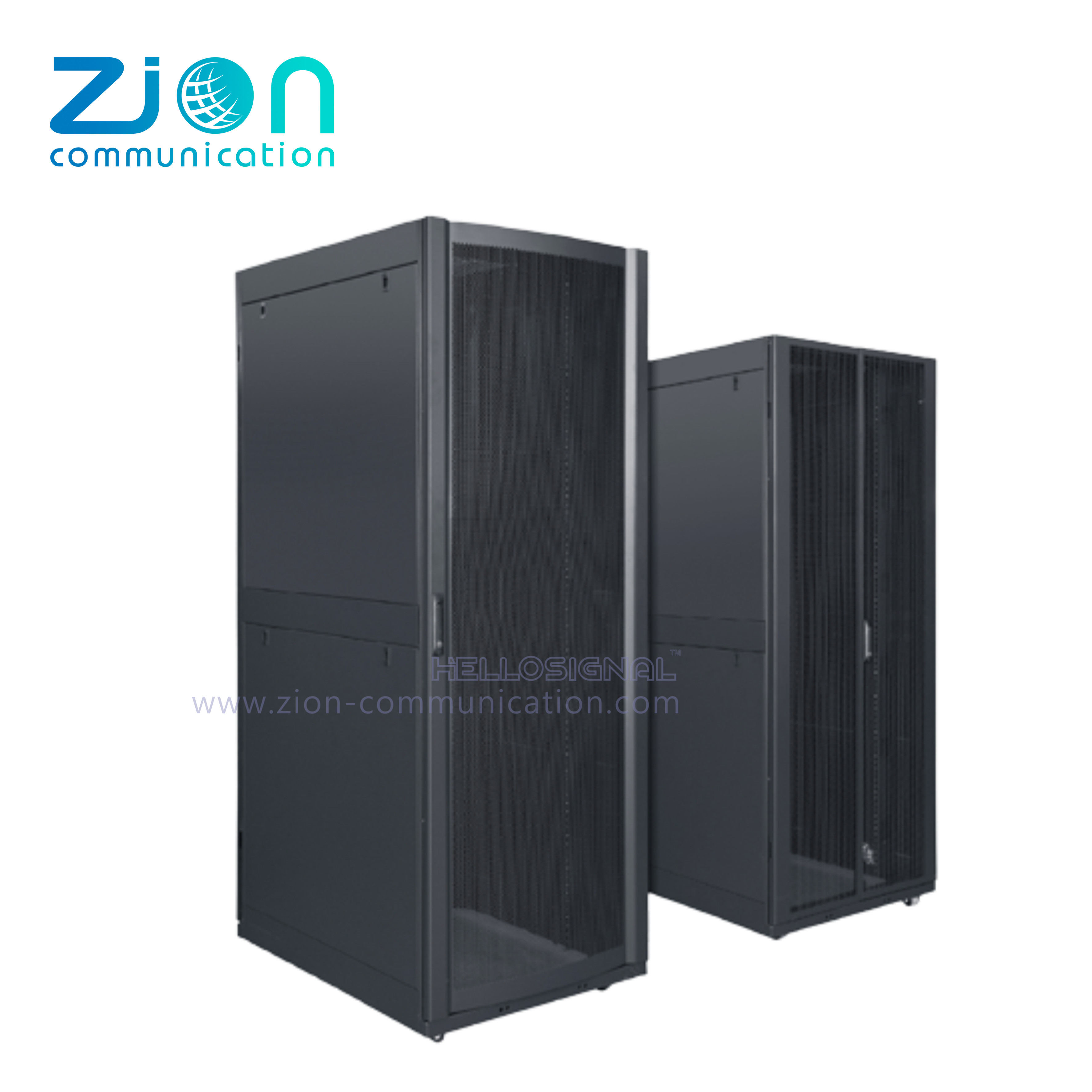

| Model: | Server Rack Cabinet | Bnad: | Zion Communication |
|---|---|---|---|
| Cord: | ZCIDC-05 | Capacity: | 42U |
| Depth: | 770mm, 870mm, 970mm ,1070mm | ||
| High Light: | server rack cabinets,network rack cabinets |
||
More detail please visit:
https://www.zion-communication.com/Copper-System-Equipment.html

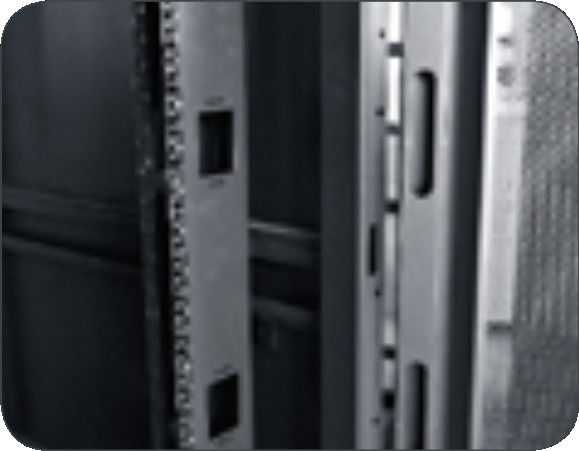

| ZCIDC-05 Server Cabinet | |||||
| Technical Data | |
||||
| Materials: | |||||
| · SPCC high quality cold rolled steel | |||||
| · Surface process: degreasing; phosphating; spray paint | |||||
| · Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm | |||||
| Colour: | |||||
| · RAL9004 (black); others could be required | |||||
| Standard | |||||
| · Compliant with ANSI/EIA; RS-210-D; IEC297-2; DIN41491;PART1; DIN41494;PAR7; GB/T2047.2-92; ETSI |
|||||
| Features | |||||
| · Curved mesh front door with folio mesh rear door ensures ventilation and visibility of the cabinet. | |||||
| · Movable caster and fixed feet can be used simultaneously, which allow the cabinet to bear about 1200KG. | |||||
| · Top panel has numerous fixed cable holes, mounting column comes with cable management function. | |||||
| · Removable doors in all directions are easy to operate for all angles. | |||||
| · Easy assembly makes system operation very simple. | |||||
| · Large ventilation area of more than 70% of the door area. | |||||
| · Height: 42U | |||||
| · Depth: 770mm, 870mm, 970mm ,1070mm. | |||||
| · Flexible packaging ensures cabinet’s storage and delivery. | |||||
| · Best choice for data center. | |||||
| Mian Install the Fitting | |||||
|
|
|
|||
| Top cover | Ground cable | Cable management | |||
| Main Part | |
||||
| NO. | ITEM | QTY | SPCCT (mm) | ||
| 1 | Frame | 2PCS | 2.0 | ||
| 2 | Mounting angle | 6PCS | 1.5 | ||
| 3 | Mounting profile | 4PCS | 2.0 | ||
| 4 | Top cover | 1PCS | 1.2 | ||
| 5 | Fan tray | 1PCS | 1.2 | ||
| 6 | Fan tray cover | 1PCS | 1.2 | ||
| 7 | Cable entrance cover | 4PCS | 1.2 | ||
| 8 | Supporting tray | 4PCS | 2.0 | ||
| 9 | Hinge | 6PCS | / | ||
| 10 | Caster | 4PCS | / | ||
| 11 | Side panel | 4SET | 1.2 | ||
| 12 | Single-open front door | 1PCS | 1.2 | ||
| 13 | Double section rear door | 1PCS | 1.2 | ||
| Ordering Information | |||||
|
|||||
| Model | Width (mm) |
Depth(D) (mm) | Height (mm) |
U | |
| ZCIDC.8842-5 SHSC | 800 | 770 | 2000 | 42U | |
| ZCIDC.8942-5 SHSC | 870 | ||||
| ZCIDC.8042-5 SHSC | 970 | ||||
| ZCIDC.8142-5 SHSC | 1070 | ||||
| Remark: Information in the sheet refers to the height of cabinet without castor | |||||
| Package Information | |||||
|
The door and vertical frame | ||||
| Side door | |||||
| Mounting profile | |||||
| Package Sheet | |||||
| Model | Specification | Door and frame(m²) | Side door(m²) | Mounting profile(m²) | CBM |
| ZCIDC.6842-3 SHSC | 600X770X42U | 0.2644 | 0.0578 | 0.0634 | 0.3855 |
| ZCIDC.6942-3 SHSC | 600X870X42U | 0.0663 | 0.3940 | ||
| ZCIDC.6042-3 SHSC | 600X970X42U | 0.0748 | 0.4025 | ||
| ZCIDC.6142-3 SHSC | 600X1070X42U | 0.0833 | 0.4110 | ||
| ZCIDC.8842-5 SHSC | 800X770X42U | 0.3511 | 0.0578 | 0.0634 | 0.4722 |
| ZCIDC.8942-5 SHSC | 800X870X42U | 0.0663 | 0.4807 | ||
| ZCIDC.8042-5 SHSC | 800X970X42U | 0.0748 | 0.4892 | ||
| ZCIDC.8142-5 SHSC | 800X1070X42U | 0.0833 | 0.4977 | ||
