Shielded 8P8C Modular Connector RJ45 CAT6 Plug with Phosphor Bronze Contacts

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	Data Center Equipment

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Model:

Modul Plug / Connectors

Bnad:

Zion Communication

Cords:

7024012

Categories:

Cat6 Plug

Highlight:

7024012 Modular Connectors

Shielded Modular Connectors

Product Description

Zion Communication Shielded Modular Connectors CAT6 FTP 8P8C RJ45

CAT6 FTP 8P8C RJ45 Connector, Plug Accessories - Professional-grade shielded modular connectors manufactured by Zion Communication. These connectors are designed for high-performance network installations requiring reliable data transmission.

More details available on our Copper System Equipment page

Product Specifications

Physical Characteristics

Part Number	7024012 \| ZC-MP6-88SR
Product Type	Modular Plug, 8P/8C, CAT6, Shielded, Round
Configuration	8-position crystal head
Package Quantity	100/bag

Product Visuals

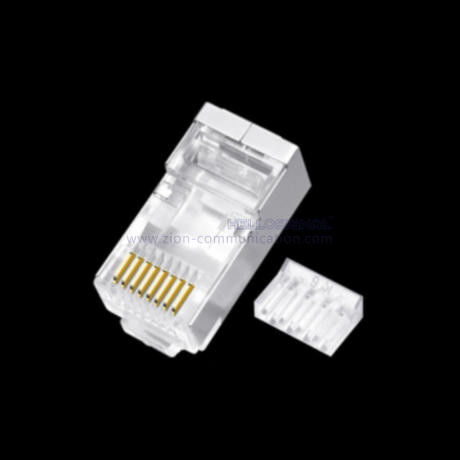

Physical photo showing connector design and build quality

Dimensional structure diagram for installation reference

Electrical Specifications

ANSI/TIA Category	5
Current Rating, maximum	0.75 A
Insulation Resistance, minimum	500 mOhm
Safety Voltage Rating	150 Vac
Fluke Test Compliance	Compliant

General Specifications

Cable Type	Round, shielded
Interface	RJ45
Operating Temperature	-40℃ to +85℃
Relative Humidity	Up to 93%, non-condensing
Positions/Loaded Contacts	8P/8C
Packaging Options	Bag \| Box \| Carton

Mechanical Specifications

Conductor Gauge	Solid/Stranded 26-23 AWG
Contact Base Material	Phosphor bronze
Contact Plating Material	Gold
Contact Plating Thickness	50μ OR 30μ \| 6μ
Material Type	PC = Polycarbonate
Plug Insertion Life, minimum	750 times
Plug Shield Base Material	Copper Alloy
Plug Shield Plating Material	Nickel

Regulatory Compliance

RoHS 2011/65/EU

Compliant

Ordering Information

Label Customization	Available
Delivery Time	Normally 15 working days
Brand	Hellosignal ®
OEM Services	Available
Contact Email	info@zion-communication.com
