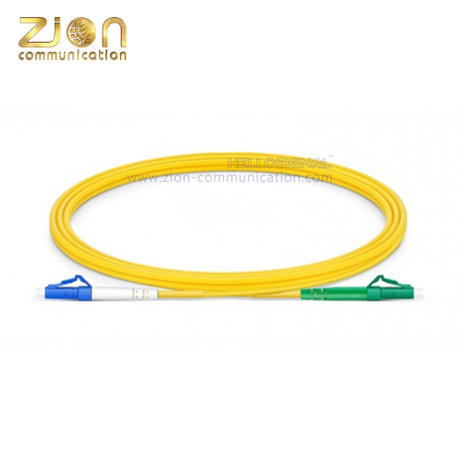

LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication OR OEM
Certification:	ISO, CE, RoHS, UL
Model Number:	LC UPC to LC APC Simplex G.652.D

Minimum Order Quantity:	1,000 PCS
Packaging Details:	1 PC/Plastic Bag, PCS/Carton
Delivery Time:	Normally 25 workingdays
Payment Terms:	T/T,L/C
Supply Ability:	30,000 PCS / Month

Get Best Price Contact Now

Detail Information

Fiber Unit:	G.652D Or G.657A	Tight Buffer Fiber:	Tight Buffer Fiber
Jacket:	PVC Or LSZH	Color:	Yellow
Package:	1 PC/Plastic Bag, PCS/Carton
Highlight:	LC APC Simplex Single Mode , G.652D Fiber Unit LC APC Simplex

Product Description

LC UPC to LC APC Simplex G.652D Fiber Optic Patch Cord

High-performance fiber optic patch cord featuring LC UPC to LC APC connectors, designed for reliable single-mode optical connectivity in high-density network environments.

Product Overview

LC UPC to LC APC Simplex G.652.D Single Mode PVC 2.0mm - 2m (6ft) FOPC

Product Code: 1112S112-2

Fiber Optic Cable Specifications

Fiber Type	Single-mode: OS2 (G.652.D / G.657.A1 / G.657.A2)
Fiber Count	Simplex
Cable Jacket	Main material: PVC, Outer diameter: 2.0mm
Jacket Color	Yellow (Standard for single-mode applications)
Cable Length	2m (6ft) - Custom lengths available upon request

Mechanical Specifications

Ferrule	Ceramic
Apex Offset	< 50μm
Fiber Height	± 100nm
Radius of Curvature	7mm R < 25mm
Repeatability	≤ 0.2dB over 1,000 mating cycles

Connector Information

LC (Lucent Connector/Little Connector/Local Connector)

Typical Applications: High-density connections, SFP and SFP+ transceivers, XFP transceivers

Performance Specifications

Parameter	LC UPC	LC APC
Operating Wavelength (nm)	1310-1550	1310-1550
Insertion Loss (dB)	≤ 0.3	≤ 0.3
Return Loss (dB)	≥ 55	≥ 60
Repeatability (dB)	≤ 0.1	≤ 0.1
Interchangeability (dB)	≤ 0.2	≤ 0.2
Tensile Strength (N)	≥ 1000	≥ 1000
Operating Temperature (°C)	-20 to +85	-20 to +85
Storage Temperature (°C)	-40 to +85	-40 to +85

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM solutions with our professional R&D team:

Customized Logo Application
Printing on Cable
Label/PE Bag/Carton Design
Various Colors & Custom Lengths Available
