SC APC Fast Assembly Connector for Harsh Environment with High Installation Quality and Reusable Design

SC APC Fast Assembly Connector for Harsh Environment with High Installation Quality and Reusable Design
SC APC Fast Assembly Connector for Harsh Environment with High Installation Quality and Reusable Design
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Highlight:

SC APC Fast Assembly Connector

,

Harsh Environment apc fast connector

,

apc fast connector

Product Description

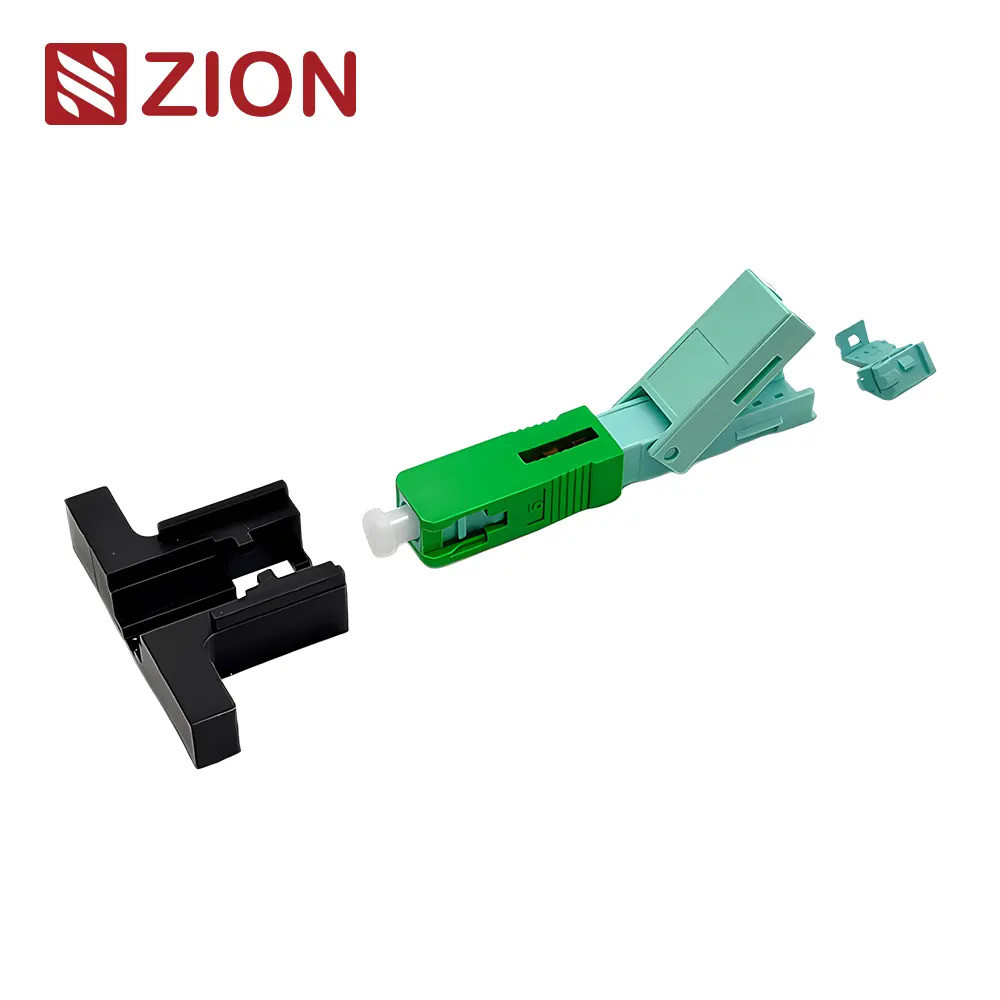

ZCSC13-A53 SC APC Fast Assembly Connector For Harsh Environment
SC APC Fast Assembly Connector for Harsh Environment with High Installation Quality and Reusable Design 0 SC APC Fast Assembly Connector for Harsh Environment with High Installation Quality and Reusable Design 1
Product Identification
Zion Code Zion Description
7234040 ZCSC13-A53 SC APC Fast Assembly Connector
Key Features
Cost-Effective Installation
High-performance fiber optic fast connector ensuring quality installation and efficiency
Advanced Crimping Design
Original physical design with injected glue and grinding - no consumables required
Embedded Fiber Structure
Secure fiber optic integration for reliable performance
Reusable & Portable
Easy operation with reusability and convenient portability
Product Overview
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device designed to connect two optical fibers or cables, creating a continuous optical path. Widely utilized in fiber optic transmission lines, distribution frames, and testing instruments, it represents one of the most commonly used optical passive devices in current applications.
Performance Specifications
The connectors supplied by Hangzhou Zion Communication Co., Ltd. feature high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range, making them the optimal choice for demanding applications.
SC FAST Field Fiber Optic Connector Specifications
Technical Parameters
Parameter ZCSC13-A53
Length 53mm
Ferrules SC-SM/APC
Insertion Loss (dB) AVG≤0.3dB MAX≤0.5dB
Return Loss (dB) UPC≥50dB / APC≥55dB
Operating Temperature (℃) -20~+75℃
Storage Temperature (℃) -40~+85℃
Mating Times 500 Times
Cable Diameter Drop cable: 2.0*3.0mm / 2.0*5.0mm
Applications
  • FTTH & Outdoor Fiber Terminal End
  • Harsh Environment Installations
  • FTTA BBU RRU Systems
  • Data Video Transmission
  • Optical Fiber Access for Mobile Base Stations
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.
  • Customized Logo Implementation
  • Label/PE Bag/Carton Design Services
SC APC Fast Assembly Connector for Harsh Environment with High Installation Quality and Reusable Design 2
