SC APC Fast Connector with High Installation Success Rate Reusable and Embedded Fiber Optic Structure for FTTH and Harsh Environments

Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Highlight:

sc apc fast connector

,

SC APC optical fast connector

,

Assembly optical fast connector


Product Description

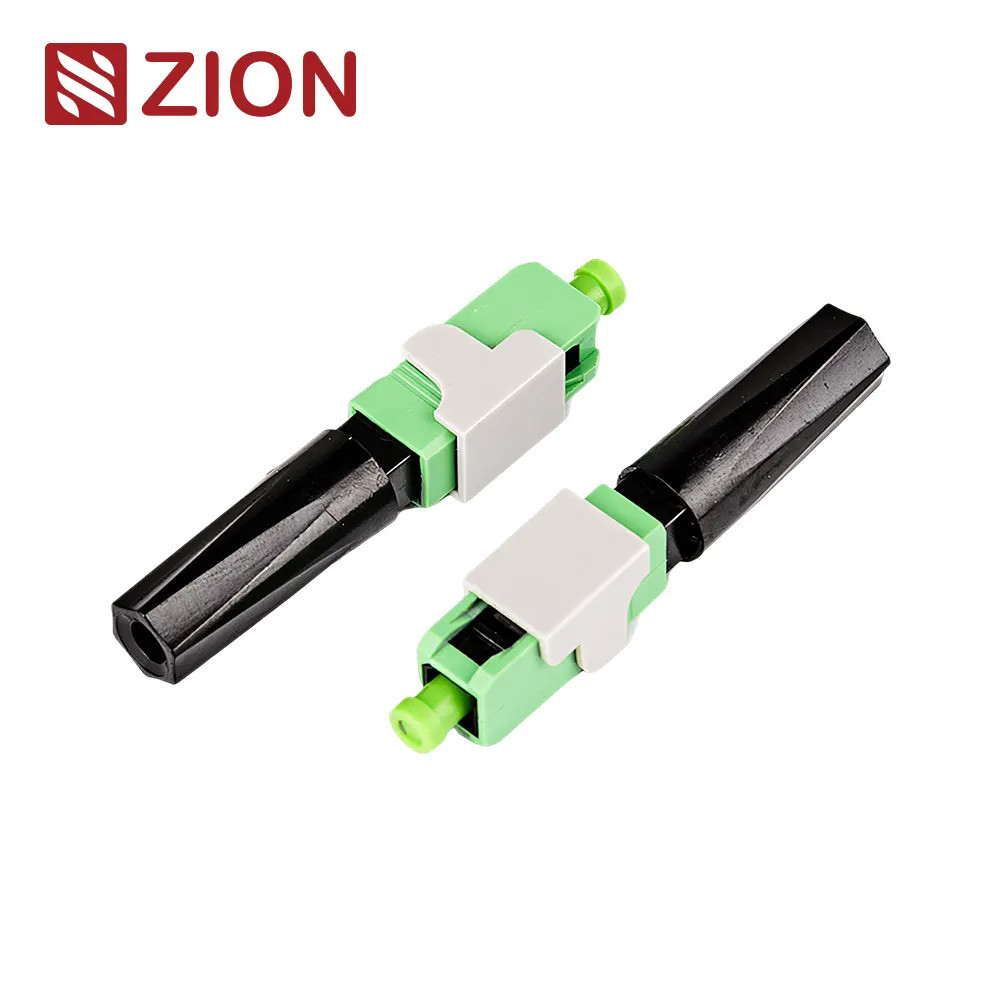

ZCSC10-A50 SC APC Optical Fast Connector Fast Assembly Connector
SC APC Fast Connector with High Installation Success Rate Reusable and Embedded Fiber Optic Structure for FTTH and Harsh Environments 0 SC APC Fast Connector with High Installation Success Rate Reusable and Embedded Fiber Optic Structure for FTTH and Harsh Environments 1
Zion Code and Description
Zion Code Zion Description
7234034 ZCSC10-A50 SC APC Fast Assembly Connector
Product Features
High cost-effective fiber optic fast connector ensuring installation quality and efficiency
Original crimping design with injected glue and grinding - no consumables required during installation
Embedded fiber optic structure for enhanced performance
High installation quality, success rate, and installation speed
Reusable design with easy operation
Convenient and portable for field applications
Product Overview
ZION COMMUNICATIONS' Fiber Optic Connector is a reusable passive device used to connect two optic fibers or optic cables to form a continuous optic path. It has been widely used in optic fiber transmission lines, optic fiber distribution frames, and optic fiber testing instruments and meters. As one of the most commonly used optic passive devices, the connectors supplied by Hangzhou Zion Communication Co., Ltd. feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range, making them your optimal choice.
SC FAST Field Fiber Optic Connector Specifications
Technical Parameters
Parameter ZCSC10-A50
Length 50mm
Ferrules SC-SM/APC
Insertion Loss (dB) AVG≤0.3dB MAX≤0.5dB
Return Loss (dB) UPC≥50dB / APC≥55dB
Operating Temperature (℃) -20~+75℃
Storage Temperature (℃) -40~+85℃
Mating Times 500 Times
Cable Diameter Drop cable: 2*1.6mm/2*3.0mm/2.0*5.0mm
Round cable: 5.0mm/3.0mm/2.0mm/0.9mm (0.9mm with tail)
Applications
  • FTTH & Outdoor Fiber Terminal End
  • Harsh Environment Installations
  • FTTA BBU RRU Systems
  • Data Video Transmission Networks
  • Optical Fiber Access for Mobile Base Stations
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.
  • Customized Logo Implementation
  • Label/PE Bag/Carton Design Customization
SC APC Fast Connector with High Installation Success Rate Reusable and Embedded Fiber Optic Structure for FTTH and Harsh Environments 2
