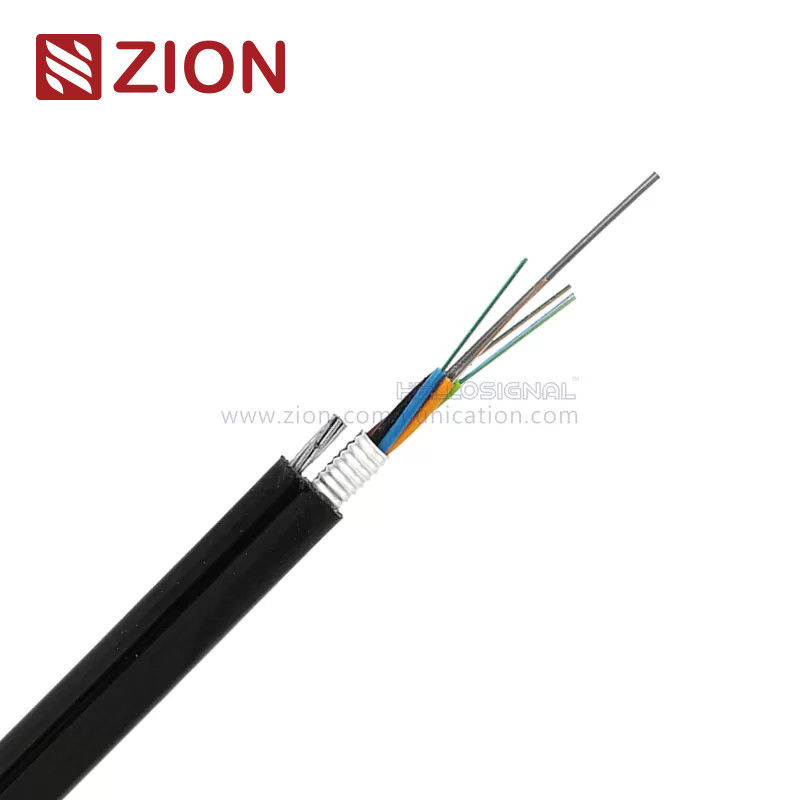

Self-supporting Cable GYTC8A Fiber Optic Cable with APL Moisture Barrier

Quick Detail:

Description:

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a non-metallic strength member. The tubes (and fibers) are stranded around the strength member into a compact and circular cable core. After an Aramid yarn Strengthening layer is applied around the cable core. This part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Applications:

• Adopted to Outdoor distribution.
• Suitable for aerial duct and buried method.
• Long distance and local area network communication.

KT3006 Self-Supporting Fiber Optic Cable GYTC8A with APL Moisture Barrier

Description and Standards:

The KT3006 GYTC8A fiber optic cable is designed for durability and efficiency in aerial installations. It features fibers of 250μm placed within a loose tube composed of high-modulus plastic. The tube is filled with water-resistant filling compound to ensure fiber protection.

A Fiber Reinforced Plastic (FRP) serves as the central strength member, around which the loose tubes and fibers are stranded to form a compact cable core. An aramid yarn layer enhances the cable's strength, while stranded wires act as the supporting structure in the figure-8 design. A polyethylene (PE) sheath surrounds the entire assembly, ensuring weather resistance.

The GYTC8A cable adheres to the YD/T 1155-2001 and IEC 60794-1 standards.

Key Characteristics:

• Self-Supporting Design: Stranded steel wires provide tensile strength for aerial applications, minimizing installation costs.
• Mechanical Performance: Designed to withstand high tensile and crush stresses.
• Hydrolysis Resistance: High-strength loose tubes filled with special compounds protect against moisture and hydrolysis.
• Moisture Protection Measures:
  1. Central steel strength member.
  2. Filling compounds within the loose tubes and cable core.
  3. Full cable core filling ensures watertight integrity.

Technical Specifications:

• Cable Dimensions: 9.5 mm x 18.3 mm for all configurations.
• Weight: 125 kg/km.
• Tensile Strength: 600 N (long-term), 1500 N (short-term).
• Crush Resistance: 300 N/100 mm (long-term), 1000 N/100 mm (short-term).
• Bending Radius: 10D (static), 20D (dynamic).

Optical Fiber Performance:

• Single-Mode (G.652/G.655):

  • @1310 nm: ≤0.36 dB/km (G.652), ≤0.40 dB/km (G.655).
  • @1550 nm: ≤0.22 dB/km (G.652), ≤0.23 dB/km (G.655).
  • Cable cut-off wavelength: ≤1260 nm (G.652), ≤1480 nm (G.655).

• Multimode (50/125μm, 62.5/125μm):

  • @850 nm: ≤3.0 dB/km.
  • @1300 nm: ≤1.0 dB/km.
  • Bandwidth:
    • @850 nm: ≥500 MHz·km (50/125), ≥200 MHz·km (62.5/125).
    • @1300 nm: ≥1000 MHz·km (50/125), ≥600 MHz·km (62.5/125).
  • Numerical Aperture:
    • 50/125μm: 0.200 ± 0.015 NA.
    • 62.5/125μm: 0.275 ± 0.015 NA.

• Operating Temperature Range: -40℃ to +60℃.

Ordering Information:

• Cable Marking: Zion Communication KT3006 GYTC8A XXX M (customizable upon request).

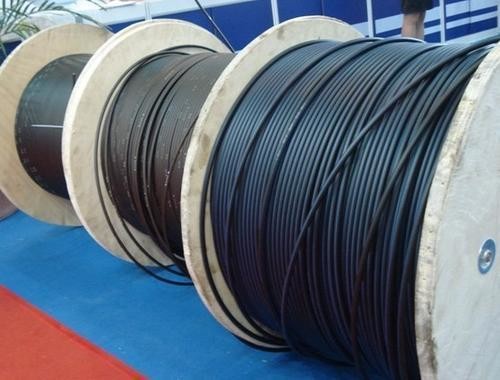

• Packaging: Delivered in 1000M or 2000M wooden drums, customizable upon request.
• Lead Time: Typically 25 days after deposit receipt.

Competitive Advantage:

1, From raw materials to final products, we perform intense quality checks to maintain our product quality:

A, Incoming material inspected by QC.

B, Manufacturing Process Control

  A: Manufacturing procedure

  B: Workers trained daily/weekly/monthly

  C: Work instructions manual at each work station

  D:5S system implemented

  E: Machine maintenance procedure

C, Quality Control and Final Inspection

  The QC staff will check the material, process product and final product according to the specification or test procedure.

2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and Zion communication

3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.

4, We can Quickly and professionally answer for the inquire

5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us

6, Intime delivery
