| Place of Origin: | CHINA |
|---|---|
| Brand Name: | KINGTONE OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | Fiber Optic Cable GYTA53 |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 1000M or 2000M / Wooden Drum |
| Delivery Time: | Normally 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Fiber Unit: | YOFC, G.652D | Filling 1: | Tube Filling Compound |
|---|---|---|---|
| Tube: | Loose Tube | Filling 2: | Cable Filling Compound |
| Strength Member: | Central Strength Member | Armoured 2: | PSP |
| Inner Sheath: | PE | Waterproof: | Water Blocking Material |
| Outer Sheath: | PE | Color: | Black |
| Package: | 1000M Or 2000M / Wooden Drum | ||
| Highlight: | long distance fiber optic cable,fiber optic ethernet cable |
||

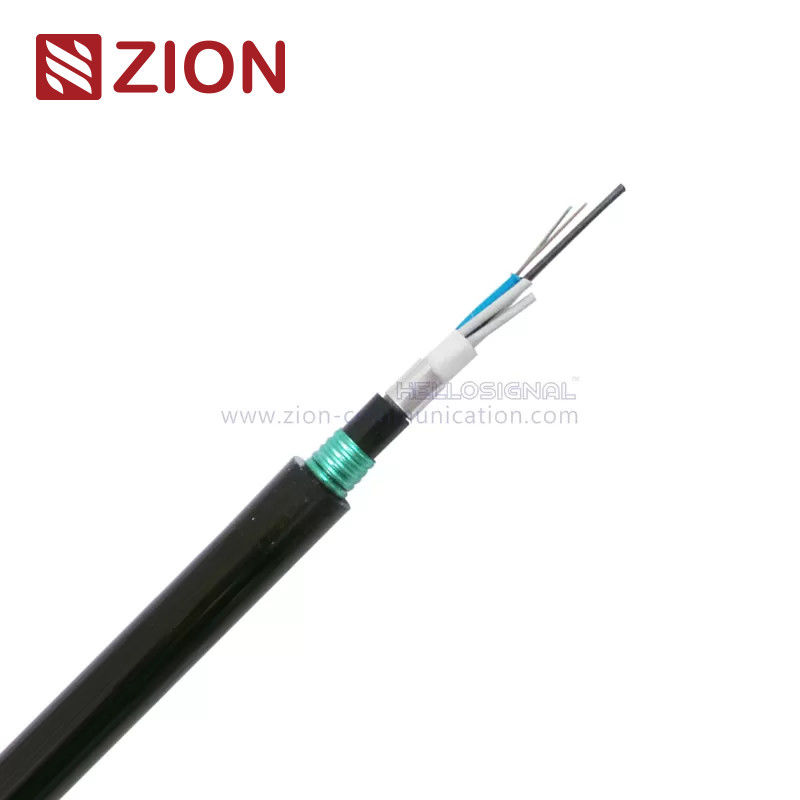

GYTA53 Double Sheathed Fiber Optic Cable Directly Underground for Communication
Quick Detail:
Description:
The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Applications:
|
KT3004 GYTA53 Double Sheathed Fiber Optic Cable Directly Underground for Communication
|
||||||
|
Description&Standards :
|
||||||
|
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath. |
||||||
| GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1. | ||||||
| Characteristics: | ||||||
| Good mechanical and temperature performance; | ||||||
| High strength loose tube that is hydrolysis resistant; | ||||||
| Special tube filling compound ensure a critical protection of fiber; | ||||||
| Crush resistance and flexibility; | ||||||
| The following measures are taken to ensure the cable watertight: | ||||||
| (1)Steel wire used as the central strength member; | ||||||
| (2)Loose tube filling compound; | ||||||
| (3)100% cable core filling; | ||||||
| (4)APL moisture barrie; | ||||||
| (5)PSP enhancing moisture-proof; | ||||||
| (6)Water-blocking material. | ||||||
| Technical Parameters: | ||||||
| Cable Type | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Short Term |
Bending Radius Dynamic |
|
| GYTA53-2~6 | 13.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYTA53-8~12 | 13.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYTA53-14~18 | 13.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYTA53-20~24 | 13.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYTA53-26~30 | 13.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYTA53-32~36 | 13.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D | |
| GYTA53-38~60 | 15.3 | 234 | 1000/3000 | 1000/3000 | 10D/20D | |
| Optical fiber Characteristics: | ||||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
| Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||||
| @1310nm | ≤0.36 dB/km |
≤0.40 dB/km |
||||
| @1550nm | ≤0.22 dB/km |
≤0.23 dB/km |
||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
| Storage/Operating Temperature : -40℃ to + 70℃ | ||||||
| Order Informations: | ||||||
| Marking | KINGTONE KT3004 GYTA53 XXX M (or Per customer's request) | |||||
| Package | 1000M or 2000M / Wooden Drum (or Per customer's request) | |||||
| Delivery time | Normally 25 days after received the deposit. | |||||
