| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | FTTH Drop Cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 2000M / Wooden Spool / Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500KM / Month |
| Fiber Unit: | YOFC G.652D Or G.657A | Fiber Reinforced: | FRP Or Steel Wire |
|---|---|---|---|
| Strength Memebr: | Steel Wire | Jacket: | LSZH |
| Color: | Black | Package: | 2000M / Wooden Spool / Carton |
| Types: | GJYXFCH Or GJYXCH | ||
| Highlight: | long distance fiber optic cable,outdoor fiber optic cable |
||

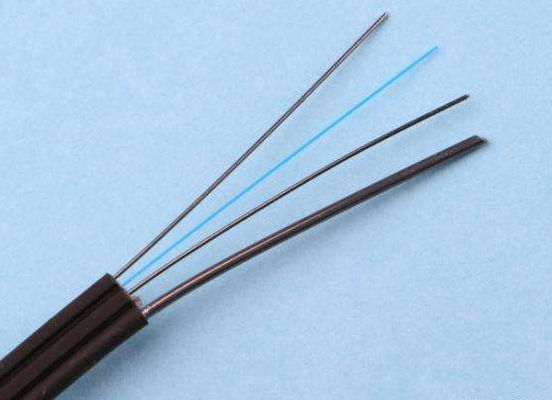

Self-supporting Bow-type Steel Strength Member FTTH Drop Cable GJYXCH
Quick Detail:
Description:
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Applications:
|
KT3000 Self-supporting Bow-type Steel Strength Member FTTH Drop Cable GJYXCH |
|||||
| Description : | |||||
|
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath. |
|||||
| Characteristics: | |||||
| Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property; | |||||
| Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber; | |||||
| Single steel wire or massagers as the additional strength member ensures good performance of tensile strength; | |||||
| Simple structure, light weight and high practicability; | |||||
| Novel flute design, easily strip and splice, simplify the installation and maintenance; | |||||
| Low smoke, zero halogen and flame retardant sheath. | |||||
| Technical Parameters: | |||||
| Fiber Count | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
| 1 | (2.0±0.1)× (5.0±0.1) |
20 | 60/120 | 300/1000 | 15/30 |
| 2 | (2.0±0.1)× (5.0±0.1) |
20 | 60/120 | 300/1000 | 15/30 |
| 4 | (2.0±0.1)× (5.2±0.1) |
22 | 60/120 | 300/1000 | 15/30 |
| Optical fiber Characteristics: | |||||
| 62.5um (850/1300nm) |
50um (850/130nm) |
G.652D (1310/1550nm) |
G.657A1 (1310/1550nm) |
||
| Attenuation (dB/km) |
3.75/1.5 | 3.5/1.5 | 0.4/0.3 | 0.4/0.3 | |
| Attenuation (dB/km) |
3.5/1.5 | 3.0/1.0 | 0.36/0.22 | 0.36/0.22 | |
| Storage/Operating Temperature : -20℃ to + 60℃ | |||||
| Order Informations: | |||||
| Marking | Zion communication KT3000 FTTH Drop Cable XXX M (or Per customer's request) | ||||
| Package | 2000M/Wooden Spool/Carton (or Per customer's request) | ||||
| Delivery time | Normally 15 days after received the deposit. | ||||
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
A: Manufacturing procedure
B: Workers trained daily/weekly/monthly
C: Work instructions manual at each work station
D:5S system implemented
E: Machine maintenance procedure
C, Quality Control and Final Inspection
The QC staff will check the material, process product and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs. We are skilled at effective communication to interact with customers.In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire.
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us.
6, Intime delivery.
