Welded Aluminum Tube QR 540 JCAM Distribution Cable with CCA Conductor PE Jacket

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Signal Coaxial Cable QR540 JCAM
Minimum Order Quantity: 5 KM
Packaging Details: 500M, 1000M, Wooden Drum, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Inner Conductor: CCA Dielectric: Foamed PE
Outer Conductor: Welded Aluminum Tube Jacket: PE
Color: Black Messenger: Zinned Steel
Package: 500M, 1000M, Wooden Drum, Pallet
High Light:

low loss coaxial cable

,

50 ohm coaxial cable


Product Description

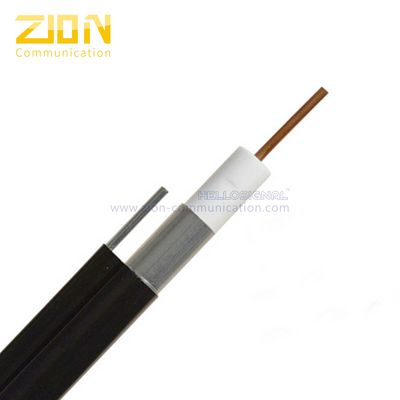

Welded Aluminum Tube QR540 JCAM Distribution Cable with CCA Conductor PE Jacket





Quick Detail:

  • Signal Coaxial Cable
  • QR 540 JCAM Trunk Cable
  • 0.124Inches /3.15mm CCA Conductor
  • 0.514Inches /13.05mm FPE Insulation
  • 0.540Inches /13.72mm Welded Aluminum Tube
  • 0.610Inches /15.49mm  PE Jacket
  • Zinned Steel Messenger
  • 500M, 1000M, Wooden Drum, Pallet
  • MOQ:5KM



Description:



KT0201 QR540 JCAM Trunk Coaxial Cable,3.15mm CCA, 15.49mm FR-PE , Messenger

has the highest reliability and flexibility of any Trunk and Distribution coaxial cable, low RF attenuation and an unprecedented 10 year warranty.All QR ans PS cable products offer tough polyethylene jackets and a standardized, environmentally sealed connector interface engineered for reliability and craft friendliness.
QR and PS cable offers lower attenuation than larger traditional products, with unmatched flexibility,
reliability and cost effectiveness. QR and PS cable is optimized for use in broadband feeder plants. It can also be used for very low attenuation antenna/headend connections.

Standard QR and PS cable Construction is comprised of:

Aluminum Strip – formed and continuously RF welded around a high compression microcellular foam dielectric core, minimizing RF egress and ingress and the rigidity common in traditional coaxial products.
Shield – fully bonded to the dielectric core, as is the copper clad aluminum center conductor.
Polyethylene Jacket – applied standard, which enhances cable reliability and allows QR and PS cable's unique connector technology to form an environmental seal.


Applications:


Trunk coaxial cables are connected to the optical node and form a coaxial backbone to which smaller distribution cables connect.Trunk cables also carry AC power which is added to the cable line at usually either 60V or 90V by a power supply and a power inserter.





KT0201 QR540 JCAM Trunk Cable,3.15mm CCA,15.49mm FR-PE, Messenger
Construction Parameters:
  Inner Conductor 0.124Inches /3.15mm               Copper Clad Aluminum
  Dielectric 0.514Inches /13.05mm            Foamed PE
  First Shield              0.540Inches /13.72mm  Welding Smooth Aluminum Tube
  Shield Thickness 0.0135Inches /0.343mm
  Jacket 0.610Inches /15.49mm       PE/ Flame Retardant PE
  Jacket Thickness 0.035Inches /0.89mm
  Messenger 0.109Inches /2.77mm  Zinned Steel

Electrical Characteristics:
  Capacitance(pF/m) 50 ± 3
  Impedance(ohm) 75 ± 2
  Velocity of Propagation (%) 88
  Inner Conductor DC Resistance(Ω/km) 3.34
  Outer Conductor DC Resistance(Ω/km) 1.94
  Loop DC Resistance(Ω/km) 5.28

Mechanical Characteristics:
  Min.Bend Radius(mm) 102
  Max.Pulling Tension(kgf) 100
  Max.Breaking Strength of Messenger(kgf) 816

Attenuation(20℃):
Frequency (MHZ)             Nominal (dB/100m) Max Attenuation (dB/100m)
5.00  0.43  0.46
55.00  1.48  1.56
83.00  1.80  1.90
211.00  2.99  3.12
250.00  3.25  3.38
300.00  3.54  3.71
350.00  3.84  4.04
400.00  4.13  4.33
450.00  4.43  4.59
500.00  4.63  4.89
550.00  4.95  5.12
600.00  5.22  5.38
750.00  5.91  6.07
865.00  6.23  6.56
1000.00  6.89  7.12

Order Informations:
  Marking Zion communication QR540 JCAM  XXX M  (or Per customer's request)
  Package 500M, 1000M/Wooden Spool (or Per customer's request)
  Delivery time Normally 25 days after received the deposit.
  More informations  please contact with us.
