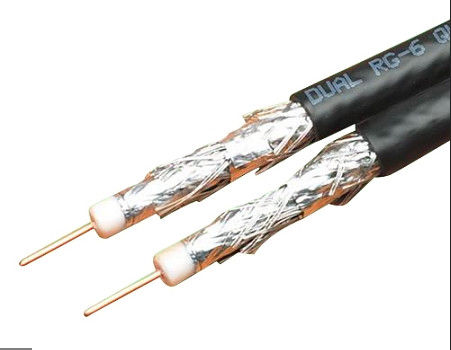

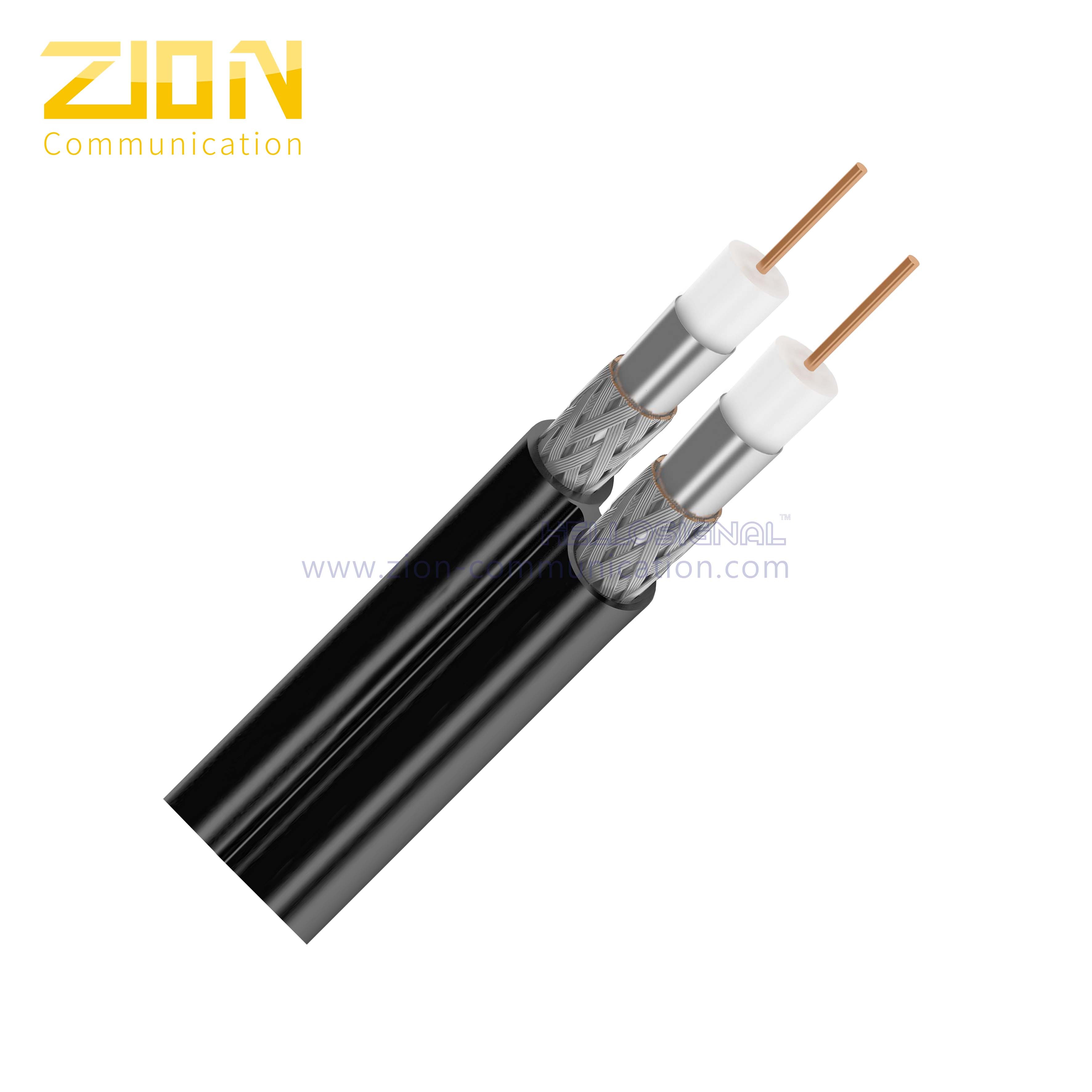

Dual RG6 Quad-Shield Coaxial Cable with 18 AWG CCS Conductor and CMR Rated for CATV MATV Systems

Dual RG6 Quad-Shield Coaxial Cable with 18 AWG CCS Conductor and CMR Rated for CATV MATV Systems
Dual RG6 Quad-Shield Coaxial Cable with 18 AWG CCS Conductor and CMR Rated for CATV MATV Systems Dual RG6 Quad-Shield Coaxial Cable with 18 AWG CCS Conductor and CMR Rated for CATV MATV Systems Dual RG6 Quad-Shield Coaxial Cable with 18 AWG CCS Conductor and CMR Rated for CATV MATV Systems Dual RG6 Quad-Shield Coaxial Cable with 18 AWG CCS Conductor and CMR Rated for CATV MATV Systems
Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: RG6 Coaxial Cable Dual
Minimum Order Quantity: 30 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Pallet
Delivery Time: Normally 15 Days
Payment Terms: T/T,L/C
Supply Ability: 50*20’GP / Month
Get Best Price Contact Now
Detail Information
Conductor: CCS Dielectric: Foamed PE
Shield 1: AL-Foil Shield 2: Aluminum Braiding
Jacket: PVC Color: Black Or White
Package: 305M, 1000FT, Wooden Reel, Pallet
Highlight:

quad shielded coaxial cable

,

rg6 quad shield coaxial cable

Product Description

Dual RG6 Riser CMR Siamese Cable 18 AWG CCS Conductor
Visit our official website to learn more about CATV Coaxial Cable
Quick Specifications
  • Dual RG6 Quad-Shield Coaxial Cable
  • 18 AWG CCS Conductor
  • First 60% AL Braiding
  • Second 40% AL Braiding
  • Foamed PE Insulation
  • Bonded AL-Foil
  • UL CMR Rated PVC
  • 75 Ohm Cable
  • Tested to 3GHz
  • ISO, CE, RoHS, UL Certified
  • Available in 305M, 1000FT on Wooden Reel with Pallet
Product Description
KT0691 RG6 Dual CATV Coaxial Cable 18AWG CCS with 60% Bonded and 40% Non-Bonded AL Braiding PVC-CMR is engineered for superior performance in digital cable, satellite, antenna, and communication systems. Featuring a 75-ohm characteristic impedance, this cable is manufactured using premium materials and skilled craftsmanship to ensure reliable performance in practical applications. Packaged on 300M/1000FT/1000M wooden spools with pallet protection for safe transport and handling.
Applications
  • RF Signal Transmission
  • CATV Systems
  • MATV Systems
  • CCTV Systems
  • Local Area Networks
  • Digital Video
  • Antennas
Construction Parameters
Component Specification Material
Inner Conductor 0.040"/1.02mm/18AWG Copper Clad Steel
Dielectric 0.180"/4.57mm Foamed PE (Gas Expanded Polyethylene)
Shield 1 0.187"/4.75mm Bonded Aluminum Polyproylene
Shield 2 60% coverage Aluminum braid wire
Shield 3 Laminated Aluminum Tape Non-Bonded
Shield 4 40% coverage Aluminum braid wire
Jacket 0.297"±0.006"/7.54±0.15mm PVC (CMR or CMG)
Jacket Thickness 0.033"/0.84mm -
Application For Use in Longer CATV Run Lengths
Electrical Characteristics
Parameter Value Notes
Inner Conductor Resistance < 87 Ω/km ; < 26.6Ω/1000ft Max. at 20℃
Capacitance 52 ±3 pF/m 15.9 ±0.9 pF/ft
Impedance 75 ± 3 Ω -
Return Loss > 22dB between 5 and 1000MHz
Velocity of Propagation 0.85 -
Sparker Test (VAC) 4 -
Attenuation Characteristics (20℃)
Frequency (MHz) Max Attenuation (dB/100ft) Max Attenuation (dB/100m)
50.581.90
551.605.25
831.956.40
1872.859.35
2113.0510.00
2503.3010.82
3003.5511.64
3503.8512.63
4004.1513.61
4504.4014.43
5004.6615.29
5504.9016.08
6005.1016.73
7505.6518.54
8656.1020.01
10006.5521.49
Mechanical and Environmental Properties
Cable Bend Radius 10 times the cable diameter
Operating Temp Range (PVC) -20℃ to 75℃
Cable Dimensions 0.2988"±0.006''/7.59±0.15 mm PVC
Order Information
Marking Zion communication KT0691 RG6 Dual Bonded 60% Non-Bonded 40% PVC(CMR or CMG) CATV COAXIAL CABLE ***M/FT
Package 500FT/Pull Box, 1000FT/Wooden Spool/Pallet
Delivery Time Normally 25 days after received the deposit
More Information Please contact with us
Competitive Advantages
  • Comprehensive Quality Control: Rigorous checks from raw materials to final products including incoming material inspection, manufacturing process control, worker training, 5S system implementation, and machine maintenance procedures
  • Advanced R&D: Focus on developing element technologies to support future growth for customers and Zion communication
  • 24/7 Customer Support: Skilled at effective communication with prompt service availability
  • Quick Response: Professional and timely responses to inquiries
  • Extensive Product Range: Over 1000 kinds of cable, connectors and assemblies available
  • Reliable Delivery: Consistent on-time delivery performance
