| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, ROHS, VDE, UL |
| Model Number: | RG6 S |
| Minimum Order Quantity: | 500 |
| Packaging Details: | Carton |
| Delivery Time: | Normally 20 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500000pcs / Month |
| Highlight: | UL Certified RG6/U Coaxial Cable,Superior Signal Protection CATV Coaxial Cable |
||
|---|---|---|---|

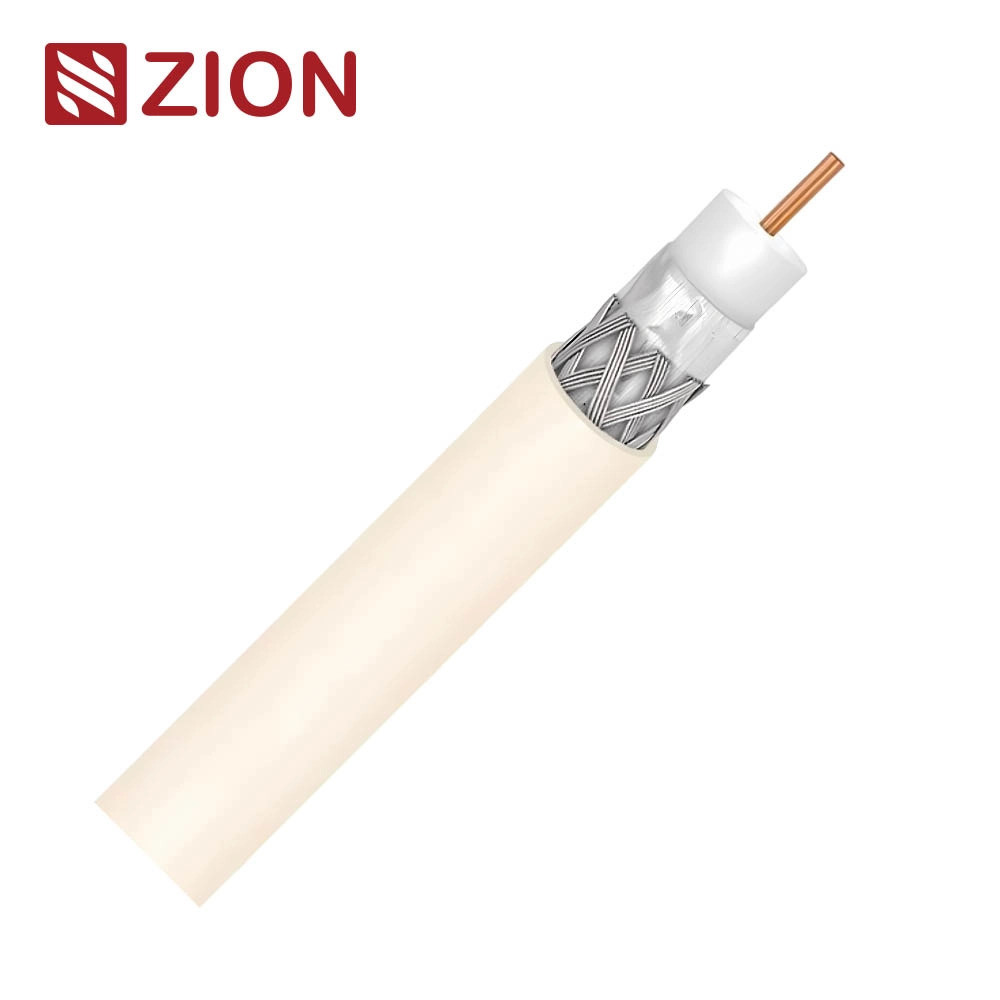

| RG6/U S 90% CMP UL Certificated | ||
| Key Information & Construction Parameters: | ||
| SKU: | 7100009 |  |
| UL Certificate Number: | E541136 | |
| Standards: | UL 444 & CSA C22.2 No.214 Communications Cables |
|
| Inner Conductor Material | Copper Covered Steel (CCS) | |
| Inner Conductor Size | 0.040"/18AWG/1.024±0.008mm | |
| Insulation Material | Skin Foam FEP | |
| Insulation Size | 0.170±0.006"/4.32±0.15mm | |
| Shield 1 | Bonded Aluminum/Poly Tape | |
| Shield 2 | AL_MG braiding wire | |
| 60% Coverage | ||
| Jacket | Material: Plenum PVC | |
| Norminal Thickness: 0.018"(0.46mm) | ||
| OD: 0.236±0.012" (6.0±0.3mm) | ||
| Application | Audio/Video | |
| CATV/CCTV | ||
| Cross Section: | ||
|
|
||
| Electrical Characteristics & Physical Properties: | ||
| Inner Conductor Resistance | 93.8 Ω/km | 28.6 Ω/1000 ft. | |
| Capacitance | 52.5 pF/m.Nom | 16 pF/ft.Nom | |
| Impedance | 75 ± 3 Ω | |
| Return loss | 20dB (1 -300MHz) 100% Swept Tested | |
| Velocity of Propagation | 84% Nom. | |
| Sparker Test (VAC) | 2500 V | |
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 to 75 ℃ (-4 to 167℉) | |
| RoHS | Compliant | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 1 | 0.42 | 1.38 |
| 10 | 0.95 | 3.11 |
| 50 | 1.60 | 5.25 |
| 100 | 2.20 | 7.21 |
| 200 | 3.20 | 10.49 |
| 400 | 4.70 | 15.41 |
| 700 | 6.60 | 21.64 |
| 900 | 7.90 | 25.90 |
| 1000 | 8.20 | 26.89 |
| 1200 | 8.80 | 28.85 |
| 1450 | 10.10 | 33.11 |
| 1800 | 11.80 | 38.69 |
| 2200 | 13.50 | 44.26 |
| 3000 | 16.50 | 54.10 |
| *The above data is for reference only, the actual order test report shall prevail. | ||
| Order Informations: | ||
| Marking | HANGZHOU ZION 7100009 RG6 S 60% 18AWG 75 OHM COAX E541136(UL)C(UL)CMP 75C RoHS COMPLIANT ×××××FT |
|
| Package | 1000FT/Pull Box or Wooden Spool (or Per customer's request) | |
| Delivery time | Normally 25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
