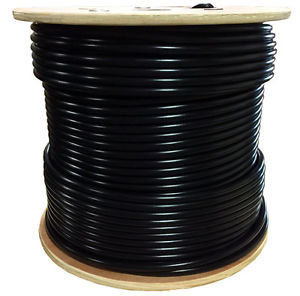

Low Loss 200 with TC Braiding PVC Jacket 50 Ohm Signal Coaxial Cable for GPS

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: Signal Coaxial Cable 200
Minimum Order Quantity: 5 KM
Packaging Details: 500M, 1000M, Wooden Drum, Pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: Bare Copper Dielectric: Foamed PE
1st Shield: Bonded AL-Foil 2nd Shield: Tinned Copper Braiding
Jacket: PVC Or PE Package: 500M, 1000M, Wooden Drum, Pallet
Highlight:

trunk coaxial cable

,

50 ohm coaxial cable


Product Description



Low Loss 200 with TC Braiding PVC Jacket 50 Ohm Signal Coaxial Cable for GPS





Quick Detail:

  • Signal Coaxial Cable
  • Low Loss 200 Type
  • 50 Ohm Communication Cable
  • 1.12mm Bare Copper
  • Tinned Copper Braiding
  • Quality PVC Jacket
  • Designed for Flexibility, Low Loss, RF Shielding
  • ISO, CE, RoHS, UL
  • MOQ: 5 KM



Description:



KT0502 Low Loss 200 50 Ohm Coaxial Cable,1.12mm Bare Copper Conductor

is a low loss, braided coaxial cable offers similar performance compared to corrugated

copper products but with higher flexibility and simplified connectorization.

Can be used in almost any application where handling characteristics, improved shielding

and low loss is required. LMR 200 is packed in 500FT/1000FT plastic/wooden spool,

and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, Zion communication’S price of 200

is not high although our quality is really high.





Applications:



Low loss at high frequency for radiocommunication and amateur radio.



KT0502 Low Loss 200 50 Ohm Coaxial Cable, 1.12mm Bare Copper Conductor
Construction Parameters:
  Inner Conductor 1.12mm      Bare Copper
  Dielectric 2.95mm            Foamed PE
  First Shield                Bonded AL-Foil
  Second Shield Nom. 3.66mm        Tinned Copper Braid
  Jacket 4.95mm                        PVC / PE

Electrical Characteristics:
  Capacitance 80.4 pF/m
  Impedance 50 Ω
  Velocity of Propagation  0.83
  Shielding Effectiveness(>dB) 90
  Min.Bend Radius(mm) 25
  Operating Temp Range  (PVC) -25 ℃ to 70℃
  Operating Temp Range  (PE) -40 ℃ to 80℃
  RoHS YES

Attenuation(20℃):
Frequency (MHZ)             Attenuation (dB/100m) Avg.Power(KW)
30 5.8 0.91
50 7.5 0.70
150 13.1 0.40
220 15.9 0.33
450 22.8 0.23
900 32.6 0.16
1500 42.4 0.12
1800 46.6 0.11
2000 49.3 0.11
2500 60.2 0.10
5800 86.5 0.06

Order Informations:
  Marking Zion communication LMR 200 COAXIAL CABLE  XXX M
  Inner Package 100M/200M/300M/500FT/1000FT
  Outer Package Carton, Color Box, Pallet (or Per customer's request)
  Delivery time Normally 15 days after received the deposit.
  More informations  please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery
