| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | RG Coax Cable |
| Minimum Order Quantity: | 1 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | Bare Copper | Dielectric: | Solid PE |
|---|---|---|---|
| Shield: | Tinned Copper | Jacket: | PVC |
|

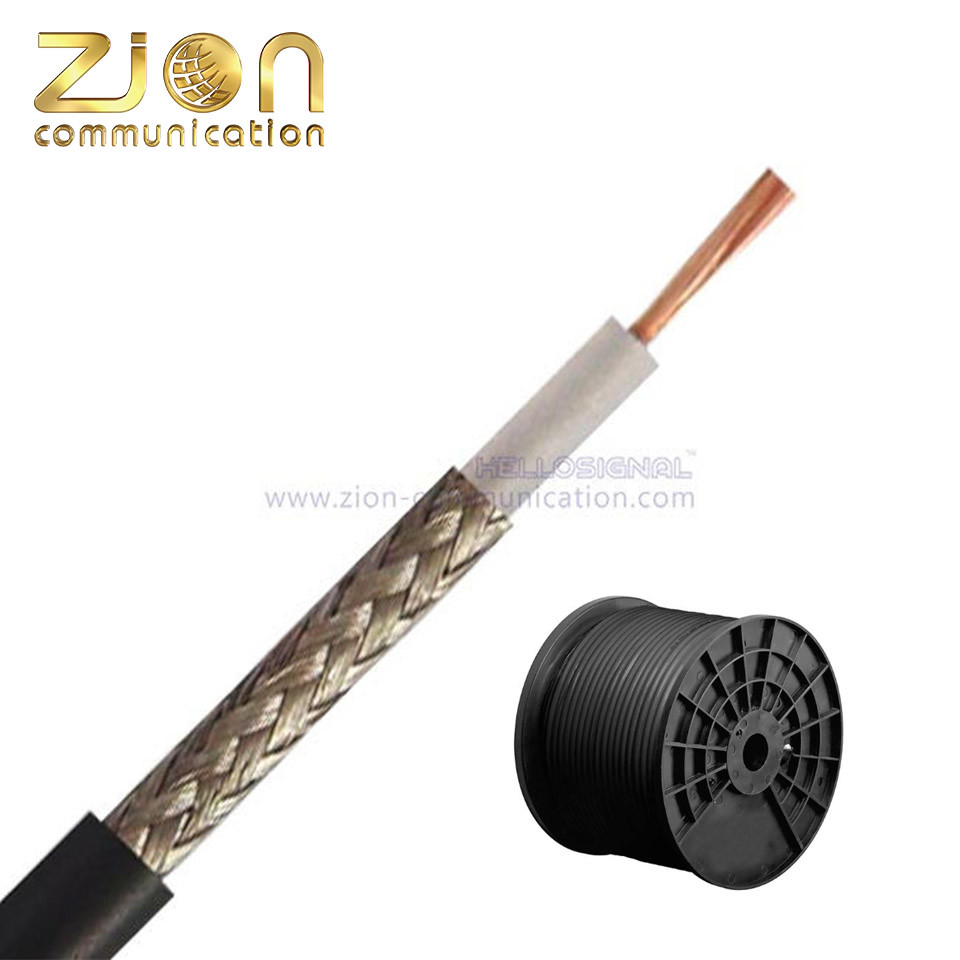

50 Ohm coaxial Cable NO.7101210 |
||||
| Construction Parameters: | ||||
| Inner Conductor | 7×0.17mm CCS | |||
| Dielectric | 1.52mm Solid PE | |||
| Shield 1 | Nom. 1.90mm Tinned Copper | |||
| Jacket | 2.79mm PVC | |||
| Jacket Thickness | ||||
| Application | ||||
| Electrical Characteristics: | ||||
| Capacitance | 101.05 pF/m | |||
| Impedance | 50 Ω | |||
| Velocity of Propagation | 0.66 | |||
| Max Operating Voltage | 1500 VMS | |||
| Max Operating Frequency | 1000 MHz | |||
| Bending Radius | 10 mm | |||
| Mechanical and Envrionmental Properties | ||||
| Cable bend radius | ||||
| Operating Temp Range | -20 ℃ to 80℃ | |||
| Cable diamensions | 2.79mm | |||
| Cross Section | ||||
 |
||||
| Attenuation(20℃): | ||||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
| 100 | 27.60 | |||
| 400 | 55.80 | |||
| 1000 | 89.90 | |||
| Order Informations: | ||||
| Marking | HELLOSIGNAL RG174 CCS 50 Ohm COAXIAL CABLE 7101210×××M/FT |
|||
| Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
| Delivery time | Normally 25 days after received the deposit. | |||
| Brand | HELLOSIGNAL® OR OEM | |||
