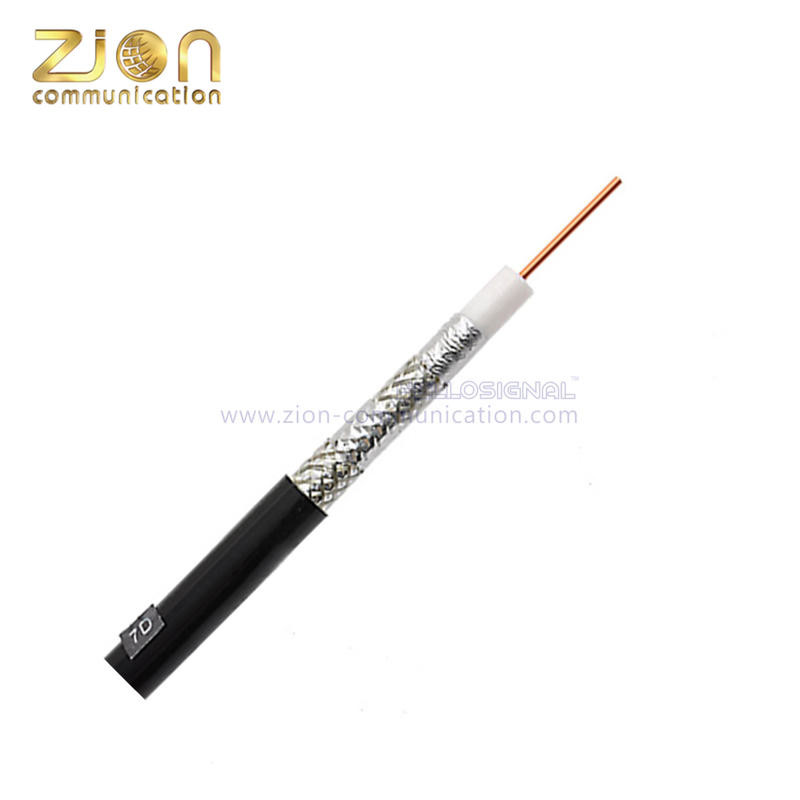

7D-FB BC TC PE low loss RF coaxial cable 7.30mm Foamed PE

Basic Information

Place of Origin:	China
Brand Name:	Zion communication OR OEM
Certification:	UL, ETL, CE,CPR, RoHS
Model Number:	D-FB Coax Cable

Minimum Order Quantity:	10 KM
Packaging Details:	100M, 300M, Wooden Reel, Carton
Delivery Time:	25 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000KM / Month

Get Best Price Contact Now

Detail Information

Inner Conductor:	2.60mm Bare Copper	Dielectric:	7.30mm Foamed PE
Shield:	Bonded AL-Foil	Outer Conductor:	Nom. 8.00mm Tinned Copper Braid 86% Coverage
Jacket:	10.30mm PE Black

Product Description

7D-FB BC TC PE 50ohm Coaxial Cable NO.7101405

Construction Parameters:
Inner Conductor	2.60mm Bare Copper
Dielectric	7.30mm Foamed PE
Shield	Bonded AL-Foil
Outer Conductor	Nom. 8.00mm Tinned Copper Braid 86% Coverage
Jacket	10.30mm PE Black

Electrical Characteristics:
Capacitance	84 pF/m
Impedance	50 Ω
Velocity of Propagation	82%
DC Test Voltage	2500 V
Jacket spark	4000 (V.RMS)
Shielding Effectiveness	≥ 80 dB
Return Loss	≥ 20.8 dB
RoHS	Yes


Mechanical and Environmental Properties:
Min. Cable Bend Radius	35mm
Operating Temp. Range	-40 ℃ to +80℃
Installation Temp. Range	-30 ℃ to +60℃
Tensile Strength	73 kg



Attenuation(20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
150		5.20
280		7.20
350		8.30
400		8.80
800		12.60
900		13.80
1200		16.60
1500		19.00
1900		22.20
2000		23.00
2400		25.50
3000		29.30

Order Informations:
Marking	HELLOSIGNAL 7D-FB 50 Ohm COAXIAL CABLE ×××M
Package	Inquired Length on Roll, Wooden Spool, Pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM
