| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | UL, ETL, CE,CPR, RoHS |
| Model Number: | D-FB Coax Cable |
| Minimum Order Quantity: | 10 KM |
| Packaging Details: | 100M, 300M, Wooden Reel, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Inner Conductor: | 3.50mm Bare Copper | Dielectric: | 10.00mm Foamed PE |
|---|---|---|---|
| Shield: | Bonded AL-Foil | Outer Conductor: | Nom. 10.80mm Tinned Copper Braid |
| Jacket: | 13.00mm PE Black |

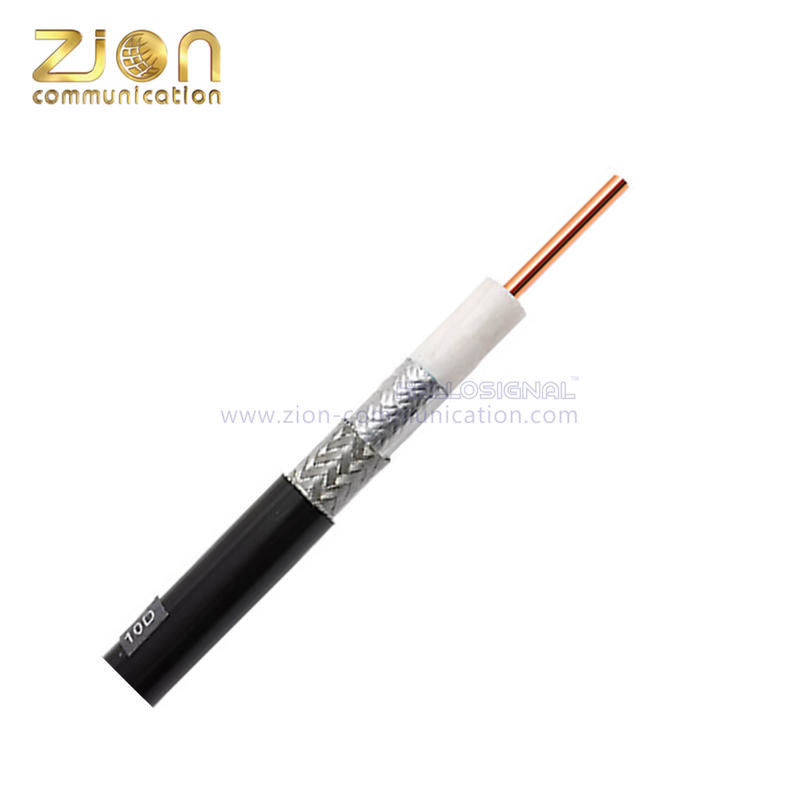

| 10D-FB BC TC PE NO.7101411 |
||||||||
| Construction Parameters: | ||||||||
| Inner Conductor | 3.50mm Bare Copper | |||||||
| Dielectric | 10.00mm Foamed PE | |||||||
| Shield | Bonded AL-Foil | |||||||
| Outer Conductor | Nom. 10.80mm Tinned Copper Braid | |||||||
| Jacket | 13.00mm PE Black | |||||||
| Jacket Thickness | ||||||||
| Application | ||||||||
| Electrical Characteristics: | ||||||||
| Capacitance | 82 pF/m | |
||||||
| Impedance | 50 Ω | |||||||
| Velocity of Propagation | 83% | |||||||
| Inner Conductor DCR | 1.8 Ω/km | |||||||
| Outer Conductor DCR | 6.4 Ω/km | |||||||
| Shielding Effectiveness | ≥ 80 dB | |||||||
| Return Loss | ≥ 20 dB | |||||||
| RoHS | Yes | |||||||
| Mechanical and Environmental Properties: | ||||||||
| Cable Bend Radius | 65mm | |||||||
| Operating Temp Range | -40 ℃ to +85℃ | |||||||
| Cable Diamensions | 13.00mm | |||||||
| Attenuation(20℃): | ||||||||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |||||||
| 150 | 4.10 | |||||||
| 280 | 5.70 | |||||||
| 350 | 6.40 | |||||||
| 400 | 6.90 | |||||||
| 800 | 10.30 | |||||||
| 900 | 11.00 | |||||||
| 1200 | 13.10 | |||||||
| 1500 | 15.00 | |||||||
| 1900 | 17.40 | |||||||
| 2000 | 18.00 | |||||||
| 2500 | 20.50 | |||||||
| Order Informations: | ||||||||
| Marking | HELLOSIGNAL 10D-FB 50 Ohm COAXIAL CABLE ×××M | |||||||
| Package | Inquired Length on Roll, Wooden Spool, Pallet … | |||||||
| Delivery time | Normally 25 days after received the deposit. | |||||||
| Brand | HELLOSIGNAL® OR OEM | |||||||
