Dual RG6 CATV Coaxial Cable Standard Shield with Steel Messenger for CATV System

Basic Information
Place of Origin: China
Brand Name: Zion communication OR OEM
Certification: ISO, CE, RoHS, UL
Model Number: RG6 CATV Coaxial Cable Dual
Minimum Order Quantity: 30 KM
Packaging Details: 305M, 1000FT, Wooden Reel, Carton
Delivery Time: 25 working days
Payment Terms: T/T, L/C
Supply Ability: 1000KM / Month
Detail Information
Conductor: CCS Dielectric: Foamed PE
Shield 1: AL-Foil Shield 2: Aluminum Braiding
Jacket: PVC Color: Black
Package: 305M, 1000FT, Wooden Reel, Carton
Highlight:

quad shielded coaxial cable

,

rg11 coax cable


Product Description





Dual RG6 CATV Coaxial Cable Standard Shield with Steel Messenger for CATV System



Visit our official website to learn more about CATV Coaxial Cable

https://www.zion-communication.com/catv-coaxial-cable-products-catalog.html





Quick Detail:



  • Dual RG6 CATV Coaxial Cable
  • 18 AWG CCS Conductor
  • 60% AL Braiding
  • Foamed PE Insulation
  • 75 Ohms
  • Bonded AL-Foil
  • Zinned Steel Messenger
  • Tested to 3GHz
  • ISO,CE,RoHS,UL
  • 305M, 1000FT, Wooden Reel, Carton





Description:



KT0685 RG6 Dual CATV COAXIAL CABLE 18AWG CCS 60% B.AL Braiding PVC Messenger

 is a specific type of CATV coaxial cable , RG 6(Produced by Zion communication) is perfect for

digital Cable and Satalite, Attenas, and communication systems. RG 6 has a  characteristic

impedance of 75 ohms. Zion communication using best raw material and best worker to produce

RG 6 to meet high performance in practical application. RG 6 is packed in 300M/1000FT/

1000M wooden spool, and will be layed on pallet to protect the spool and easier carry.

Because of good managing methods, Zion communication’s price of RG 6 is not high although

our quality is really high.





Applications:



Suitable for RF Signal Transmission

■ CATV

■ MATV

■ CCTV

■ Local Area Network

■ Digital Video

■ Antennas





KT0685 Dual RG6 CATV COAXIAL CABLE 18AWG CCS 60% Bonded AL Braiding PVC Messenger

Construction Parameters:
  Inner Conductor 0.040"/1.02mm/18AWG Copper Clad Steel
  Dielectric 0.180"/4.57mm Foamed PE          Gas Expanded Polyethylene
  Shield 1 0.187"/4.75mm  Bonded Aluminum Polyproylene
  Shield 2 60% coverage   Aluminum braid wire
  Jacket 0.268"±0.006"/6.81±0.15mm  PVC
  Jacket Thickness 0.030"/0.76mm
  Messenger 0.072"/1.83mm
  Minimun Breaking Strength 365lbs./166kg
  Application For Use in Longer CATV Run Lengths

Electrical Characteristics:
  Inner Conductor Resistance The Max. at 20℃ shall be   <  87 Ω/km ; < 26.6Ω/1000ft
  Capacitance 52 ±3 pF/m            15.9 ±0.9 pF/ft
  Impedance 75 ± 3 Ω
  Return loss  between 5 and 1000MHz: > 22dB
  Velocity of Propagation  0.85
  Sparker Test (VAC) 4

Attenuation(20℃):
Frequency
           (MHZ)
Max Attenuation
(dB/100ft)
Max Attenuation
(dB/100m)
5 0.58  1.90
55 1.60  5.25
83 1.95  6.40
187 2.85  9.35
211 3.05  10.00
250 3.30  10.82
300 3.55  11.64
350 3.85  12.63
400 4.15  13.61
450 4.40  14.43
500 4.66  15.29
550 4.90  16.08
600 5.10  16.73
750 5.65  18.54
865 6.10  20.01
1000 6.55  21.49

Mechanical and Envrionmental Properties :
  Cable bend radius 10 times the cable diameter
  Operating Temp Range  (PVC) -20 ℃ to 60℃
  Cable diamensions 0.268"±0.006"/6.81±0.15mm PVC

Order Informations:
  Marking

Zion communication KT0685 RG6 Dual 60% Bonded PVC Messenger CATV COAXIAL

CABLE  ×××M/FT

  Package 500FT/Pull Box, 1000FT/Wooden Spool/Pallet
  Delivery time Normally 25 days after received the deposit.
  More informations Please contact with us.





Competitive Advantage:



1,  From raw materials to final products, we perform intense quality checks to maintain our product quality:

     A, Incoming material inspected by QC.

     B, Manufacturing Process Control

     C: Workers trained daily/weekly/monthly

     D: Work instructions manual at each work station

     E: 5S system implemented

     F: Machine maintenance procedure

     G: Quality Control and Final Inspection

         The QC staff will check the material, process product

         and final product according to the specification or test procedure.



2, Our R&D efforts center on reinforcing and developing element technologies

    needed to support the future growth and success for customers and Zion communication.



3, We know customers have urgent needs.

    We are skilled at effective communication to interact with customers.

    In order to provide prompt service, we can answer for you 7*24 hours.



4, We can Quickly and professionally answer for the inquire



5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us



6, Intime delivery

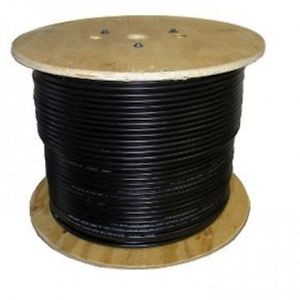

Dual RG6 CATV Coaxial Cable Standard Shield with Steel Messenger for CATV System 0
